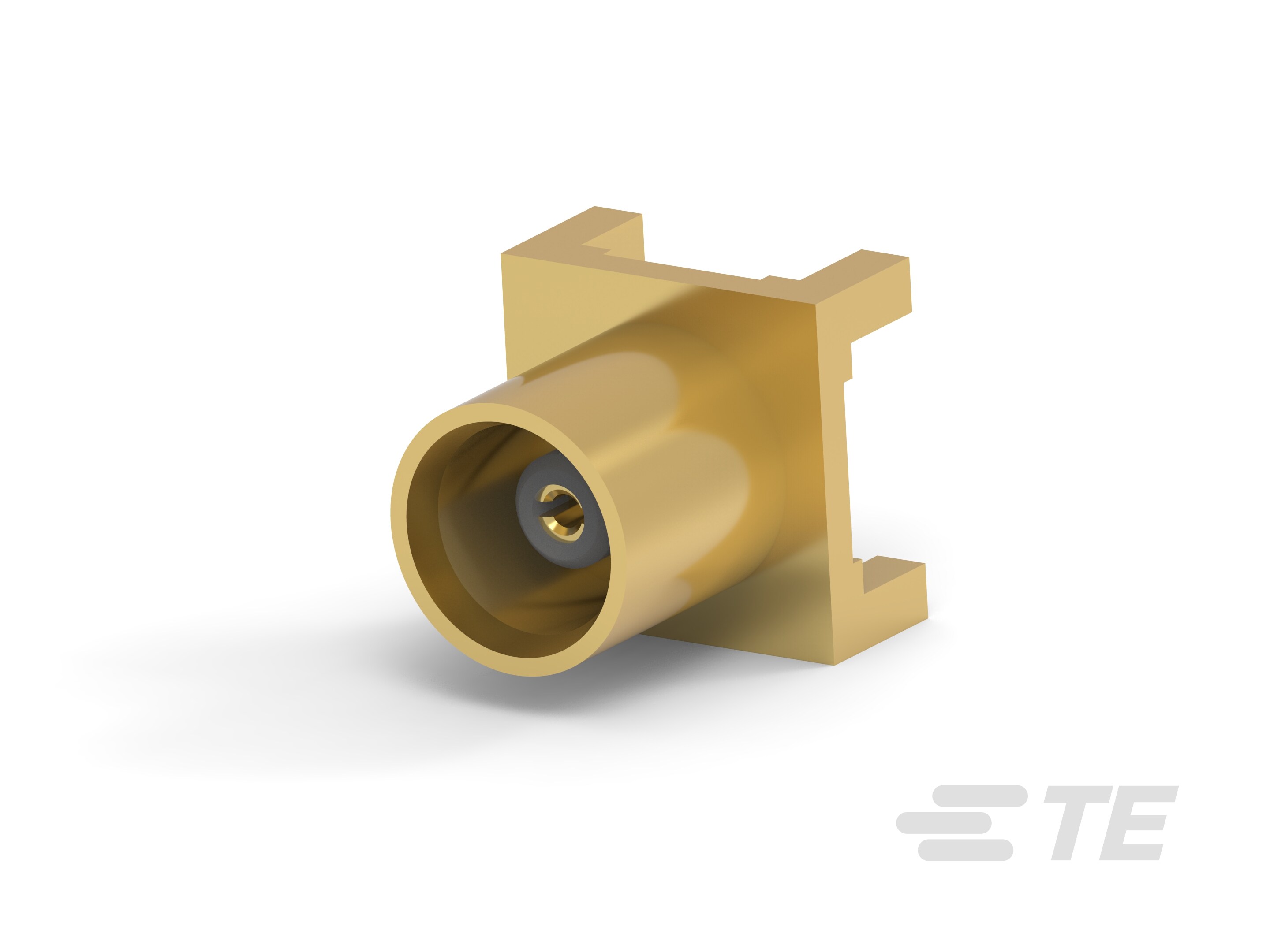

Product Type Features
-
Connector Shape
Circular, Rectangular
-
RF Interface
MCX
-
RF Connector Style
Jack
-
Connector System
Cable-to-Board, Cable-to-Cable
-
Sealable
No
-
Connector & Contact Terminates To
Printed Circuit Board
Configuration Features
-
PCB Mount Orientation
Vertical
-
Number of Positions
1
-
Number of Coaxial Contacts
1
Electrical Characteristics
Body Features
-
Body Material
Brass
-
Body Material Finish
Bright, Plated
-
Body Plating Material
Gold, Nickel, Tin
Contact Features
-
RF Connector Center Contact Plating Thickness (µin)
1397
-
RF Connector Center Contact Underplating Material
Copper, Nickel
-
RF Connector Contact Configuration
Captivated Contacts
-
RF Connector Center Contact Plating Material
Gold (Au)
-
RF Connector Center Contact Material
Beryllium Copper, Brass
Termination Features
-
Termination Method to PCB
Surface Mount, Through Hole - Solder
-
Termination Post & Tail Length (mm)
.5, 1.73, 2.79, 2.92, 3.94
-
Termination Post & Tail Length (in)
.019, .068, .109, .115, .155
Mechanical Attachment
-
PCB Mount Retention
With, Without
-
RF Connector Coupling Mechanism
Push-On, Snap-On, Threaded
-
Connector Mounting Type
Board Mount, Panel Mount
-
RF Contact Captivation Method
Mechanical
-
Detent
Without
Dimensions
-
Profile Height from PCB (mm)
5.35, 5.36, 5.38, 5.9, 6.02, 6.4
-
Profile Height from PCB (in)
.211, .212, .231, .237, .251
-
Product Length
5.9 mm [ .231 in ]
-
RF Connector Mated Outer Diameter (Approximate) (mm)
3.07, 3.48, 4.5, 5.08
-
RF Connector Mated Outer Diameter (Approximate) (in)
.121, .137, .177, .2
Usage Conditions
-
Operating Temperature Range
-65 – 165 °C [ -85 – 329 °F ]
Operation/Application
-
Operating Frequency (GHz)
4, 6
Packaging Features
-
Packaging Quantity
200, 900
-
Packaging Method
Bag, Carton, Package, Reel, Tape & Reel
Other
-
Dielectric Material
PTFE, PTFE Fluorocarbon, TFE Fluorocarbon
Reference Number
-
TE Internal Number
CAT-884-MCXMV50
