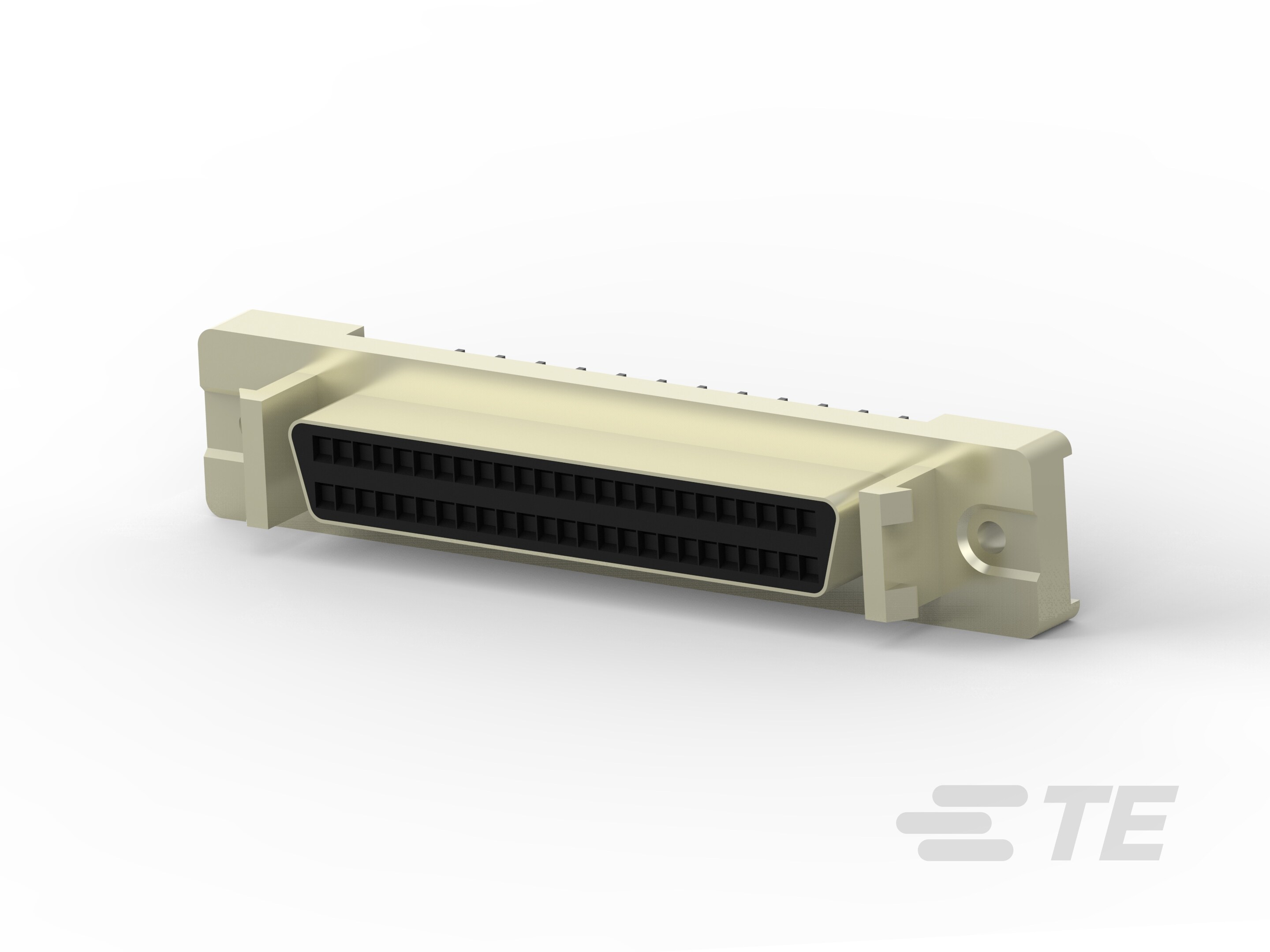

D-Sub Receptacle Assembly: Vertical, Action Pin, 1.27mm

D-Sub Receptacle Assembly: Vertical, Action Pin, 1.27mm-CAT-020-DRAVAP127
PCB D-Sub AMPLIMITE receptacle assembly with action pin contact, having a centerline pitch of 1.27mm and vertical PCB mount orientation. Used for signal circuit application and has an operating temperature range of -55 – 105 DEGC.
More Less
Connect with Us

Product Features

  • Number of Positions : 20 | 26 | 50 | 68 | 100 | 120

  • Connector & Housing Type : Receptacle

  • Connector System : Cable-to-Board

  • Connector Mounting Type : Board Mount | Panel Mount

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Shell Material Configuration  Full Metal Shell

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Number of Positions  20 | 26 | 50 | 68 | 100 | 120

  • Number of Rows  2 | 4

  • PCB Mount Orientation  Vertical

Body Features

  • Primary Product Color  Black

  • Shell Plating Material  Nickel over Copper

  • Connector Profile  Standard

Contact Features

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Underplating Material  Nickel | Palladium Nickel

  • Contact Mating Area Plating Material  Gold (Au) | Gold or Gold Flash

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin | Tin-Lead | Tin-Lead over Nickel | Tin over Nickel

  • Contact Current Rating (Max) (A) .4 | .5 | 1

  • Contact Options  Installed

Termination Features

  • Square Termination Post & Tail Dimension  .38 mm [ .015 in ]

  • Rectangular Termination Post & Tail Width  .4 mm [ .015 in ]

  • Termination Method to PCB  Through Hole - Press-Fit | Through Hole - Solder

  • Rectangular Termination Post & Tail Thickness  .38 mm [ .014 in ]

  • Termination Post & Tail Length (mm) 4.39 | 7.11

  • Termination Post & Tail Length (in) .173 | .28

Mechanical Attachment

  • Mounting Hole Diameter (in) .109 | .125

  • PCB Mount Alignment  Without

  • Mounting Hole Diameter (mm) 2.77 | 3.18

  • Mounting Hole Diameter (in) .109 | .125

  • Mating Alignment  With | Without

  • Mounting Feature Material  Zinc

  • Mounting Feature Plating Material  Nickel over Copper

  • Mating Alignment Type  Rails

  • Mating Alignment  With | Without

  • Connector Mounting Type  Board Mount | Panel Mount

  • PCB Mount Retention  With

  • PCB Mount Retention Type  Action/Compliant Tail | Mounting Hole | Mounting Screw

  • Mating Retention  With | Without

  • Mating Retention Type  Latch | Screwlocks

Housing Features

  • Housing Material  Polyphthalamide | Thermoplastic

  • Shell Material  Carbon Steel

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Dimensions

  • PCB Thickness (Recommended) (mm) 1.57 – 2.36 | 3.18 – 5.08

  • PCB Thickness (Recommended) (in) .062 – .093 | .125 – .2

  • Row-to-Row Spacing  2.54 mm [ .1 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  Yes

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  LR-86179-1 | UL E28476

Packaging Features

  • Packaging Method  Tube

  • Packaging Quantity  5 | 6 | 8 | 10 | 14 | 16

Reference Number

  • TE Internal Number CAT-020-DRAVAP127
