RV8140-25-S11

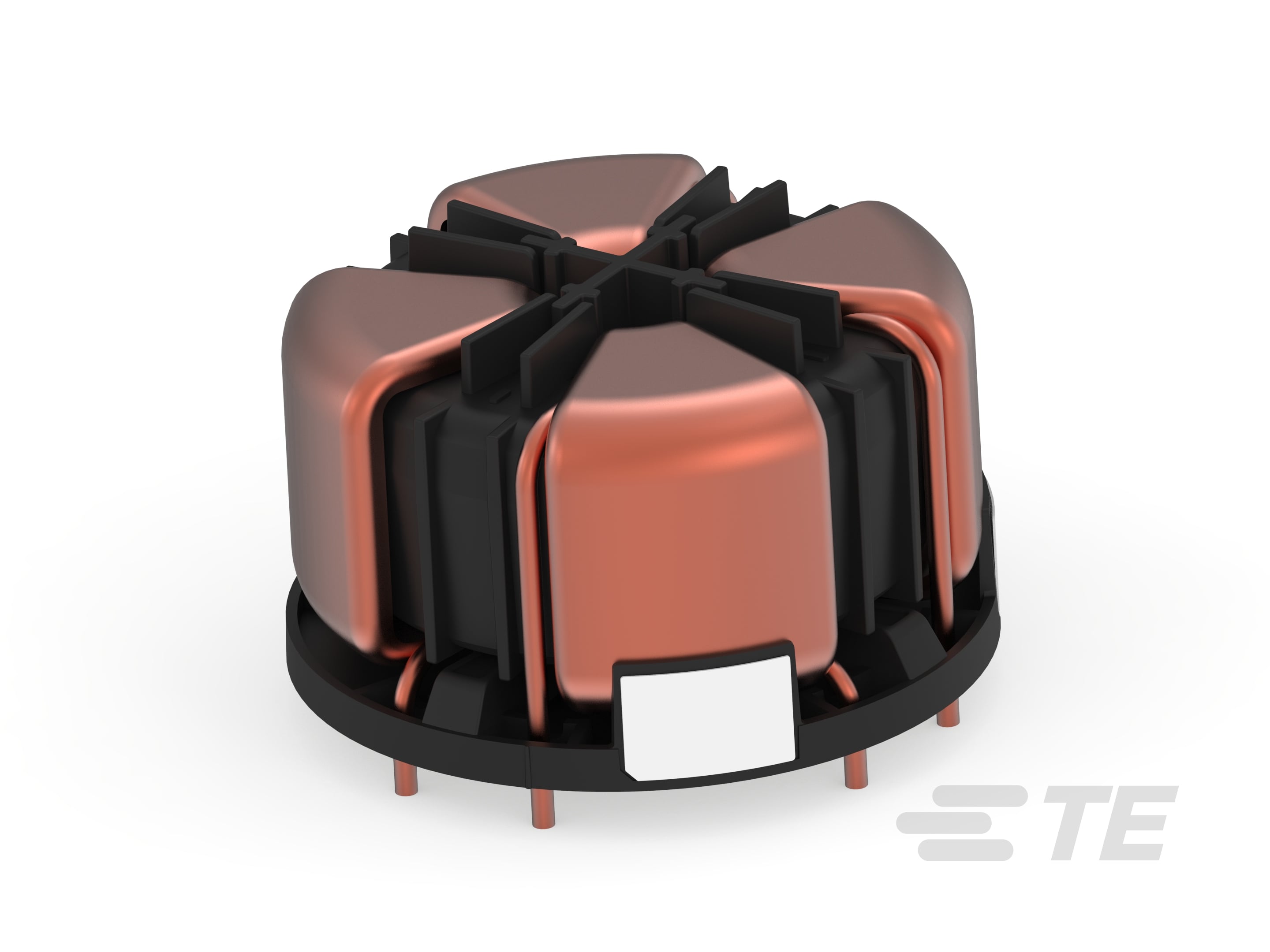

530 VDC, 25 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RV-Series, EMC Chokes
RV8140-25-S11
530 VDC, 25 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RV-Series, EMC Chokes
-
- Schaffner
- Schaffner RV-Series
- TE Internal #: 823209-SF
- TE Internal Description: RV8140-25-S11
- All RV (80)
-
Operating Voltage (Max) (VDC): 530
-
Current Rating (Max) (A): 25
-
Input Termination Type : PCB Terminal
-
Output Termination Type : PCB Terminal
-
Pollution Degree : PD2
