FN3280H-16-29-R69

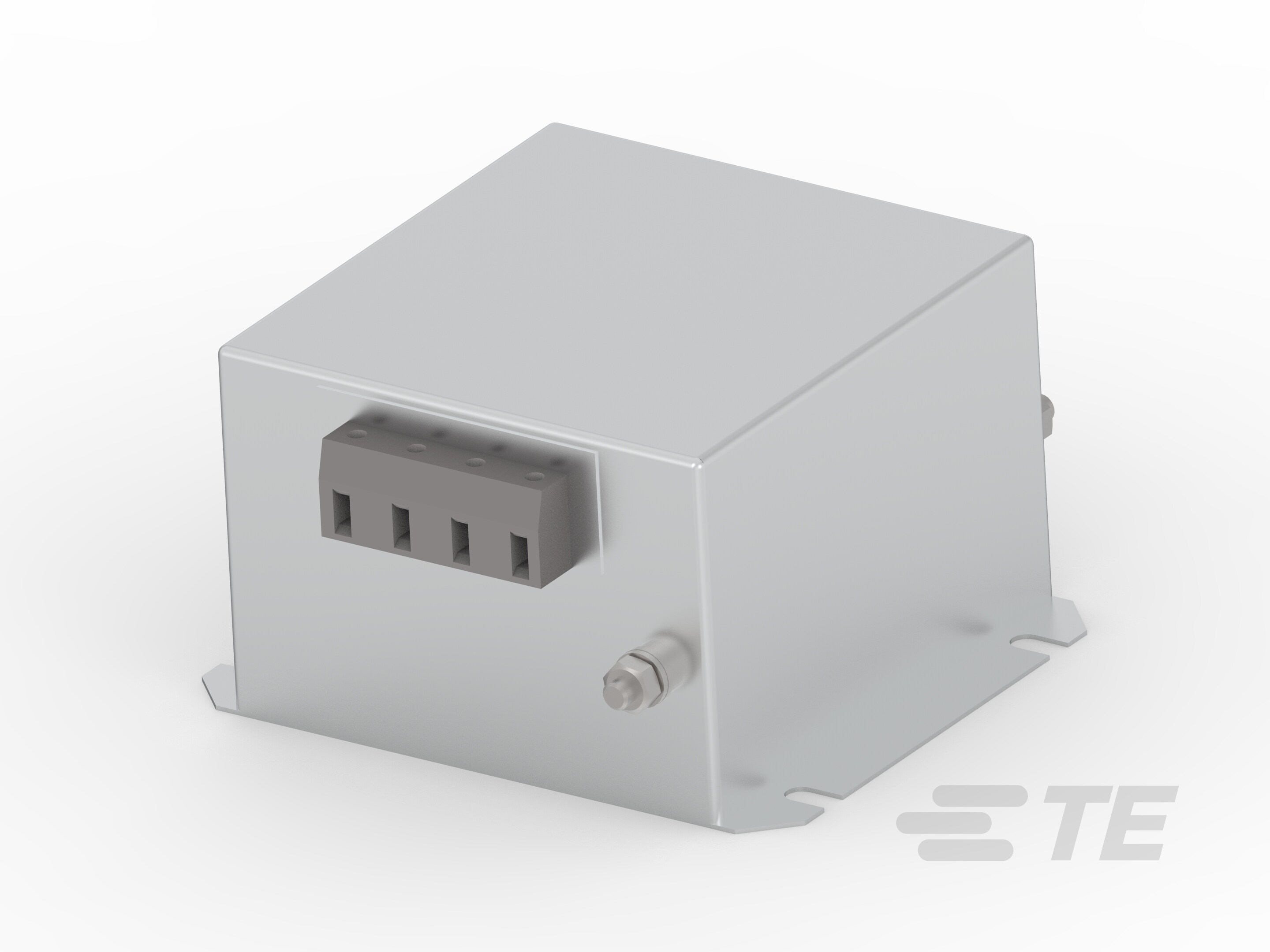

16 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, DELTA (3 wire + ground), 520 VAC, Chassis Mount, Schaffner FN3280
FN3280H-16-29-R69
16 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, DELTA (3 wire + ground), 520 VAC, Chassis Mount, Schaffner FN3280
-
- Schaffner
- Schaffner FN3280
- TE Internal #: 822025-SF
- TE Internal Description: FN3280H-16-29-R69
- All 3-Phase Filters, High-End Line Filter for Industrial Machinery and Equipment (25)
-
Current Rating (A): 16
-
Input Termination Type : Terminal Block
-
Output Termination Type : Terminal Block
-
Wiring Configuration : DELTA (3 wire + ground)
-
Operating Voltage (VAC): 520
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_822025-SF_B.pdf 3D
- Customer View Model ENG_CVM_CVM_822025-SF_B.3d_stp.zip English
- ENG_CVM_CVM_822025-SF_B.2d_dxf.zip English
- ENG_CVM_CVM_822025-SF_B.3d_igs.zip English
Datasheets & Catalog Pages
- High-end Line Filter for Machinery and Equipment ENG_DS_3-Phase_Filters_FN3280_A1.pdf English
Agency Approvals
- UKCA_FN3256H_FN3280H_FN3297_FN3298 ENG_AAD_1067476_UKCA_FN3256H_FN3280H_FN3297_FN32_D.pdf English
- CE Declaration of Conformity ENG_AAD_1067460_CE_FN3256H_FN3280H_FN3297_FN3298_D.pdf English
