Name: RN143-6-02-1M8
Brand: Schaffner

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Input Termination Type : PCB Terminal
Output Termination Type : PCB Terminal

Electrical Characteristics

Overvoltage Category : II
Operating Voltage (Max) (VDC): 300
Current Rating (Max) (A): 6

Body Features

Product Weight : 42 g [ 1.48 oz ]
Product Orientation : Horizontal

Mechanical Attachment

Product Mount Type : Board Mount

Dimensions

Product Height : 19.7 mm [ .77 in ]
Product Length : 33.1 mm [ 1.3 in ]
Product Width : 32.5 mm [ 1.27 in ]

Usage Conditions

Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

Cooling Method : Natural Convection

Industry Standards

Certified To : IEC/EN 60938-1, UL 1283
Pollution Degree : PD2
IP Rating : IP00
UL Flammability Rating : UL 94V-0

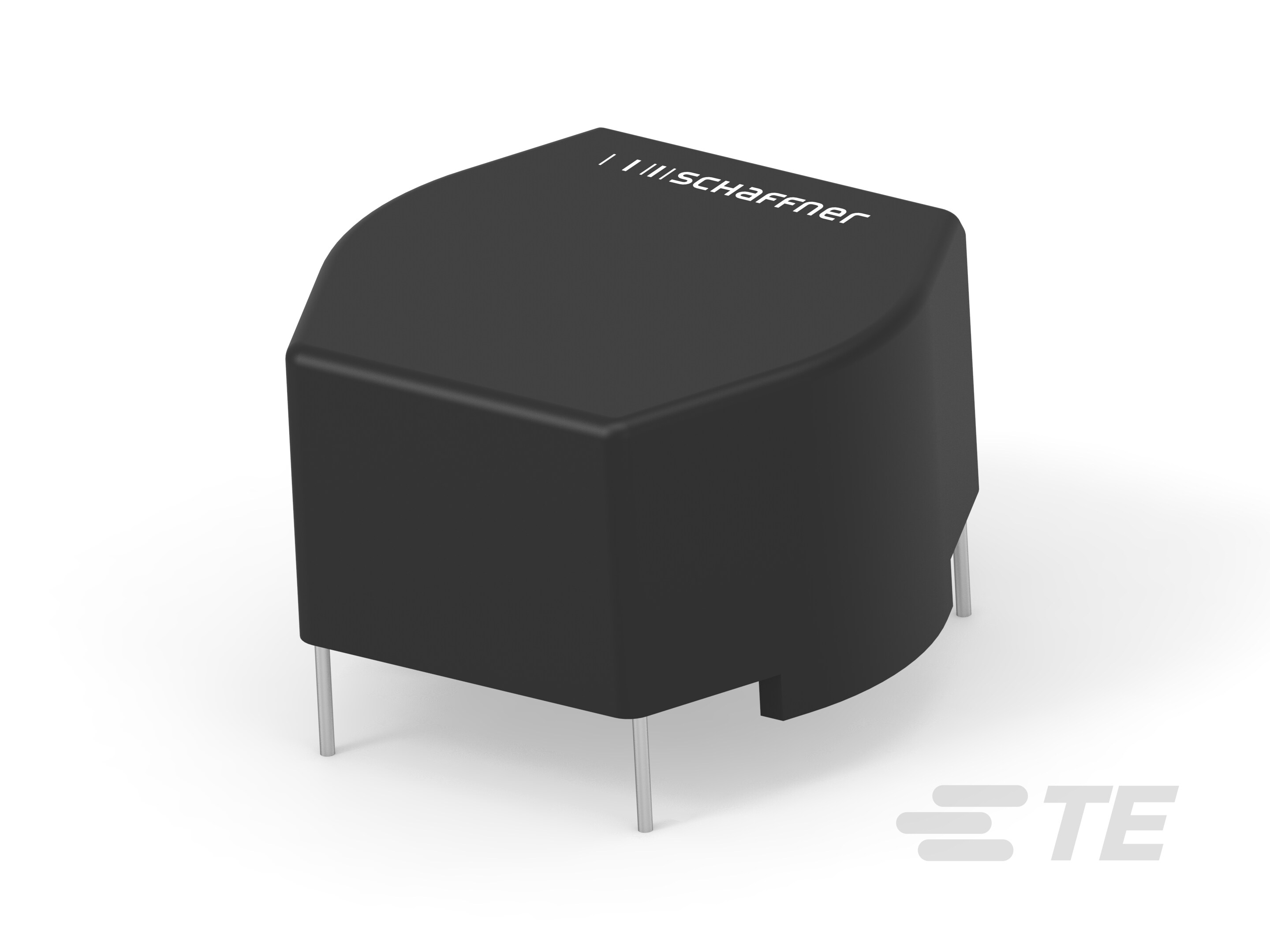

RN143-6-02-1M8

300 VDC, 6 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RN-Series, EMC Chokes

RN143-6-02-1M8

300 VDC, 6 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RN-Series, EMC Chokes

Operating Voltage (Max) (VDC): 300

Current Rating (Max) (A): 6

Input Termination Type : PCB Terminal

Output Termination Type : PCB Terminal

Pollution Degree : PD2
