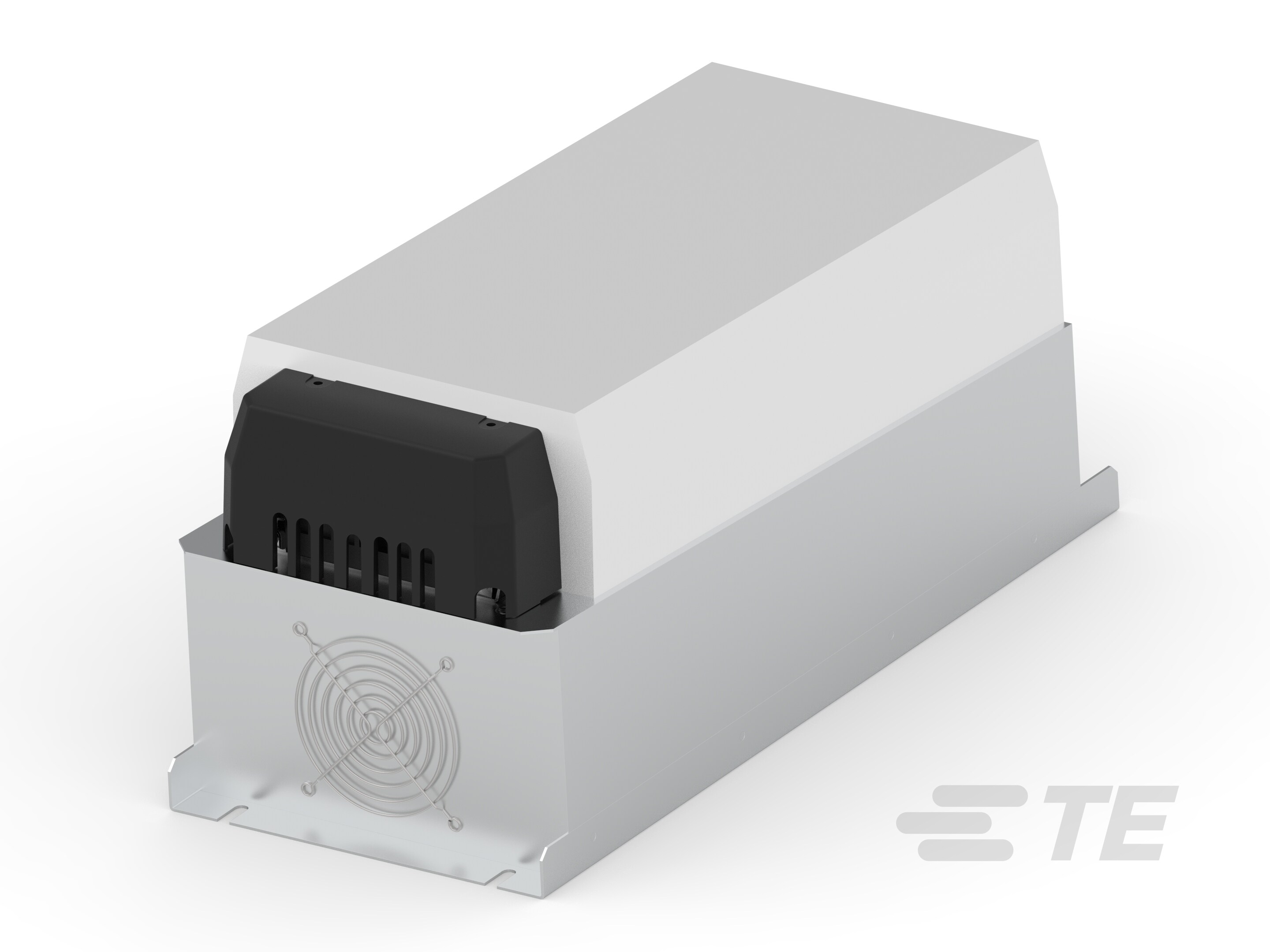

Name: FN3450-11-112-E2XXJRX
Brand: Schaffner

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Input Termination Type : Ring Terminal
Output Termination Type : Ring Terminal

Electrical Characteristics

Short Circuit Current Rating (kA): 100
Overvoltage Category : III
Operating Voltage (Max) (VAC): 500
Motor Drive Input Current (A): 16
Rated Load Power (kW): 11

Body Features

Product Weight (g): 230000

Mechanical Attachment

Product Mount Type : Wall Mount

Dimensions

Product Height : 221 mm [ 8.7 in ]
Product Length : 491 mm [ 19.33 in ]
Product Width : 210 mm [ 8.26 in ]

Usage Conditions

Compatible with Motor Drive Type : 6 Pulse Diode Rectifier
Rated Voltage & Power Efficiency : >98%

Operation/Application

Operating Altitude (Max) (m): 2000
Target THDi @ Rated Power (%): <5
Cooling Method : Natural Convection

Industry Standards

Certified To : EN 61558-2-20, UL/EN 61800-5-1
Pollution Degree : PD3
UL Flammability Rating : UL 94V-2
IP Rating : IP20

Other

Frame Size Code : C

FN3450-11-112-E2XXJRX

500 VAC, 16 A Motor Drive Input, 11 kW Rated Load, PD3 Pollution Degree, Ring Terminal, UL 94V-2, Schaffner Ecosine Evo, Passive Harmonic Filters

FN3450-11-112-E2XXJRX

500 VAC, 16 A Motor Drive Input, 11 kW Rated Load, PD3 Pollution Degree, Ring Terminal, UL 94V-2, Schaffner Ecosine Evo, Passive Harmonic Filters

Operating Voltage (Max) (VAC): 500

Motor Drive Input Current (A): 16

Rated Load Power (kW): 11

Pollution Degree : PD3

Input Termination Type : Ring Terminal

Documents

CAD Files

Datasheets & Catalog Pages

Agency Approvals

Product Change Notification

Features

Product Type Features

Input Termination Type : Ring Terminal

Output Termination Type : Ring Terminal

Electrical Characteristics

Short Circuit Current Rating (kA): 100

Overvoltage Category : III

Operating Voltage (Max) (VAC): 500

Motor Drive Input Current (A): 16

Rated Load Power (kW): 11

Body Features

Product Weight (g): 230000

Mechanical Attachment

Product Mount Type : Wall Mount

Dimensions

Product Height : 221 mm [ 8.7 in ]

Product Length : 491 mm [ 19.33 in ]

Product Width : 210 mm [ 8.26 in ]

Usage Conditions

Compatible with Motor Drive Type : 6 Pulse Diode Rectifier

Rated Voltage & Power Efficiency : >98%

Operation/Application

Operating Altitude (Max) (m): 2000

Target THDi @ Rated Power (%): <5

Cooling Method : Natural Convection

Industry Standards

Certified To : EN 61558-2-20, UL/EN 61800-5-1

Pollution Degree : PD3

UL Flammability Rating : UL 94V-2

IP Rating : IP20

Other

Frame Size Code : C
