FN3100-200-40

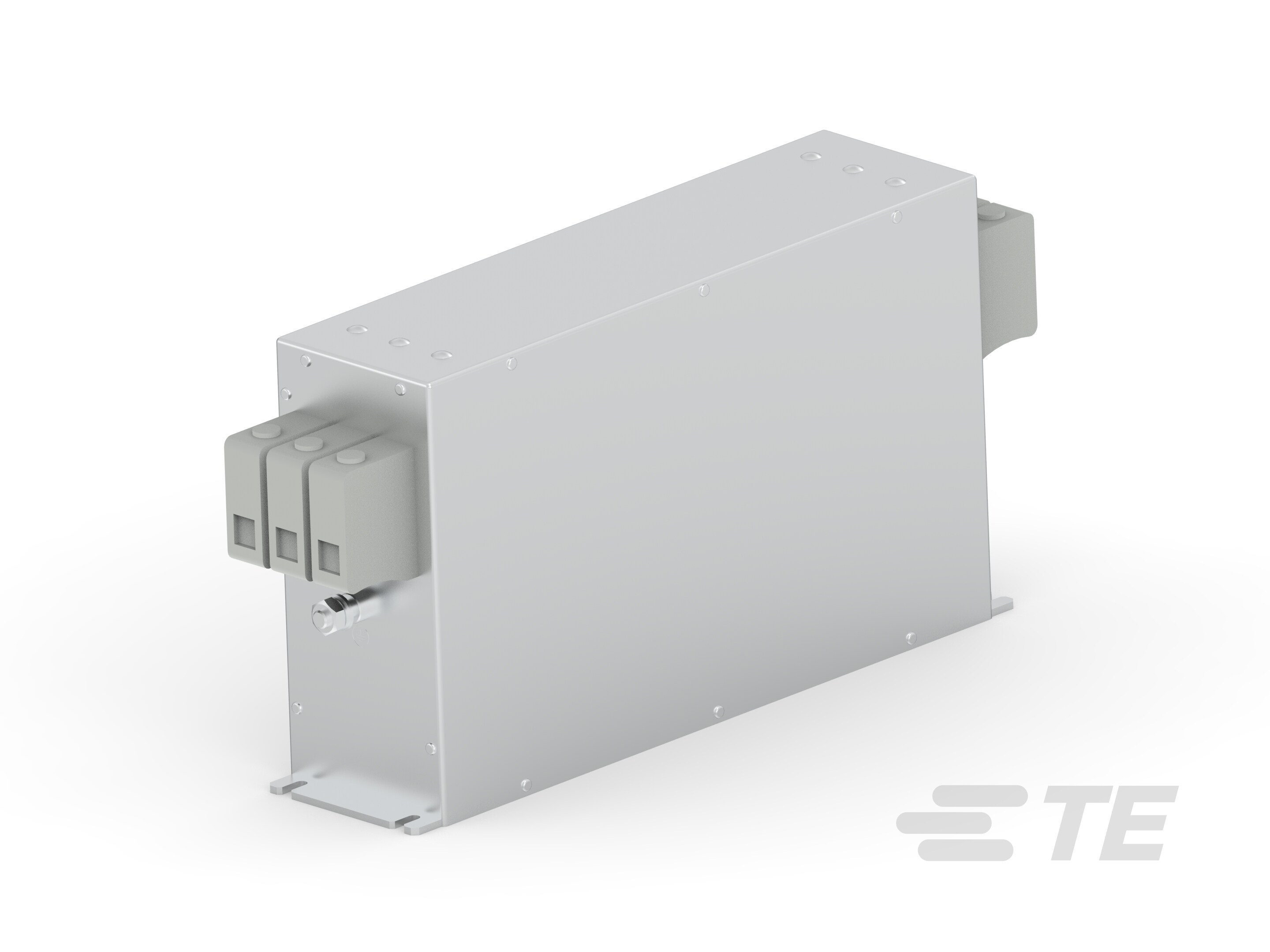

200 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, Three Phase, 520 VAC, Chassis Mount, Schaffner FN3100
FN3100-200-40
200 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, Three Phase, 520 VAC, Chassis Mount, Schaffner FN3100
-
- Schaffner
- Schaffner FN3100
- TE Internal #: 801026-SF
- TE Internal Description: FN3100-200-40
- All 3-Phase Filters, Book-Style EMC/RFI Filter for Motor Drives (10)
-
Current Rating (A): 200
-
Input Termination Type : Terminal Block
-
Output Termination Type : Terminal Block
-
Wiring Configuration : Three Phase
-
Operating Voltage (VAC): 520
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_801026-SF_D.pdf 3D
- Customer View Model ENG_CVM_CVM_801026-SF_D.3d_igs.zip English
- ENG_CVM_CVM_801026-SF_D.2d_dxf.zip English
- ENG_CVM_CVM_801026-SF_D.3d_stp.zip English
Datasheets & Catalog Pages
- 3-Phase Filters FN3100 ENG_DS_FN3100_A1.pdf English
Agency Approvals
- UKCA_FN-3ph-60939-3 ENG_AAD_1064360_UKCA_FN-3ph-60939-3_E.pdf English
- CE Declaration of Conformity ENG_AAD_1064395_CE_FN-3ph-60939-3_E.pdf English
