FN3100-150-40

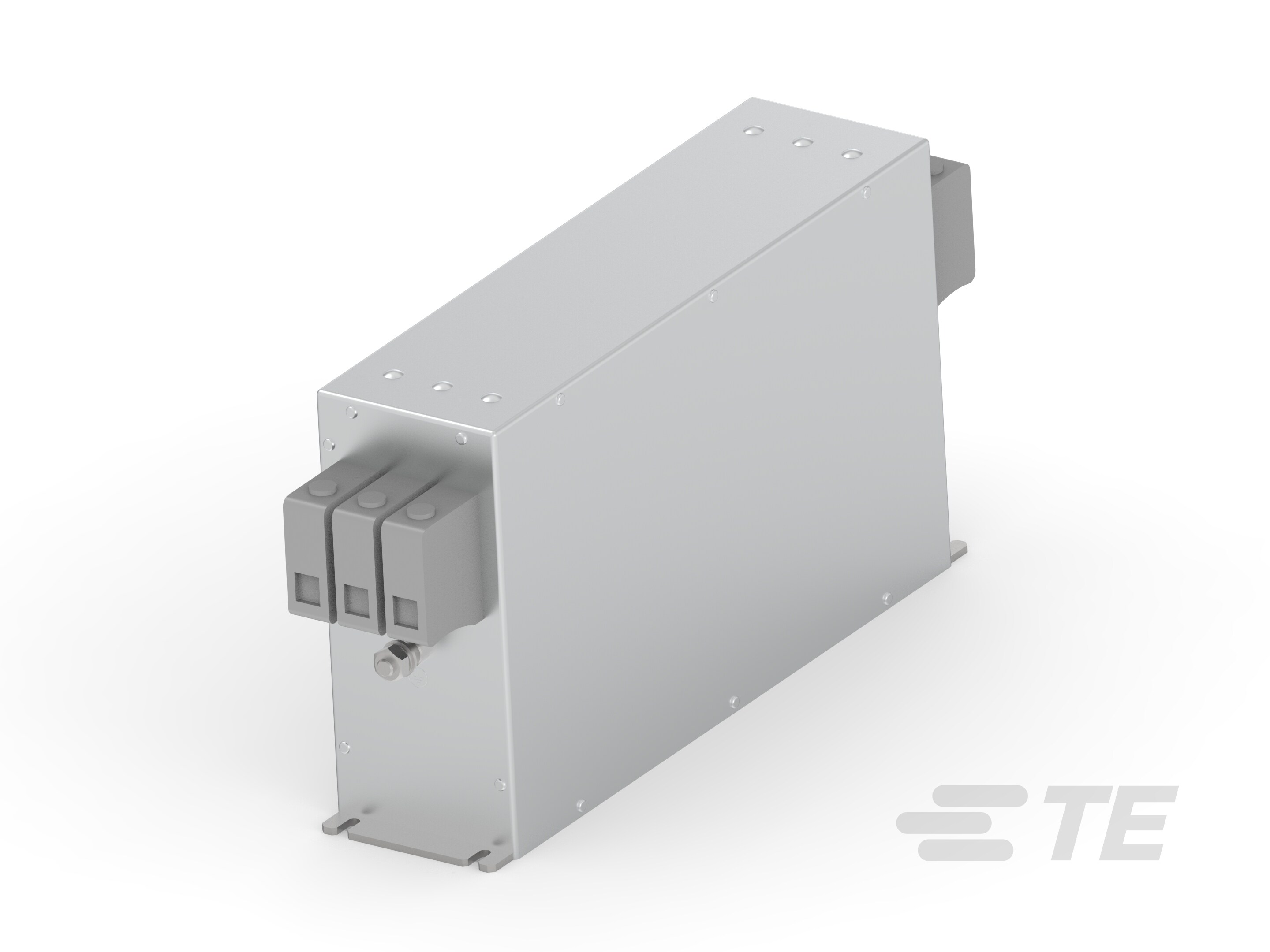

150 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, Three Phase, 520 VAC, Chassis Mount, Schaffner FN3100
FN3100-150-40
150 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, Three Phase, 520 VAC, Chassis Mount, Schaffner FN3100
-
- Schaffner
- Schaffner FN3100
- TE Internal #: 801001-SF
- TE Internal Description: FN3100-150-40
- All 3-Phase Filters, Book-Style EMC/RFI Filter for Motor Drives (10)
-
Current Rating (A): 150
-
Input Termination Type : Terminal Block
-
Output Termination Type : Terminal Block
-
Wiring Configuration : Three Phase
-
Operating Voltage (VAC): 520
