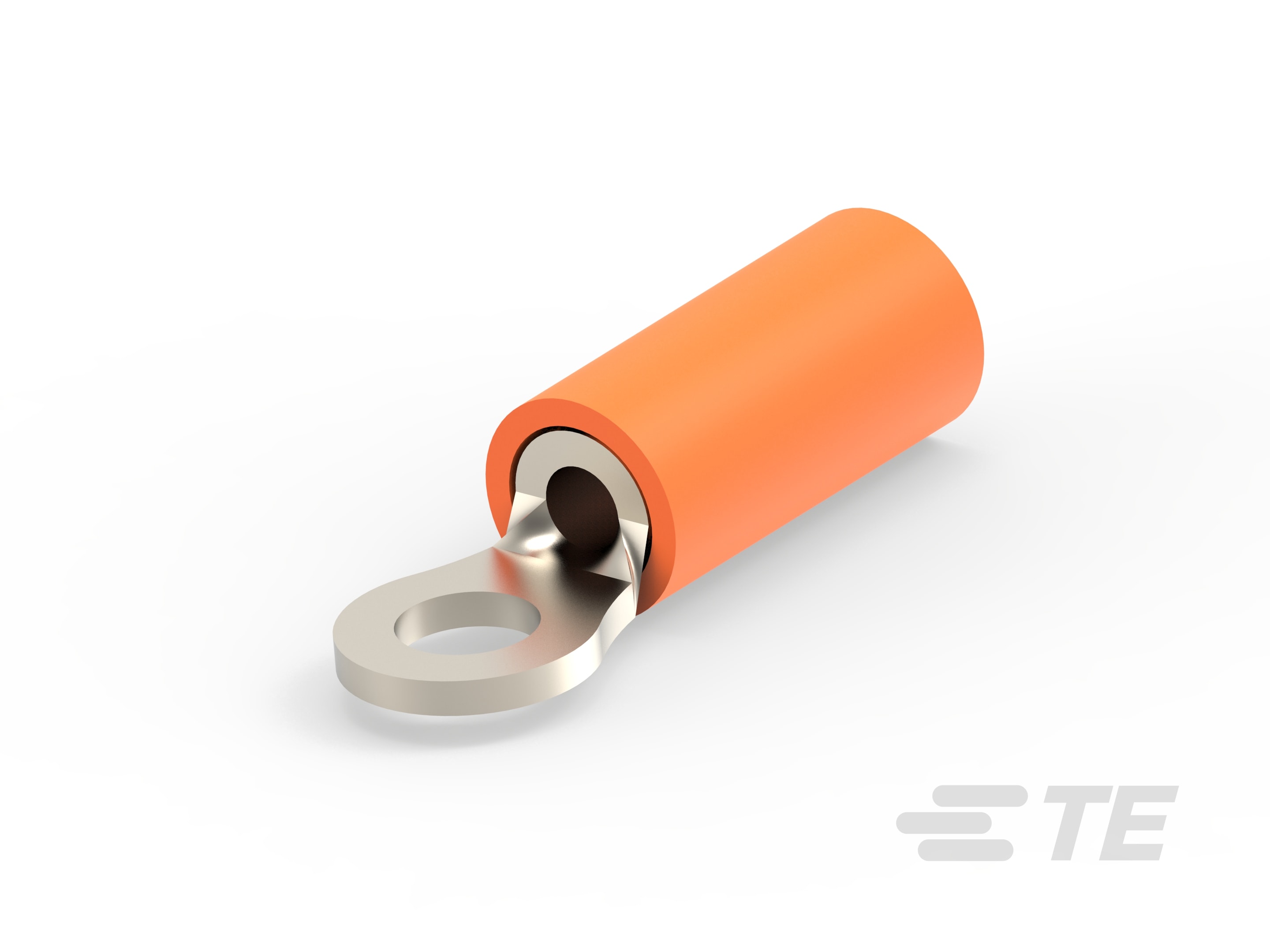

Closed Ring Tongue Terminal, 18 – 16 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
50834
Closed Ring Tongue Terminal, 18 – 16 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
-
- STRATO-THERM
- TE Internal #: 50834
- TE Internal Description: TERMINAL,PIDG PTFE R 18-16 4
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 18 – 16
-
Wire Size (mm²): .8 – 1.4
-
Wire Size (CMA): 1600 – 2800
-
Stud Size : 4, M2.5
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG, STRATO-THERM, WIRE SIZE: 18-16 AWG ENG_CD_50834_K7.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_50834_G.pdf 3D
- Customer View Model ENG_CVM_CVM_50834_G.2d_dxf.zip English
- ENG_CVM_CVM_50834_G.3d_igs.zip English
- ENG_CVM_CVM_50834_G.3d_stp.zip English
Datasheets & Catalog Pages
- STRATO-THERM Terminals & Splices for High Temperature Applications ENG_CS_82011_0806_STRATO-THERM_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-2162_D.pdf English
