845240034

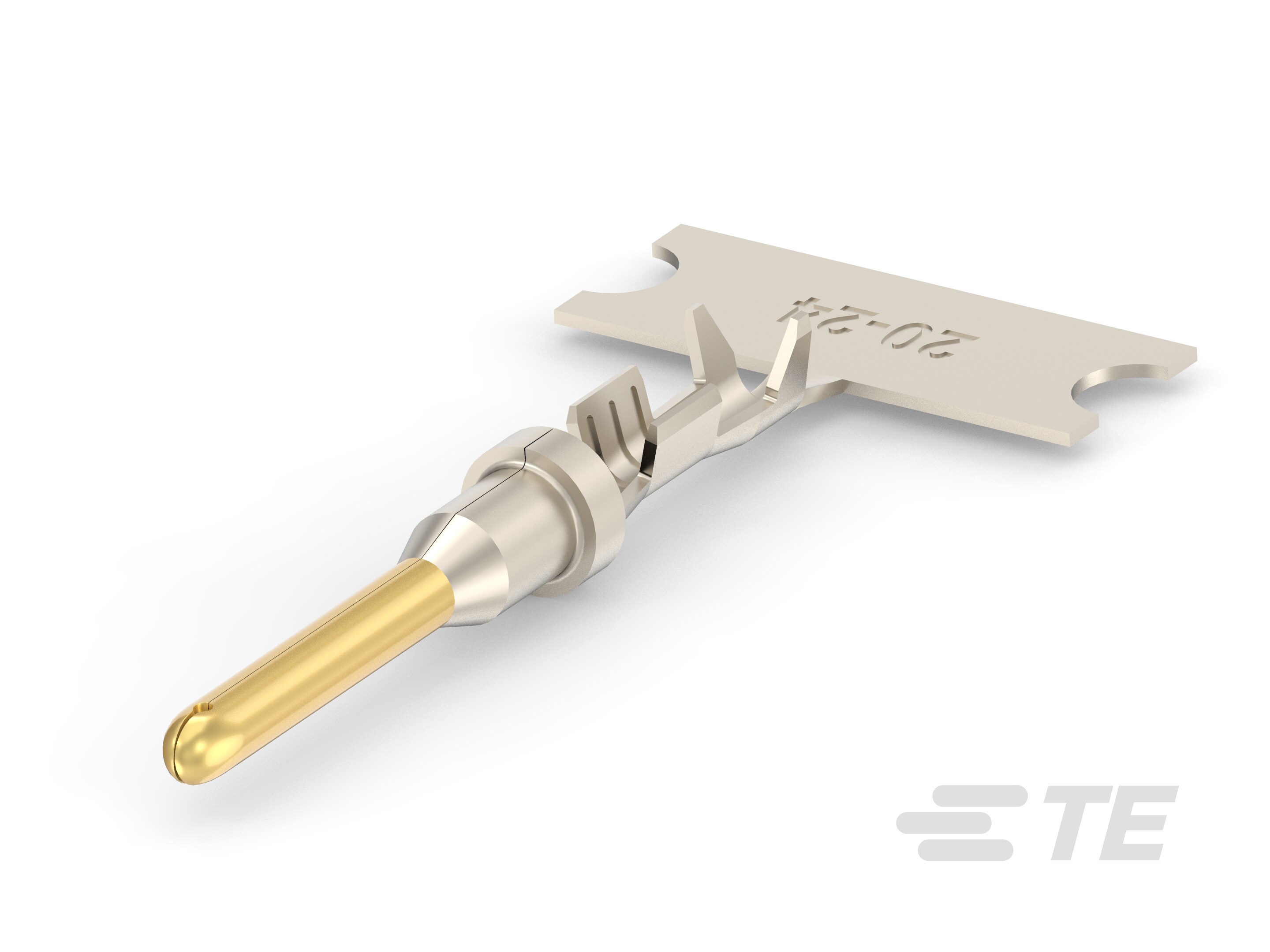

Pin Terminal, 20 – 24 AWG, .5 – .2 mm² Wire, Gold (Au), 1.56 mm [.061 in] Pin Diameter, Terminates To Wire, 21.79 mm [.857 in] Tab Length
845240034
Pin Terminal, 20 – 24 AWG, .5 – .2 mm² Wire, Gold (Au), 1.56 mm [.061 in] Pin Diameter, Terminates To Wire, 21.79 mm [.857 in] Tab Length
-
- DEUTSCH
- TE Internal #: 5-2600020-3
- TE Internal Description: XRC PIN TERMINAL 20-24 AWG Gold Plated
-
Terminal Type : Pin
-
Wire Size (AWG): 20 – 24
-
Wire Size (mm²): .5 – .2
-
Interface Plating : Gold (Au)
-
Primary Locking Feature : Clean Body
Documents
Product Drawings
- XRC PIN TERMINAL ENG_CD_2600020_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5-2600020-3_1.pdf 3D
- Customer View Model ENG_CVM_CVM_5-2600020-3_1.2d_dxf.zip English
- ENG_CVM_CVM_5-2600020-3_1.3d_igs.zip English
- ENG_CVM_CVM_5-2600020-3_1.3d_stp.zip English
Product Specifications
- PRODUCT SPECIFICATION FOR XRC (EXTRA RUGGED CIRCULAR) SEALED PLUGS AND RECEPTACLES ENG_SS_108-160011_A.pdf English
- Application Specification ENG_SS_114-160066_A.pdf English
- Product Specification ENG_SS_108-160112_A.pdf English
