- MEAS
- MEAS 85BSD
- TE Internal #: 20011374-00
- TE Internal Description: PRESS XDCR;NISO;85BSD050PGF-3BSC(T)

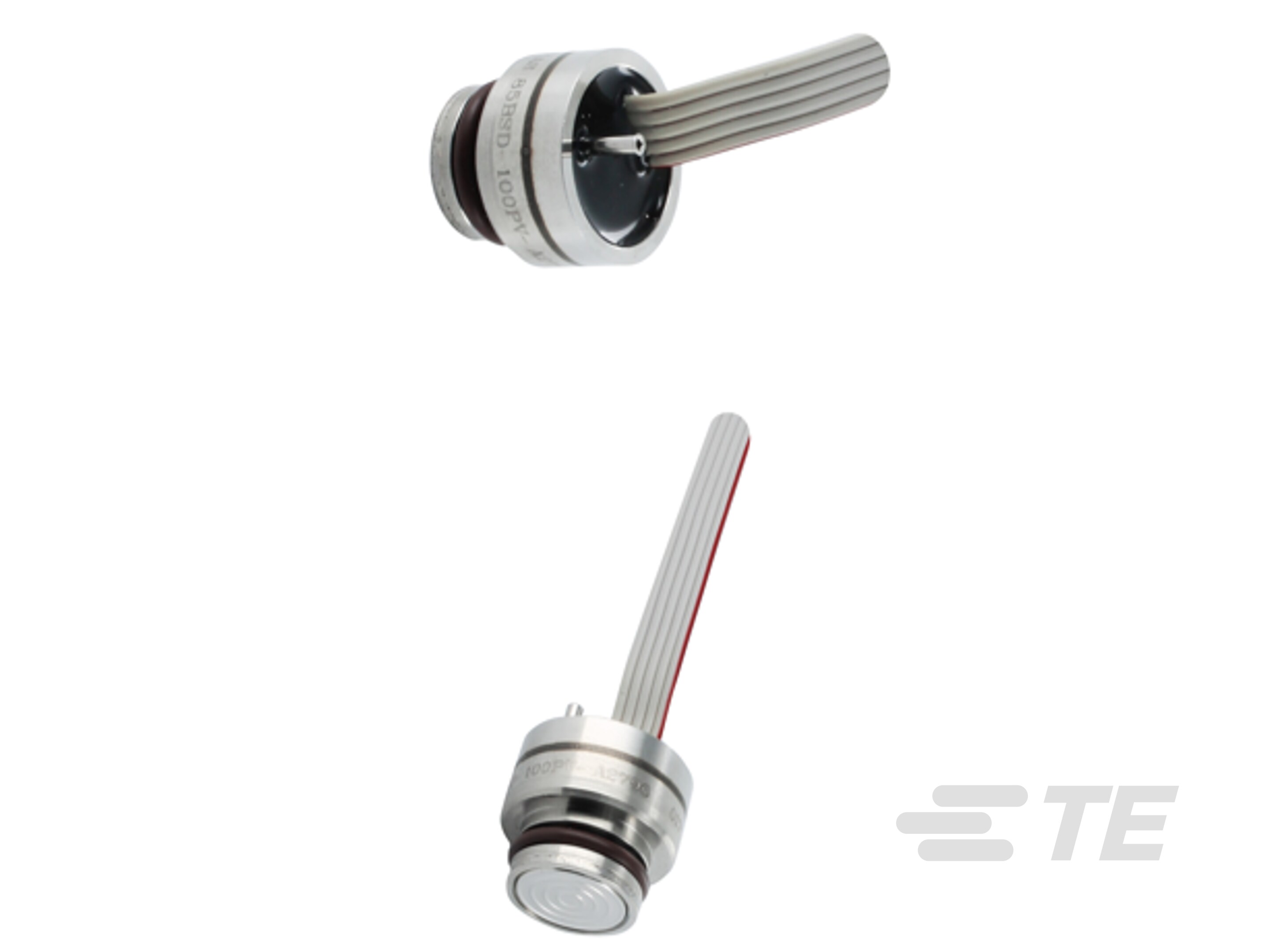

- All 13MM DIGITAL OUTPUT PRESSURE SENSOR (9)
-
Pressure : 3.447 bar [ 50 psi ]
-
Pressure Sensor Type : Digital Pressure Sensor
-
Pressure Type : Gauge
-
Output Signal Type : 14 bit SPI
-
Supply Voltage Range (V): 3.3
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_20011374-00_A.pdf 3D
- Customer View Model ENG_CVM_CVM_20011374-00_A.3d_stp.zip English
- ENG_CVM_CVM_20011374-00_A.3d_igs.zip English
- ENG_CVM_CVM_20011374-00_A.2d_dxf.zip English
Datasheets & Catalog Pages
- 85BSD-F ENG_DS_85BSD-F_A.pdf English
