This product is not currently available. For more information, including distributor inventory, please contact us.
1-2372112-4

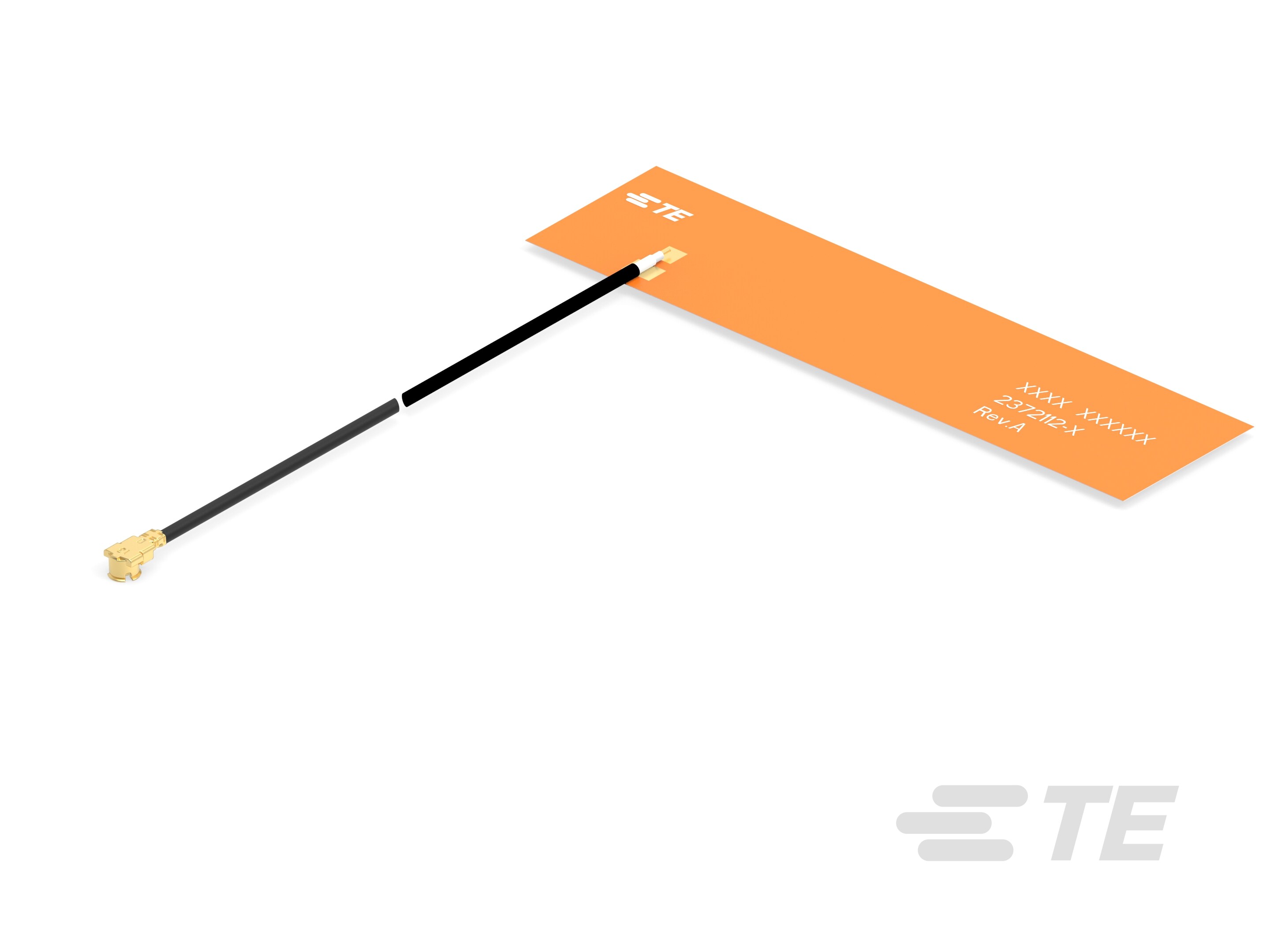

Flexible PCB (FPC) Antenna, Multi Band, Cat-M/NB-IoT / Cellular / ISM, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port
1-2372112-4
Flexible PCB (FPC) Antenna, Multi Band, Cat-M/NB-IoT / Cellular / ISM, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port
- TE Internal #: 1-2372112-4
- TE Internal Description: LTE ANTENNA COTS FPC ASSEMBLY 200MM
-
Communication Protocol : Bluetooth | Cat-M/NB-IoT | Cellular | ISM | LoRaWAN | LPWA | Zigbee
-
Mounting Location : Internal/Embedded
-
Mounting Type : Adhesive Mount
-
Frequency Category : 698 – 2700
-
Antenna Type : Flexible PCB (FPC)
Documents
Product Drawings
- LTE ANTENNA SEEMBLY FPC ANTENNA SMALLER SIZE COTS ENG_CD_2372112_A4.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_1-2372112-4_1.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2372112-4_1.3d_stp.zip English
- ENG_CVM_CVM_1-2372112-4_1.3d_igs.zip English
- ENG_CVM_CVM_1-2372112-4_1.2d_dxf.zip English
Datasheets & Catalog Pages
- 2372112-X Antennas Application Notes ENG_DS_2372112-X_A4.pdf English
Product Specifications
- Product Specification ENG_SS_108-61449_A.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Antenna Termination : MHF4
-
Antenna Product Type : Antenna
Configuration Features
-
Antenna Style : Flexible PCB
-
Mounting Location : Internal/Embedded
-
Antenna Type : Flexible PCB (FPC)
-
Band Type : Multi Band
-
Port Configuration : Single Port
Electrical Characteristics
-
VSWR (Max) : <3:1
-
Antenna Operation : Passive
-
Impedance (Ω): 50
Signal Characteristics
-
Gain (Max) (dB): 0
-
Frequency Band (MHz): 698 – 960 | 1710 – 2700
-
Frequency Category : 698 – 2700
-
Peak Gain (dBi): 0 < 3
Body Features
-
Product Weight : 2.9 g [ .1023 oz ]
Mechanical Attachment
-
Polarization : Linear
-
Mounting Type : Adhesive Mount
Dimensions
-
Cable Length : .2 m [ .656 ft ]
-
Product Height : .19 mm [ .007 in ]
-
Product Length : 65 mm [ 2.56 in ]
-
Product Width : 15 mm [ .59 in ]
-
Product Diameter : 1.13 mm [ .044 in ]
Operation/Application
-
Wireless Standard : LTE, UMTS, US Dual, EU Triband & WCDMA
-
Antenna Environment : Indoor
-
Option : Connector Ordered Separately
-
Directionality : Omnidirectional
Industry Standards
-
Communication Protocol : Bluetooth | Cat-M/NB-IoT | Cellular | ISM | LoRaWAN | LPWA | Zigbee
-
Primary Application : Cat-M/NB-IoT | Cellular | ISM
Product Availability
-
Applicable Region : Global
Packaging Features
-
Packaging Method : Bag & Box
Other
-
Precision Level : Standard
