SIM & Combo Card Connectors
With innovations like our robust 3-in-2 combo card connector, TE is a leading source for SIM and UIM card connectors with a huge array of products and expertise to customize products to your requirements. Subscriber identity modules (SIM) and universal identity module (UIM) cards are widely used in a variety of mobile applications, including billing, security, and number storage purposes in mobile devices. The SIM card parameters are defined by ISO, ETSI, and GSM standards. TE’s outstanding technological capability can help you provide a user-friendly experience by ensuring excellent reliability and durability of SIM connectors. In addition, TE has the ability to fabricate very high volume products in a cost efficient, lean manufacturing process.
Specifications for Sim Card Connectors
- Large portfolio covering a wide range of styles and card sizes
- Connectors optimized for reliability
- Spherical contact points increasing hertz stress
- Pre-loaded contacts
- Anti-retention features in the contacts
- Series offers the best possible design freedom with many products scalable in height within the same form factor
- Best possible applied cost by fully automated processing
Download this product guide for summary specifications on the varieties of SIM card connectors. In addition to summary information about each SIM card connector type—push-push, push-pull, tray, and block—this guide offers illustrations and specifications (part number, picture height range, length × width, description, features and benefits, and status) for mini SIM (2FF) and micro SIM (3FF) cards, by type, with size comparisons.

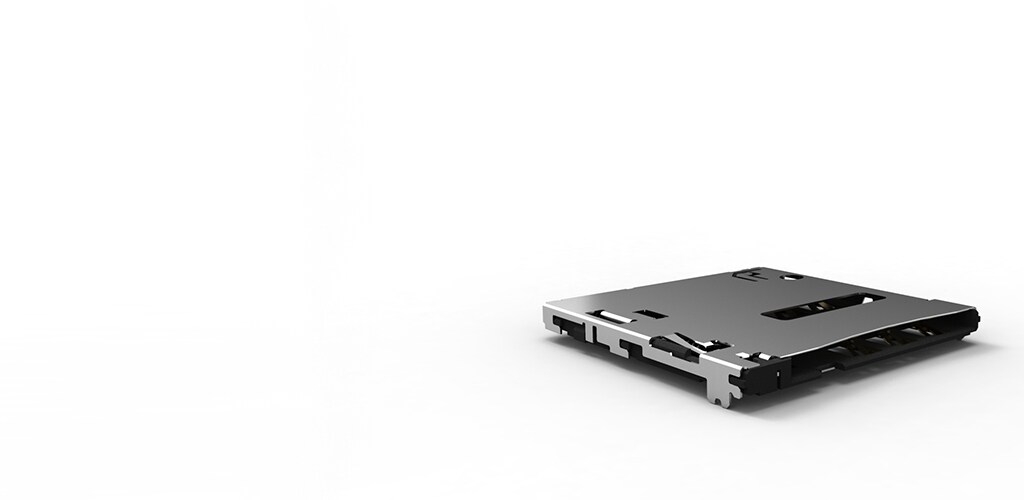

Our micro SIM push-push connector offers an innovative design, with an extensive line of SIM card connectors.
From the 1FF SIM for the first generation cellular phones, the 2FF SIM for feature phones, to the 3FF micro and the 4FF nano SIM for smart phones, SIM card are required to be smaller to meet the demands of today’s electronic devices.
To keep pace with the latest advances in consumer electronics, TE Connectivity introduced the innovative Micro SIM push-push Connector.
At only 1.27 millimeters, it’s compact, super-slim design is 50 percent smaller.
It’s smooth, push-push function with SIM card anti-misinsertion design…only card insertion in the right direction results in the right connection. But misinsertion will not affect or damage the SIM connector. The innovative dual contact pin feature showed excellent results in drop tests. Its creative design cushions the SIM card and effectively prevents it from bouncing out of the slot.
Besides micro SIM push-push connector, we also have a complete line of SIM card connectors. We are committed to producing high-performance SIM card connectors to meet your product design specifications precisely.
Each and every one of the thousands of high-quality connectors that roll off our production lines every day are carefully worked up, rigorously tested and thoroughly examined.
No matter where the SIM card is applied—mobile phones, smart phones, tablets, ultrabooks, PCs, data cards, personal GPS modules or servers—we deliver the highest quality and the best performance.
We are TE Connectivity. For more information, please search TE SIM. To get a free sample and product brochure, please visit www.TE.com forward slash SIMV.
Device manufacturers want high density and the ability to provide flexibility to their end users. Our new 3-in-2 card connector provides both.
- Tommy Yu,
- Product Manager
- Mobile phones
- Personal computers
- Ultraportable devices
- Data cards
- Portable GSM modems
