Modular and Scalable Connectors for Automotive Ethernet

Modular and Scalable Connectors for Automotive Ethernet

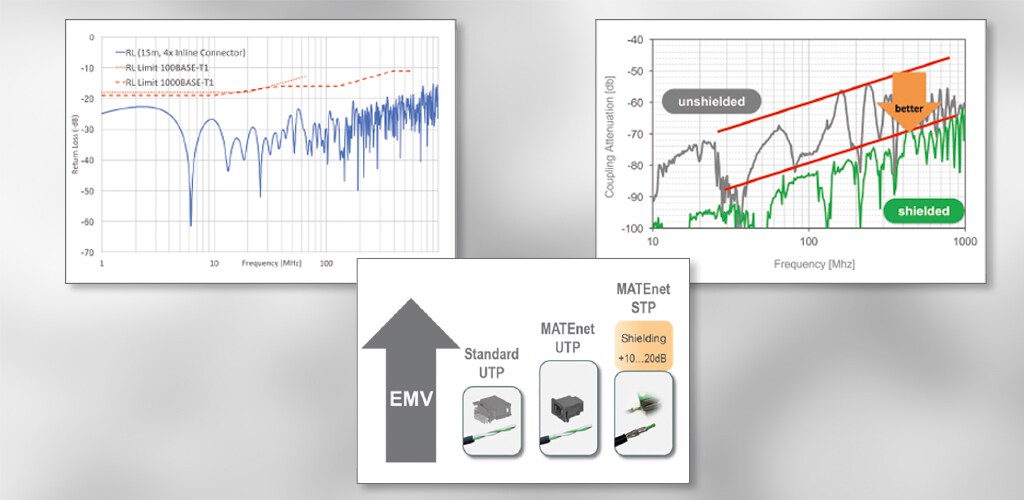

TE plays a major role in connecting critical electronic vehicle networks that enable transmission of data from sensors and systems. TE’s MATEnet modular and scalable automotive ethernet connector series has been able to show a data transmission rate of 100 Mbit/s and 1 Gbit/s according to IEEE 100BASE-T1/1000BASE-T1. This can be achieved with standard automotive connectors based on TE’s miniaturized NanoMQS termination system in combination with unshielded twisted-pair (UTP) cable or shielded twisted-pair (STP) cable.

Product Features / Product Standards

MATEnet Modular and Scalable Connectors
  • Automotive grade robustness based on TE's NanoMQS terminals system
  • Higher data-rate: Applicable for up to 1 Gbps (also potential for 6 Gbps with alternative technologies)
  • IEEE conformance: 100BASE-T1 (100Mbps - IEEE802.3bw and 1000BASE-T1 (1Gbps -IEEE802.3bp); potentially up to 6 Gbps with alternative technologies
  • Compatible with Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP)
  • Cost efficient – design and process perfectly aligned for automotive Ethernet needs
  • Provides a modular and scalable solution that fits to automotive connectivity building blocks
  • PoDL (Class 3 - 48 Volt)
  • A2B
  • HDBaseT
MATEnet Cable Assembly
MATEnet Cable Assembly (UTP/STP): Available cable types: UTP 100 Mbps / UTP 1 Gbps and STP 1 Gbps Possible Configurations: 1 port Frame – 1 port Frame 1 port Frame – 1 port Inline Coupler Female insert – Female insert Female insert – Male insert
MATEnet interconnection system

MATEnet Modular and Scalable Connectors: Enabling Automotive Ethernet

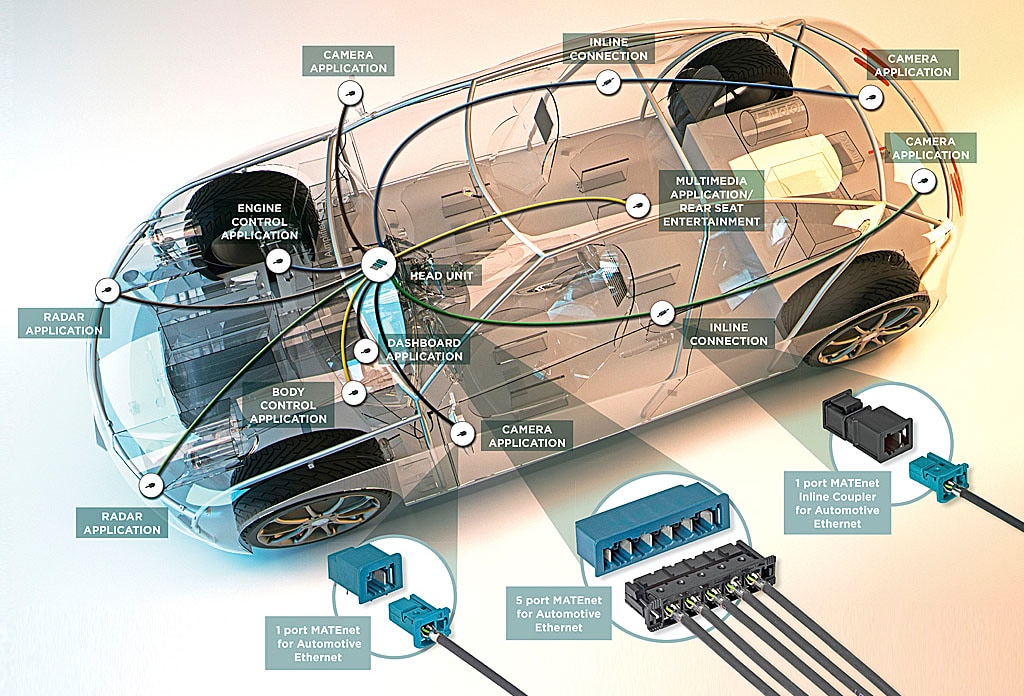

Applications

  • In-Vehicle Networks
  • Advanced Driver Assistance Systems (ADAS)
  • RADAR / LiDAR Applications
  • 360° surround view camera
  • On-board diagnostic (V2X technologies)
MATEnet modular and scalable connectors for automotive Ethernet

TE's MATEnet modular and scalable connectors for automotive Ethernet
