KISSLING Series 09 Toggle Switch

KISSLING Series 07/08/09

KISSLING toggle switches are maintained toggle switches developed under strict guidelines to meet recognized international quality standards. These toggle switches are sealed themselves and we offer additional sealing rings for improved mounting solutions as well as optional bellows for the handles. Our range of KISSLING toggle switches has a minimum switching current of 20 mA at 12 VDC and many options for switching configuration, termination type, load carrying capabilities, and locking combinations. You have the possibility to add toggle switch guards to prevent accidental switching as well as individual switches and complete switch assemblies with additional sealed housings for simplified vehicle assembly procedures.

KISSLING Toggle Switches

Series 07/08/09

Our broad selection of toggles includes many options for switching configuration, termination type, load carrying capabilities, and locking combinations. We provide switches both with and without switch guards to prevent accidental switching as well as individual switches and complete switch assemblies with additional sealed housings for simplified vehicle assembly procedures.


Because of their reliability, our KISSLING toggle switches are used in various applications, including commercial and military motor vehicles, commercial and military aerospace, commercial, plant and industrial engineering, and medical equipment.

+85⁰C

Maximum environmental operating temperature

20 mA

Minimum switching current at 12 VDC

IP68

sealing technology or exceeds IP68


 Product Features  Technical Data Application Areas
  • Military-grade robustness (VG 95 318)
  • High-quality silver contacts
  • Sealing technology meets or exceeds IP68
  • 2-& 3-position switch actions with a wide variety of available switching patterns
  • Wide variety of locking options for individual needs
  • Optional switch guards, sealing rings for better panel mounting and bellows for the handles
  • Series 9 toggle switches are compatible with "Honeywell-style" switches
  • 1-, 2- & 4-pole switches are available
  • Rated for a minimum of 100,000 switching cycles under full load
  • Nominal load 20 A at 28 VDC (ohmic load), 15 A at 115 VAC (inductive load)
  • Minimum switching current 20 mA at 12 VDC
  • Electrical life tested for a minimum of 100.000 cycles (switching under load)
  • Rated for up to -40°C to 85°C (-40⁰F to +185 ⁰F) environmental operating temperature
  • Commercial and military aerospace
  • Commercial motor vehicles
  • Military ground equipment & vehicles
  • Plant and industrial engineering
  • Medical equipment


Complete Switch Assemblies in Sealed Housing
  • Individual configurations possible
  • DIN connectors or flying leads are available

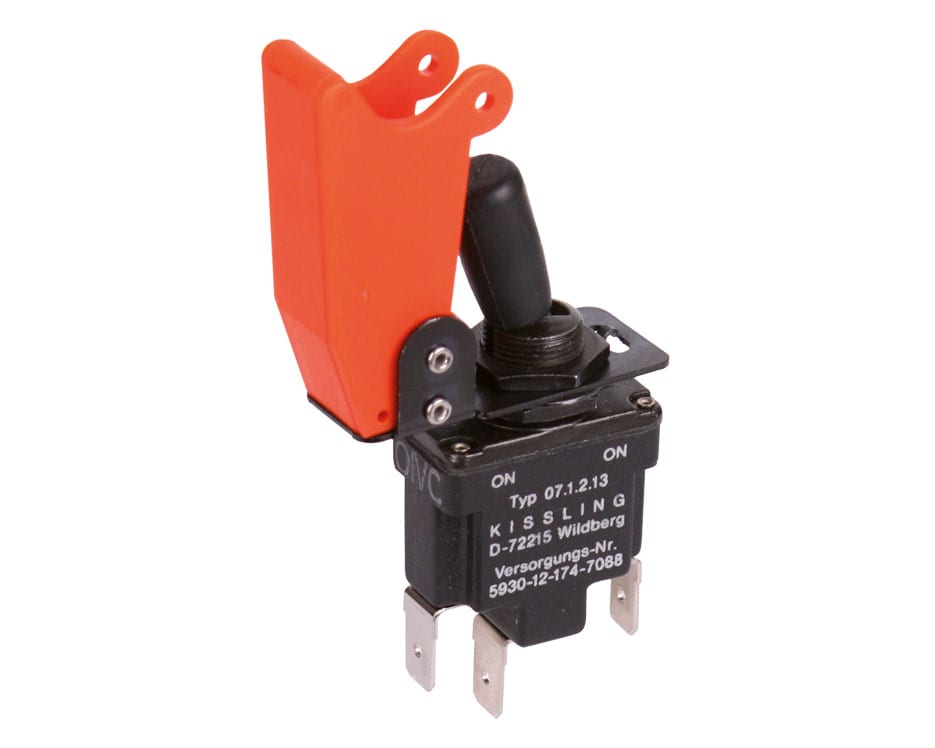

Optional Switch Guards

  • Red, Orange & Other colors available
  • Compatible with Series 07 / 08 / 09 toggle switches
