SEAT BUCKLE SENSOR

SEAT BUCKLE SENSOR-CAT-FLS0033
  • MEAS
|
  • MEAS FN4070/FN4080
The FN4070 series seat buckle sensor measures the effort generated on the anchor point of seat belts during crash tests.
More Less

Product Features

  • Force Load Cell Sensor Type: Automotive Load Cells

  • Force Direction: Tension

  • Full Scale Range(Newton): 0 – 25000

  • Full Scale Range(lbf): 0 – 5000

  • Operating Temperature Range(°C): -20 – 80

Available from

LADD Inc

Overview

The FN4070 series seat buckle sensor measures the effort generated on the anchor point of seat belts during crash tests.

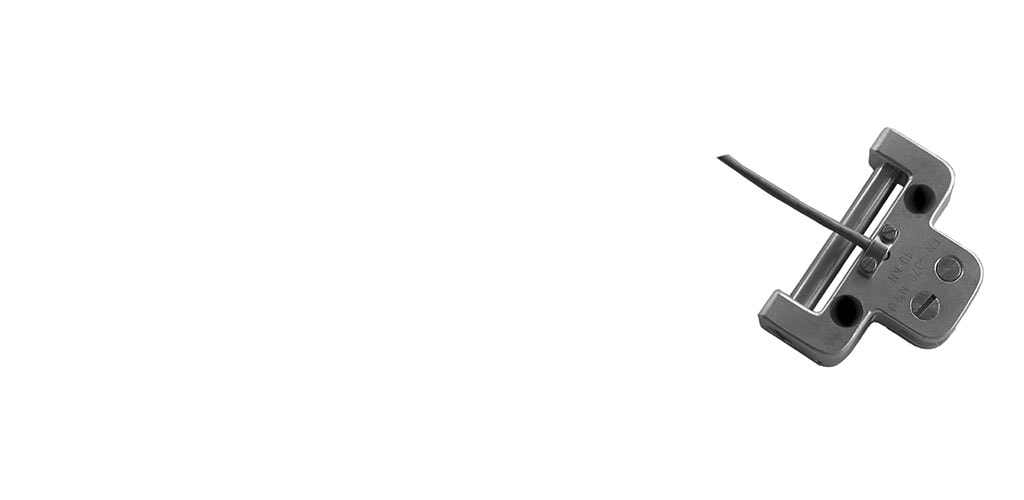

fn4070 seat buckle sensor

The FN4070 seat buckle load cell can be easily re-used by changing the tongue. It also has a cable output which can be renewed by the crash test technicians to allow for cost-effective, in-house maintenance of the device. Consult your TE representative for technical specification. With many years of experience as a designer and manufacturer of sensors, we often work with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

Benefits

  • Operating ranges from 0-1kN to 0-50kN
  • Compatible with most seat belts
  • Detachable tongue and cable
  • Easy and economical maintenance
  • Multiple tongues adjustable by customer
  • Dynamic application
  • Very robust for crash

Applications

  • Crash test on-board equipment
  • Security absorbers
  • Parachute belt and anchor testing

Other Auto Safety Sensors



EL20 seat belt load cell

EL20 Series

Low Mass Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
FN4055 seat belt tension load cell

FN4055 Series

SEAT BELT TENSION LOAD CELL

The FN4055 series tension seat belt load cell measures with excellent accuracy the forces exerted on the seat belt.
FN2317 handbrake load cell

FN2317 Series

HAND BRAKE LOAD CELL

The FN2317 handbrake load cell is designed with the purpose of allowing quick and easy installation when measuring forces applied to the handle of the hand brake in automobiles.
FN2570 load cell

FN2570 Series

EXTRA FLAT LOAD CELL

The FN2570 load cell has been developed for pedal force testing. It attaches easily on all types of pedals and test rigs for endurance and fatigue tests, especially where size is an important factor.
pedal load cell

FN2114 Series

PEDAL LOAD CELL

The FN2114 series pedal load cell has been developed for pedal load testing. Its size allows the sensor to be easily installed on the pedals of any vehicle or a fatigue/endurance test bench.
FN7080 gear stick load cell

FN7080 Series

GEAR STICK LOAD CELL

Designed for automotive comfort testing, the FN7080 is installed in place of the original gear knob on the gear stick and measures the force required to change gear.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Load Cell Sensor Type  Automotive Load Cells

Electrical Characteristics

  • Full Scale Range (Newton) 0 – 25000

  • Full Scale Range (lbf) 0 – 5000

  • Force Load Cell Supply Voltage (VDC) 10

Signal Characteristics

  • Output Signal  ±2 mV/V

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

Other

  • Force Direction  Tension

  • Protection Index  IP50

  • Force Load Cell Accuracy (% of FS) ±.5

  • Zero Shift in CTR (%FS/°C) ±.5/50

  • Sensitivity Shift (%FS/°C) ±1/50

Reference Number

  • TE Internal Number CAT-FLS0033
