Economical Combination of Thermoplastic UL 94V-0 rated Connector Housings and Metal Shells

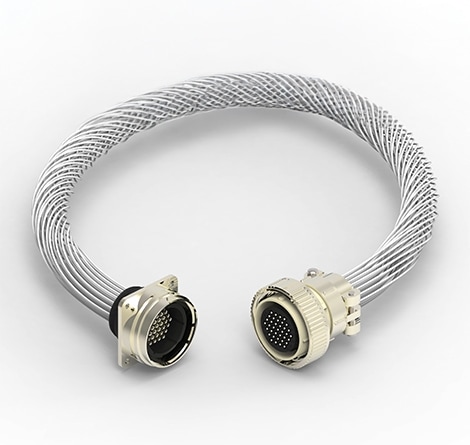

AMP Metal-Shell Circular Plastic Connectors offer the reliability of higher priced all metal connectors at a fraction of the cost and are offered in the more popular contact configurations. Connector housings are made of lightweight, sturdy, thermoplastic materials that are UL 94V-0 rated, with zinc alloy, and nickel-plated shells for added strength and protection. These connectors are available in a variety of configurations to meet your signal, low-current, and high-current requirements. These quick connect/disconnect circular connectors feature polarized housings to prevent mismating with other insert arrangements. AMP Metal-Shell Circular Plastic Connectors are available in square flange receptacles and free hanging plug connectors.
Product Features
Circular Metal-Shell Connector
| Positions | 7, 19, 37 | Coupling Mechanism | ¼ - Turn Coupling Ring |
| Contact System | Spring Probe Solder or Screw-machine Pin & Socket Solder |
Configuration | Wire to Wire, Wire-to-Panel, Wire-to-PCB |
| Wire Range (AWG) | 24-30 | Sealing | IP65 |
| Current Rating (A) | 2 | Voltage Rating (V) |
250 |
| Operating Temperature (°C) | -55 to +125 | Operating Temperature (°F) |
-67 to +257 |
Benefits
Circular Metal-Shell Connector
- Compatible with MIL Spec metal housing type connectors
- Choice of application tooling to meet production requirements
- Consists of a thermoplastic insert in a nickel-plated, zinc alloy shell
- Available in series 1-4 configurations (same contact configuration as all-plastic version)
- Optional “Tetraseal” interface seal provides splash-proof sealing between connector metal shells
- High current capability is met with Type XII contacts, capable of carrying up to 35 amperes of current
- Signal and low current options include AMP Multimate contacts with .062" (1.57 mm) pin diameter (20 DF and 20 DM contacts) and .040" (1.02 mm) pin diameter
- Quick connect/disconnect circular connectors feature polarized housings to prevent mismating
- Available in square flange receptacles and free-hanging plug connectors
- Cost-effective AMP Type III+ pin and socket contacts are available in strip form for high-volume, automatic machine terminations and loose piece form for low-volume, prototype, or maintenance and repair needs
Mark Zitto, TE Automation & Control Product Engineer, showcases our Circular Plastic Connectors, highlighting their robust design, cost-effectiveness, and versatility. These reliable connectors are engineered for applications requiring signal, power, or both. Their circular configuration maximizes space efficiency while offering enhanced design flexibility with various mounting options. Built to perform in diverse environments, our Circular Plastic Connectors deliver solutions that save you time, space, and money—meeting your application needs with ease.
