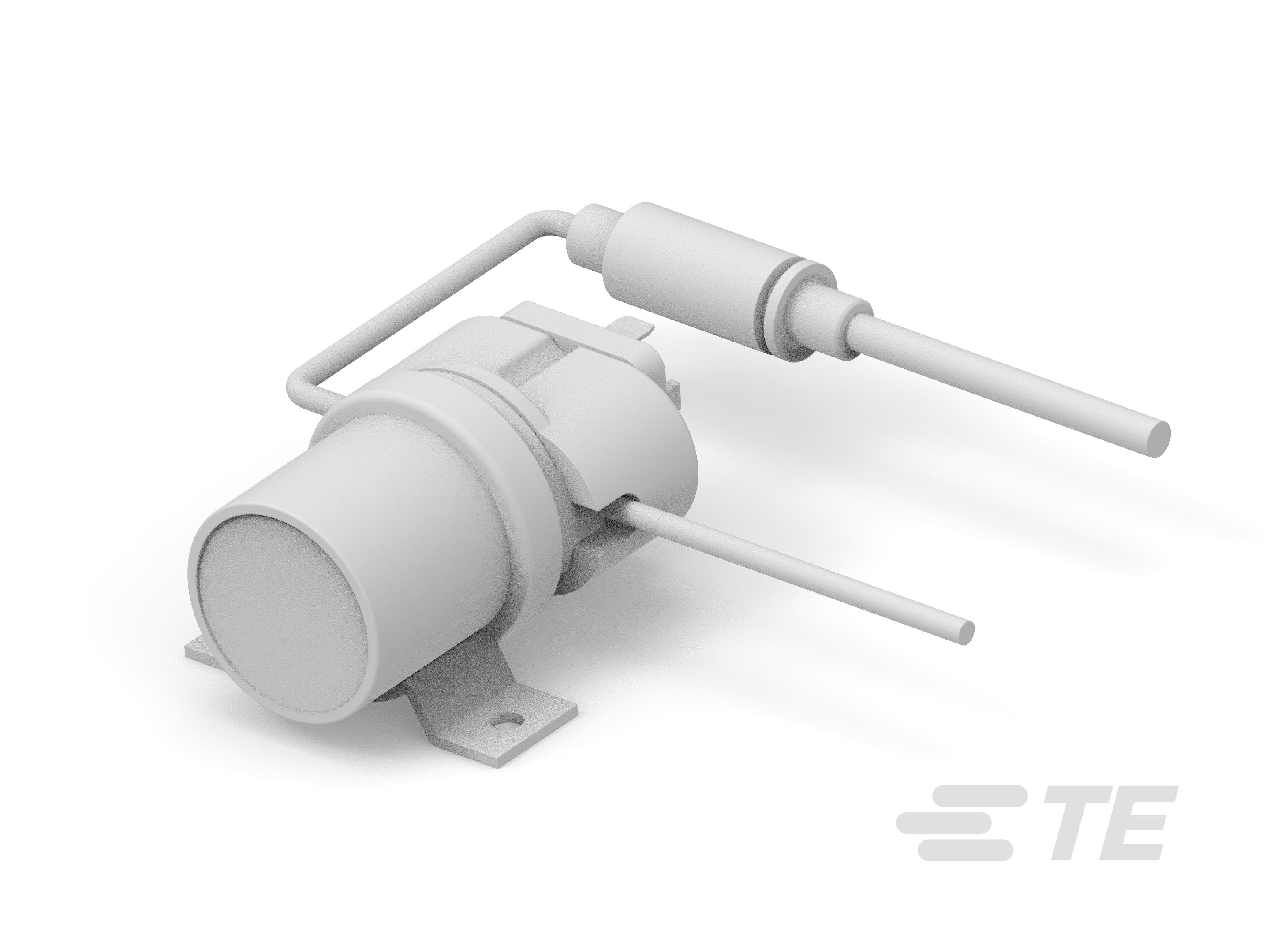

26-70-04-900
General Purpose Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 50 A Contact Rating, 18 VDC / 32 VDC Coil Voltage, KISSLING Series 26
26-70-04-900
General Purpose Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 50 A Contact Rating, 18 VDC / 32 VDC Coil Voltage, KISSLING Series 26
-
- KISSLING
- KISSLING Series 26
- TE Internal #: K1006114
- TE Internal Description: Relay 26-70-04-900
-
Relay & Contactor Type : General Purpose Power Relay
-
Current Type : DC
-
Coil Magnetic System : Monostable
-
Contact Arrangement : 1 Form X SPST-NO-DM
-
Contact Current Rating (A): 50
Documents
Product Drawings
- 26-70-04-900 GER_CD_26-70-04-900_1.pdf German
- 26-70-04-900 GER_CD_26-70-04-900_MZ_1.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_26-70-04-900_1.pdf 3D
- Customer View Model ENG_CVM_CVM_26-70-04-900_1.2d_dxf.zip English
- ENG_CVM_CVM_26-70-04-900_1.3d_igs.zip English
- ENG_CVM_CVM_26-70-04-900_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING HIGH PERFORMANCE RELAYS Series 26 / 50A ENG_DS_K1166683_B.pdf English
- Solutions for Defense Applications Certified to VG Standards ENG_DS_2392785-1_vg-products_2402.pdf English
