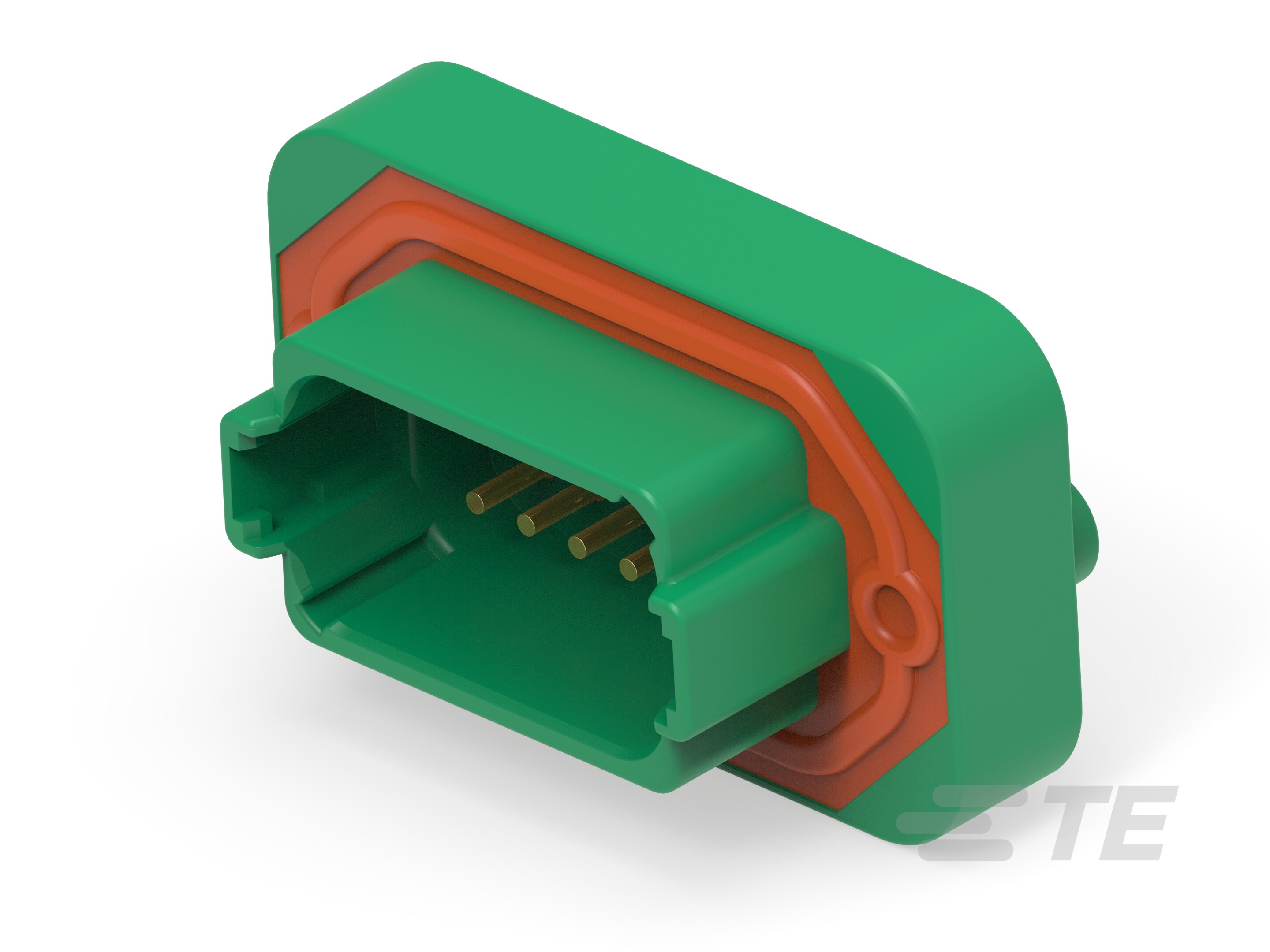

Name: HDR, 12P, GRN, ST, AU/NI/CU, C
Brand: DEUTSCH
Price: 30.99 USD
Availability: InStock

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector Shape : Rectangular
Mixed & Hybrid Header : No
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Sections : 1
Number of Signal Positions : 12
PCB Mount Orientation : Vertical

Electrical Characteristics

Nominal Voltage Architecture (V): 12, 24
Voltage Rating (Max) (VDC): 250
Voltage Rating (Max) (VAC): 250
Operating Voltage (VDC): 250
Operating Voltage (VAC): 250

Body Features

Connector & Keying Code : C
Primary Product Color : Green

Contact Features

Mating Pin Diameter : 1.59 mm [ .063 in ]
Contact Current Rating (Max) (A): 13

Termination Features

Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Retention Type : Mounting Screw
Mating Alignment Type : Keyed
Mounting Holes : With
Mating Retention Type : Locking Interface
Panel Mount Feature : With
Connector Mounting Type : Panel Mount

Dimensions

Connector Length : 39.5 mm [ 1.555 in ]
Profile Height from PCB : 35.26 mm [ 1.388 in ]
PCB Thickness (Recommended) : .78 – 2.36 mm [ .031 – .093 in ]
Connector Width : 59.21 mm [ 2.331 in ]

Usage Conditions

Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Shielded : No
Circuit Application : Power & Signal

Industry Standards

IP Rating : Not Tested

Packaging Features

Packaging Quantity : 100

Other

Interface Number : DT04-12PC

DT15-12PC-G003

Vertical, Wire-to-Board, 12 Position, 2 Rows, 1.45mm [.175in] Centerline, Gold (Au), Sealable, Wire & Cable, 13A Contact Current Rating (Max)

DT15-12PC-G003

Vertical, Wire-to-Board, 12 Position, 2 Rows, 1.45mm [.175in] Centerline, Gold (Au), Sealable, Wire & Cable, 13A Contact Current Rating (Max)

PCB Mount Orientation : Vertical

Termination Method to PCB : Through Hole - Solder

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Contact Current Rating (Max) (A): 13
