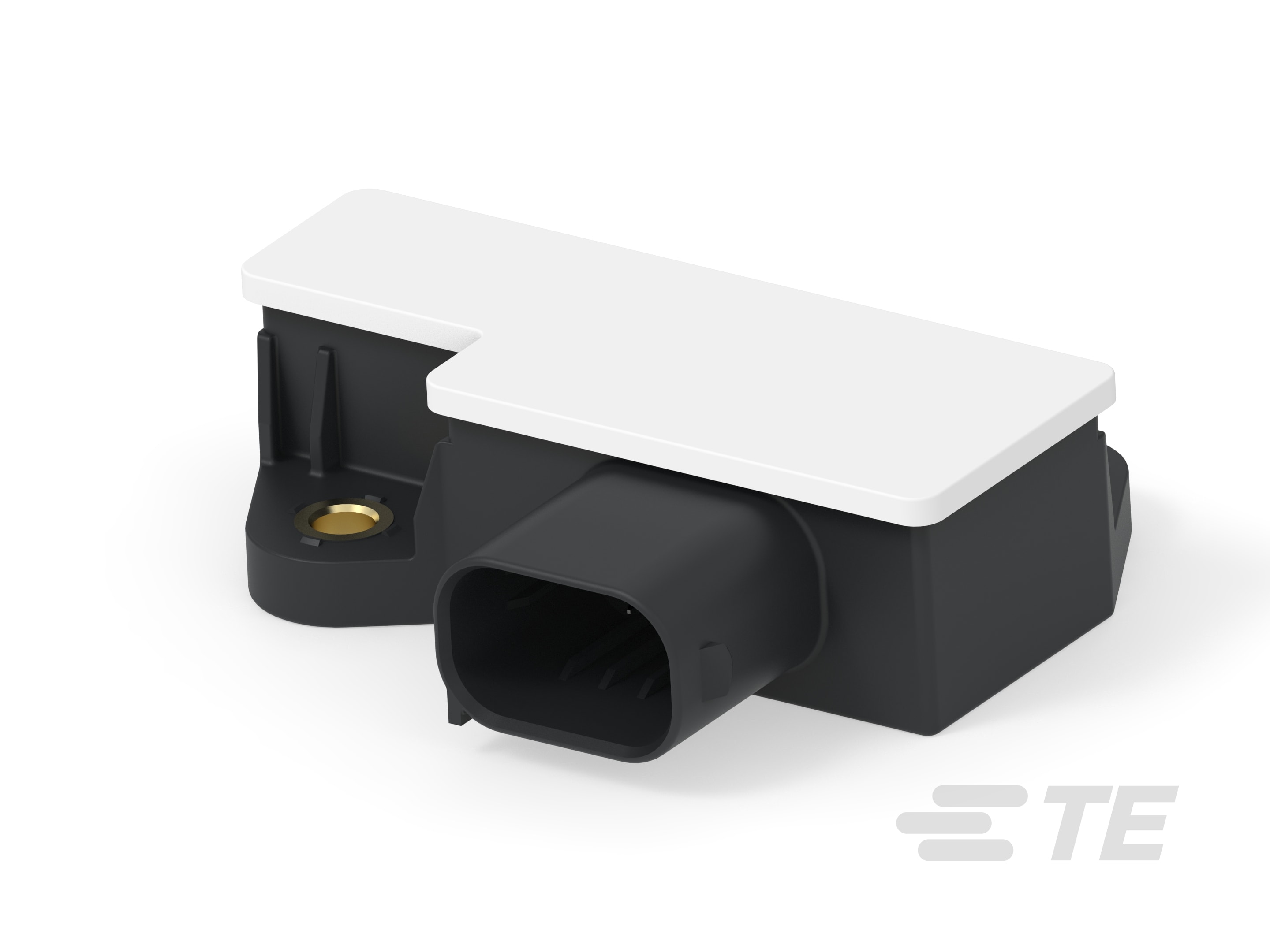

Linear Platform Position Sensor (PLCD)

The core of this sensor consists of a unique variable transformer measuring system developed by TE. A permanent magnet attached to the moving component generates a saturation zone in the high permeable core inside the transformer. The sensor detects the travel of the target magnet by sensing the position of the saturation zone, which is then transformed to output position signals.

The output is given as an original and complementary signal allowing the ECU to check the validity of the received signal. This platform sensor is designed for very harsh automotive and commercial transport environments such as powertrain applications with high temperature, high vibration, shock and sealing requirements. The sensor comes pre-programmed and ready to work with the platform magnet requiring only an offset calibration.
