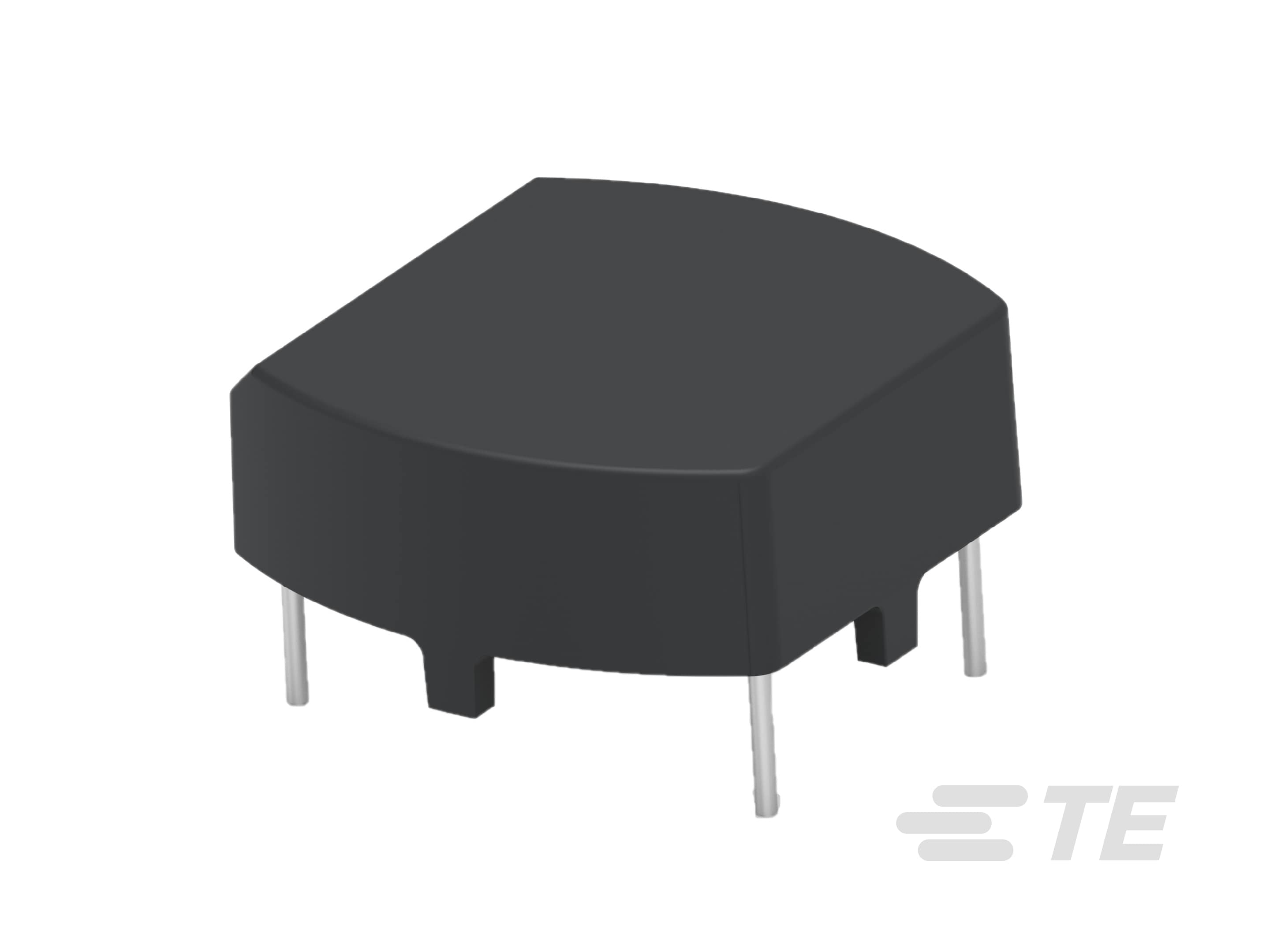

EMC/RFI Chokes RB Series: Current-Compensated Chokes for High-Performance Filtering

EMC/RFI Chokes RB Series: Current-Compensated Chokes for High-Performance Filtering-CAT-PA3-RC
Rated for currents from 16 to 50 A with voltage handling up to 600 VAC or 1000 VDC. Available in 2- and 3-wire configurations with both horizontal and vertical PCB mounting options. Features a rugged design for superior saturation and thermal stability. Open-frame construction supports both forced and natural convection cooling. Simplified pin-out enables easy integration into PCB layouts.
More Less
Connect with Us

Product Features

  • Operating Voltage (Max) (VDC): 250

  • Current Rating (Max) (A): .25 | .3 | .35 | .4 | .5 | .6 | .7

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Operating Voltage (Max) (VDC) 250

  • Current Rating (Max) (A) .25 | .3 | .35 | .4 | .5 | .6 | .7

Body Features

  • Product Weight  3 g [ .106 oz ]

  • Product Orientation  Vertical | Horizontal

Mechanical Attachment

  • Product Mount Type  Board Mount

Dimensions

  • Product Width (mm) 7.4 | 17.5

  • Product Width (in) .29 | .68

  • Product Length (mm) 15.3 | 17.5

  • Product Length (in) .6 | .68

  • Product Height (mm) 8 | 17.6

  • Product Height (in) .31 | .69

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • Certified To  IEC/EN 60938-2

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PA3-RC
