SUBMERSIBLE MINIATURE LVDT
- MEAS
- MEAS MHR
Product Features
-
Linearity Error (Full Range) (%): ±.25
-
Case Material : Stainless Steel
-
Product Shape : Cylindrical
-
Supply Voltage Range (V): 3
-
Operating Temperature Range : -20 – 200 °C [ -4 – 392 °F ]

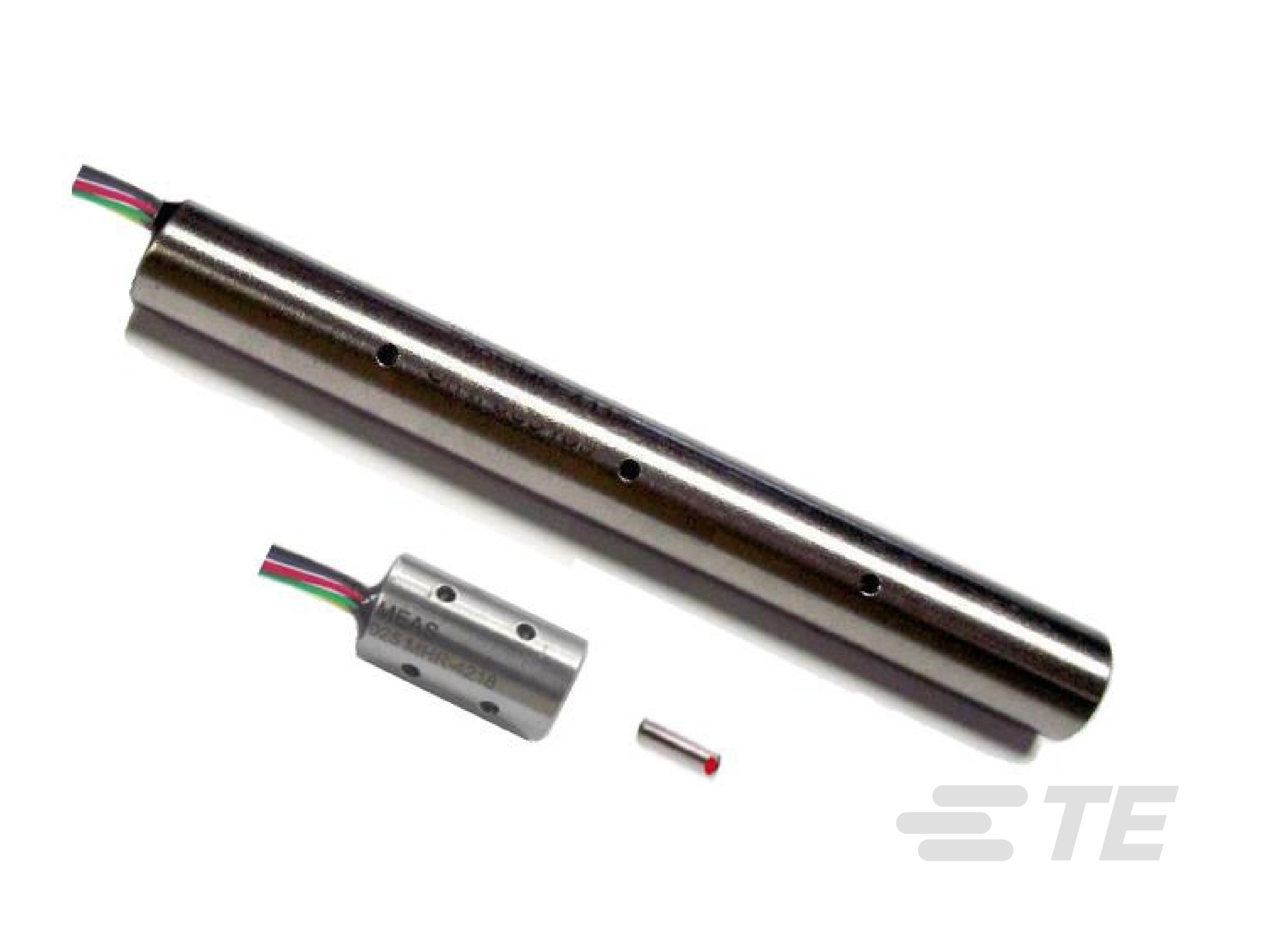

With a diameter of just 3/8 inch [9.5mm], the MHR-V Series allow precision measurements in space restrictive installations at temperatures up to 392°F [200°C]. The extremely lightweight core makes the MHR-V an excellent choice for applications where excessive core weight could influence the motion; with less inertia, accurate measurements at higher displacement speeds are easier to achieve. The lightweight core also reduces mechanical stresses and helps preserve the structural integrity of the core actuation assembly.
BENEFITS
- Vented case for submersed applications
- Operating pressure up to 10,000 PSI
- Operating temperature 392°F [200°C]
- Small size and low mass core
- High output signal
- Stroke ranges from ± 0.025 to ±1 inch
- AC operation from 2kHz to 20kHz
- Stainless steel housing
- Imperial or metric threaded core
LVDT SENSOR TECHNOLOGY RESOURCES
-
LVDT Tutorial
Explore how LVDT position sensors are constructed and the benefits of LVDT technology.
-
LVDT Terminology
Learn some of the basic terminology used when specifying LVDT position sensors.
-
Specifying an LVDT Sensor
Helpful hints on how to specify an LVDT position sensor.
-
Free Core vs. Guided Core LVDT
One of the primary factors in choosing an LVDT is determining the correct mechanical interface.
-
Temperature Effects on LVDT Position Sensors
Read how the effects of temperature can influence the performance of LVDT sensors and how to compensate for them.
-
AC vs. DC LVDT Position Sensor
Compare the advantages and disadvantages of AC and DC output signals for LVDT position sensors.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Product Shape Cylindrical
Configuration Features
-
Electrical Connection Leads
Electrical Characteristics
-
Supply Voltage Range (V) 3
Signal Characteristics
-
Excitation Frequency (kHz) 2 – 20
Body Features
-
Case Material Stainless Steel
-
Core Configuration Separate Core
Dimensions
-
Product Diameter 9.52 mm [ .375 in ]
Usage Conditions
-
Operating Temperature Range -20 – 200 °C [ -4 – 392 °F ]
-
Environmental Specifications 10,000 PSI Submersible
Other
-
Linearity Error (Full Range) (%) ±.25
Reference Number
-
TE Internal Number CAT-LVDT0023
