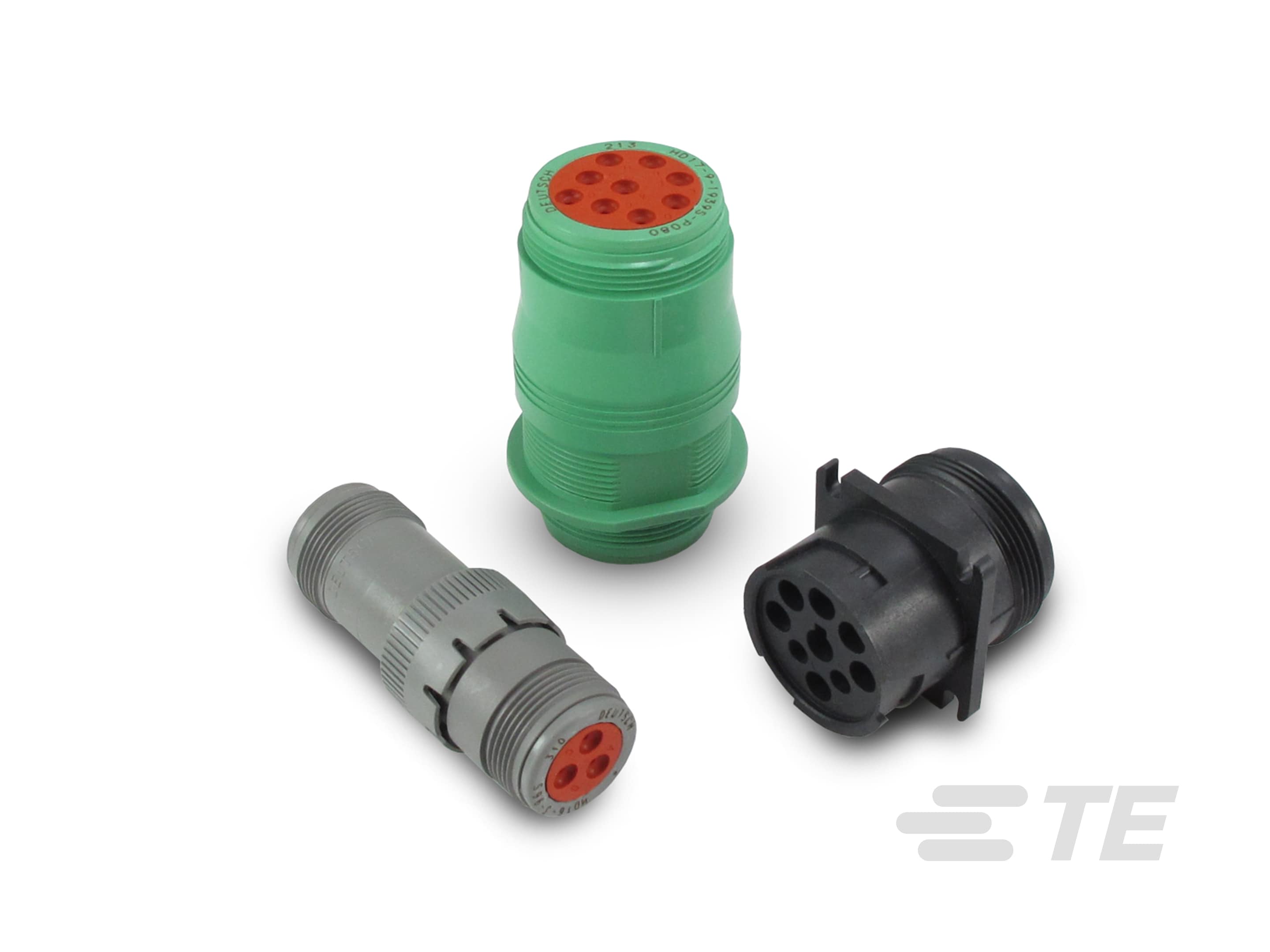

DEUTSCH HD10 Housings

DEUTSCH

DEUTSCH HD
DEUTSCH HD10

DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating. HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 DEUTSCH contacts (100-13 amps).

More Less

Product Features

Connector System: Wire-to-Wire
Sealable: Yes
Connector & Contact Terminates To: Wire & Cable
Circuit Application: Power & Signal
Operating Temperature (Max)(°C): 125

Available from

Product	TE Part #	Documents	Number of Positions	Connector & Housing Type	Mating Pin Diameter	Primary Product Color	Contact Current Rating (Max)	Connector Mounting Type	Nominal Voltage Architecture
INL REC ASM Buy on te.com	HD14-9-16P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
INL REC ASM Buy on te.com	HD14-9-1939PE	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-6-12P	Product Drawing 3D PDF	6	Housing for Male Terminals	1.59 mm	Gray	25 A	Panel Mount	12 V, 24 V
INL REC ASM Buy on te.com	HD14-9-96P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-6-96P	Product Drawing 3D PDF	6	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
PLUG ASM Buy on te.com	HD16-9-96S	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
RECP ASM Buy on te.com	HD10-9-96P-B025	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V
INL REC ASM Buy on te.com	HD14-9-96P-C016	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-9-96P-B009	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
RECP ASM Buy on te.com	HD10-9-1939P-BP03	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Green	13 A	Panel Mount	12 V, 24 V, 48 V
RECP ASM, J1939 TYPE 2 Buy on te.com	HD10-9-1939P-P080	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Green	13 A	Panel Mount	12 V, 24 V, 48 V
INL REC ASM Buy on te.com	HD14-3-96P	Product Drawing 3D PDF	3	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM Buy on te.com	HD16-6-12S	Product Drawing 3D PDF	6	Housing for Female Terminals	2.39 mm	Gray	25 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-3-96P	Product Drawing 3D PDF	3	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
PLUG ASM Buy on te.com	HD17-9-1939S-P080	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Green	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-5-16P	Product Drawing 3D PDF	5	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
SQ FG REC ASM Buy on te.com	HD10-9-96PE-B009	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
RECP ASM Buy on te.com	HD10-9-96PE-B025	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V
Rcpt, 9-96, E-Seal, D-Hole, HD10 Buy on te.com	YHD10-9-96PE-BE090	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
INL REC ASM Buy on te.com	HD14-6-12P	Product Drawing 3D PDF	6	Housing for Male Terminals	2.39 mm	Gray	25 A	Cable Mount (Free-Hanging)	12 V, 24 V
RECP ASM Buy on te.com	HD14-9-1939P-P080	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Green	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM	HD10-9-16P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
SQ FG REC ASM	HD10-9-96PE	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
INL REC ASM	HD14-9-1939P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-9-16S	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
INL REC ASM	HD14-6-96P	Product Drawing 3D PDF	6	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-5-16S	Product Drawing 3D PDF	5	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-3-16S	Product Drawing 3D PDF	3	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-9-1939SE	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM	HD10-5-16P-B009	Product Drawing 3D PDF	5	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
PLG, 6P, GRY, N, THRD, 16	HD16-6-96S	Product Drawing 3D PDF	6	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-6-12S-B010	Product Drawing 3D PDF	6	Housing for Female Terminals	2.39 mm	Gray	25 A	Cable Mount (Free-Hanging)	12 V, 24 V
INL REC ASM	HD14-5-16P	Product Drawing 3D PDF	5	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-9-1939S	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM	HD10-9-96P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
INL REC ASM	HD14-3-16P	Product Drawing 3D PDF	3	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD17-9-1939S	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-3-96S	Product Drawing 3D PDF	3	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
RECP ASM	HD10-9-1939P-B022	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V, 48 V
RECP ASM	HD10-9-1939PE-B022	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V, 48 V
INL REC ASM	HD14-9-96PE	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM	HD10-9-1939P	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V, 48 V
PLUG ASM	HD16-9-1939S-P080	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Green	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
SQ FG REC ASM	HD10-9-1939PE	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Black	13 A	Panel Mount	12 V, 24 V, 48 V
SQ FG REC ASM	HD10-6-12P-E004	Product Drawing 3D PDF	6	Housing for Male Terminals	2.39 mm	Black	25 A	Panel Mount	12 V, 24 V
SQ FG REC ASM	HD10-9-16P-B009	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
RECP ASM	HD10-9-1939PE-BP03	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Green	13 A	Panel Mount	12 V, 24 V, 48 V
RECP ASM	HD10-9-1939PE-P080	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Green	13 A	Panel Mount	12 V, 24 V, 48 V
RECP ASM	HD10-9-96P-BE09	Product Drawing 3D PDF	9	Housing for Male Terminals	1.59 mm	Gray	13 A	Panel Mount	12 V, 24 V
PLUG ASM	HD16-9-1939SE-P080	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Green	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-9-96S-C016	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD16-9-96SE	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Gray	13 A	Cable Mount (Free-Hanging)	12 V, 24 V
PLUG ASM	HD17-9-1939SE	Product Drawing 3D PDF	9	Housing for Female Terminals	1.59 mm	Black	13 A	Cable Mount (Free-Hanging)	12 V, 24 V

Overview

DEUTSCH HD10 housings are heavily used for diagnostic applications.

Series Overview

Accepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)
6-20 AWG (16.00-0.50 mm2)
3, 4, 5, 6, and 9 cavity arrangements
In-line, flange, or PCB mount
Circular, thermoplastic housing
Coupling ring for mating
Available accessories: Backshells, boots, dust caps, gaskets, lanyards, mounting clips, strain relief

Additional DEUTSCH HD10 products

VIEW ALL DEUTSCH HD10 PRODUCTS
DEUTSCH HD10 connectors are an environmentally sealed, thermoplastic, and cylindrical connector series.

FAQ

Frequently Asked Questions

Q: What is an HD10 connector?

A: DEUTSCH HD10 environmentally sealed connectors are designed for cable to cable and cable to board applications. The HD10 connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for HD10 connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Shape Circular
Connector System Wire-to-Wire
Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Primary Locking Feature Contact Retainer
Mixed & Hybrid Connector No, Yes

Configuration Features

Connector Seal Code E Seal
Connector Modification Blocked Cavities, J1939 Type II, Key Removed From Front of Flange, No Coupling Ring, Non-Threaded Rear, Non-Threaded Rear, Key Removed From Flange, Threaded Rear, With Coupling Ring
Number of Positions 3, 4, 5, 6, 9
Blank Cavity Position 0, H, J

Electrical Characteristics

Operating Voltage (VAC) 250
Operating Voltage (VDC) 250
Nominal Voltage Architecture (V) 12, 24, 48

Body Features

Cable Exit Angle 180°
Primary Product Color Black, Gray, Green

Contact Features

Contact Type Pin, Socket
Contact Size Size 12, Size 16, Size 4
Mating Pin Diameter (mm) 1.59, 2.39, 5.72
Mating Pin Diameter (in) .063, .094, .225
Contact Current Rating (Max) (A) 13, 25, 100

Mechanical Attachment

Mating Alignment With
Mating Alignment Type Polarization Rib, Polarization Slot, Polarized, Polarizing Rib
Strain Relief Add By Accessory
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount
Terminal Position Assurance No

Housing Features

Housing Material PA GF

Dimensions

Compatible Insulation Diameter Range (mm) 1.35 – 3.05, 2.54 – 3.81, 3.4 – 4.32, 7.11 – 7.42
Compatible Insulation Diameter Range (in) .053 – .12, .1 – .15, .134 – .17, .28 – .292
Product Length (mm) 40.61, 40.87, 40.88, 41.12, 41.46, 41.55, 41.58, 41.63, 42.18, 42.24
Product Length (in) 1.599, 1.609, 1.619, 1.632, 1.636, 1.637, 1.639, 1.66, 1.663
Product Width (mm) 21.77, 21.92, 25.43, 27.14, 29.57, 30.94, 31.55, 32.31, 32.49, 36.5, 36.91, 38.94, 40.39, 40.51, 44.45
Product Width (in) .857, .863, 1.001, 1.069, 1.164, 1.218, 1.242, 1.272, 1.279, 1.437, 1.453, 1.533, 1.59, 1.595, 1.75
Connector Height (mm) 21.77, 21.92, 25.43, 27.14, 29.57, 30.94, 31.55, 32.31, 32.49, 36.5, 36.91, 38.94, 40.39, 40.51, 41.28
Connector Height (in) .857, .863, 1.001, 1.069, 1.164, 1.218, 1.242, 1.252, 1.272, 1.279, 1.437, 1.453, 1.533, 1.59, 1.595, 1.625

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power & Signal

Industry Standards

UL Flammability Rating UL 94V-1
Degree of Protection IP68, IP6K9K

Packaging Features

Packaging Method Box
Packaging Quantity 250, 500, 750

Other

Connector Position Assurance Capable No
Serviceable Yes

Reference Number

TE Internal Number CAT-H3910-CH8172
