S-BEAM WATERPROOF LOAD CELL

S-BEAM WATERPROOF LOAD CELL-CAT-FLS0039
  • MEAS
The FN9040 is specially designed for overseeing manufacturing processes. It measures with high consistency the regularity of compression load generated when fitting pieces.
More Less

Product Features

  • Force Load Cell Sensor Type : Force Load Cells

  • Force Direction : Tension, Compression

  • Full Scale Range (Newton): 1000 - 100000

  • Full Scale Range (lbf): 200 - 20000

  • Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]

Available from

LADD Inc

Build and price the product now

Overview

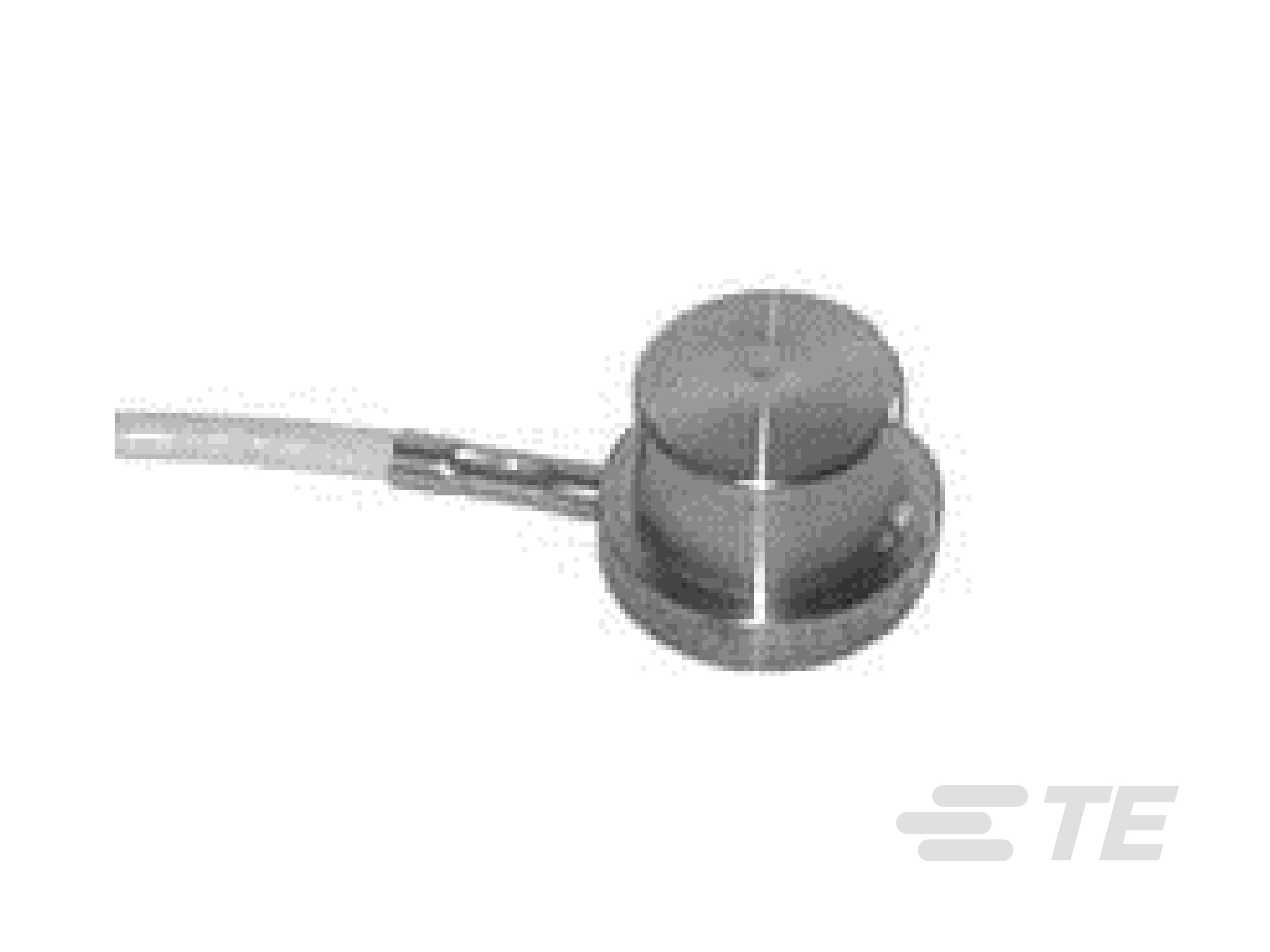

With its compact design and robust construction, the sensor easily integrates into industrial environments for use in applications such as printing, embossing, or other mounting controls. The FN9040 features a spherical load button for better load distribution. The FN9040 sensitivity is adjusted to 1.5mV/V and multiple sensors can be used in parallel or easy to replace in case of maintenance of an assembly machinery. On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

Benefits

  • Small size
  • Spherical load button
  • Easy installation
  • Ranges from 0-1 kN to 0-100 kN
  • Deflection at full scale < 50µm
  • Natural frequency > 20 kHz
  • Global accuracy < 1% FS

Applications

  • Process Control Equipment
  • Printing Embossing
  • Laboratory and Research
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Load Cell Sensor Type  Force Load Cells

Other

  • Force Direction  Tension, Compression

  • Zero Shift in CTR (%FS/°C) ±.4/50

  • Sensitivity Shift (%FS/°C) ±.5/50

Electrical Characteristics

  • Full Scale Range (Newton) 1000 - 100000

  • Full Scale Range (lbf) 200 - 20000

  • Supply Voltage Range (VDC) 5

Usage Conditions

  • Operating Temperature Range  -30 – 100 °C [ -22 – 212 °F ]

  • Accuracy (% of FS) ±.05

Industry Standards

  • IP Rating  IP54

Operation/Application

  • Output Signal Type  ±1 mV/V, ±2 mV/V

Reference Number

  • TE Internal Number CAT-FLS0039
