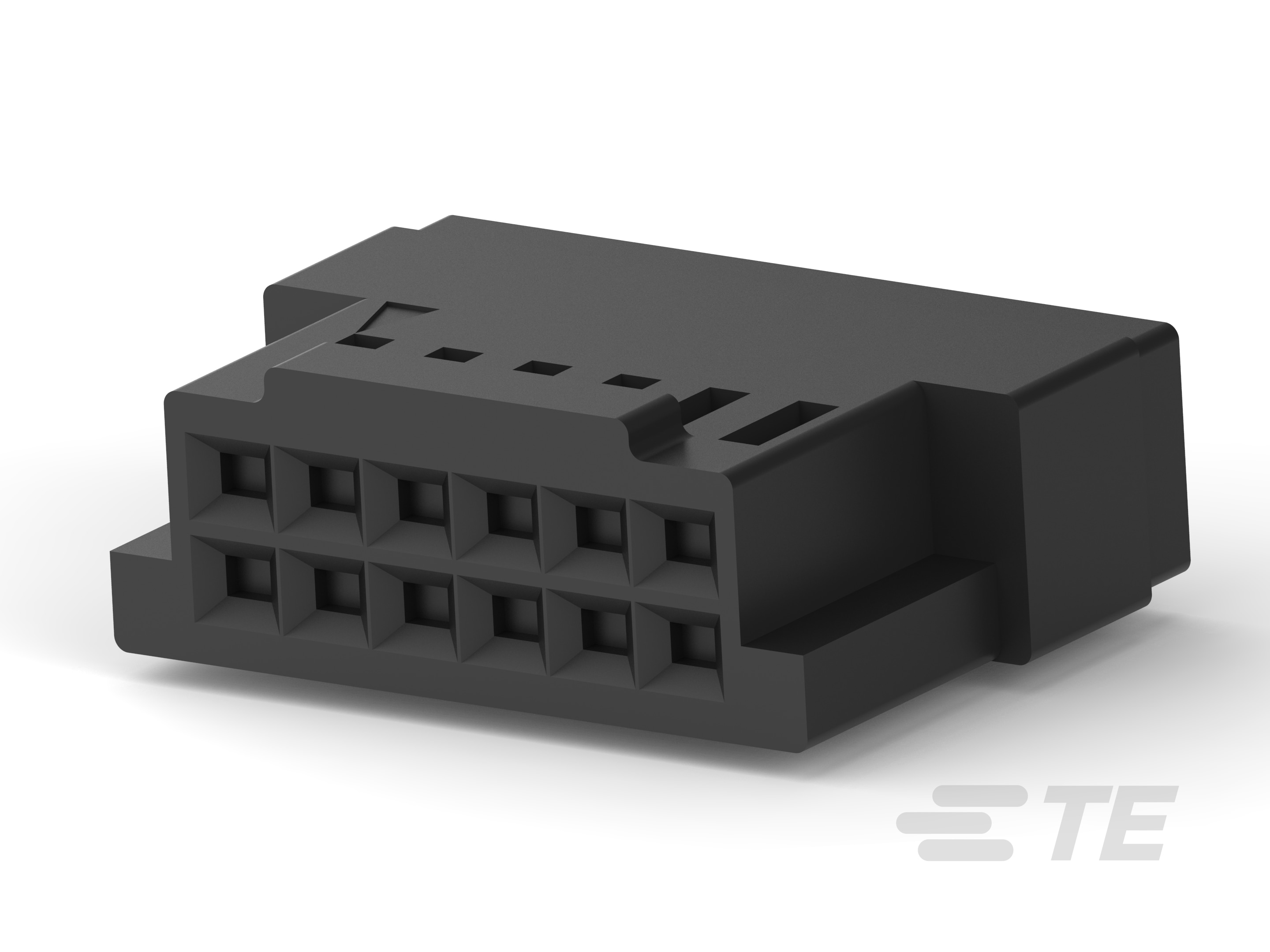

2.54mm FFC Connectors Receptacle Housing

More Less

Connect with Us

Product Features

FFC Connector Product Type : Housing
Connector System : Wire-to-Board
Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 24 | 25 | 26 | 28 | 29 | 30 | 32 | 34 | 35 | 36 | 38 | 40 | 44 | 50 | 58 | 60 | 66 | 70
Centerline (Pitch) : 2.54 mm [ .1 in ]
Number of Rows : 1 | 2

Available from

Product	TE Part #	Documents	Number of Positions	Number of Rows	Contact Type	Packaging Method	Mating Retention	Insertion Force Type	Mating Alignment	FFC Cable Entry	Panel Mount Feature	Primary Product Color	Contact Current Rating (Max)	Operating Temperature Range	EU RoHS Compliance
028 HOUSING FFC RCPT 100CL DR	2-86673-2	Product Drawing 3D PDF	28	2	Socket	Package	Without	Normal	With	Vertical	Without	Black	-	-65 – 105 °C	-
40 POS RCPT HSG W/EARS UNM	88013-1	Product Drawing 3D PDF	40	2	Socket	Package	Without	Normal	Without	Vertical	With	Black	-	-65 – 105 °C	-
020 HOUSING FFC RCPT DR 100CL	88179-5	Product Drawing 3D PDF	20	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
038 HOUSING FFC RCPT DR 100CL	88179-6	Product Drawing 3D PDF	38	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
018 HOUSING FFC RCPT DR 100CL	1-88179-0	Product Drawing 3D PDF	18	2	Socket	Bag	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
050 HOUSING FFC RCPT DR 100CL	1-88179-2	Product Drawing 3D PDF	50	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
024 HOUSING FFC RCPT DR 100CL Buy on te.com	1-88179-4	Product Drawing 3D PDF	24	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
028 HOUSING FFC RCPT DR 100CL Buy on te.com	1-88179-8	Product Drawing 3D PDF	28	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
040 HOUSING FFC RCPT DR 100CL	2-88179-1	Product Drawing 3D PDF	40	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
040 HOUSING FFC RCPT DR 100CL	2-88179-2	Product Drawing 3D PDF	40	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
044 HOUSING FFC RCPT DR 100CL	2-88179-4	Product Drawing 3D PDF	44	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
010 HOUSING FFC RCPT DR 100CL Buy on te.com	3-88179-0	Product Drawing 3D PDF	10	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
006 HOUSING FFC RCPT DR 100CL	3-88179-2	Product Drawing 3D PDF	6	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
012 HOUSING FFC RCPT DR 100CL	3-88179-4	Product Drawing 3D PDF	12	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
034 HOUSING FFC RCPT DR 100CL Buy on te.com	3-88179-6	Product Drawing 3D PDF	34	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
030 HOUSING FFC RCPT DR 100CL	3-88179-8	Product Drawing 3D PDF	30	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
022 HOUSING FFC RCPT DR 100CL	4-88179-2	Product Drawing 3D PDF	22	2	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
018 HOUSING FFC PIN DR 100CL	88189-4	Product Drawing 3D PDF	18	2	Pin	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
020 HOUSING FFC PIN DR 100CL	88189-6	Product Drawing 3D PDF	20	2	Pin	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
024 HOUSING FFC PIN DR 100CL Buy on te.com	88189-8	Product Drawing 3D PDF	24	2	Pin	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
038 HOUSING FFC PIN DR 100CL	88190-2	Product Drawing 3D PDF	38	2	Pin	Package	With	Normal	With	Vertical	With	Black	-	-65 – 105 °C	-
018 HOUSING FFC PIN DR 100CL	88190-6	Product Drawing 3D PDF	18	2	Pin	Package	With	Normal	With	Vertical	With	Black	-	-65 – 105 °C	-
020 HOUSING FFC PIN DR 100CL Buy on te.com	88190-8	Product Drawing 3D PDF	20	2	Pin	Package	With	Normal	With	Vertical	With	Black	-	-65 – 105 °C	-
016 HOUSING FFC RCPT DR 100CL	88637-3	Product Drawing 3D PDF	16	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
018 HOUSING FFC RCPT DR 100CL Buy on te.com	88637-9	Product Drawing 3D PDF	18	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
018 HOUSING FFC RCPT DR 100CL	1-88637-0	Product Drawing 3D PDF	18	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
020 HOUSING FFC RCPT DR 100CL	1-88637-1	Product Drawing 3D PDF	20	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
020 HOUSING FFC RCPT DR 100CL	1-88637-2	Product Drawing 3D PDF	20	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
024 HOUSING FFC RCPT DR 100CL	1-88637-3	Product Drawing 3D PDF	24	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
024 HOUSING FFC RCPT DR 100CL	1-88637-4	Product Drawing 3D PDF	24	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
026 HOUSING FFC RCPT DR 100CL	1-88637-5	Product Drawing 3D PDF	26	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
028 HOUSING FFC RCPT DR 100CL	1-88637-7	Product Drawing 3D PDF	28	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
038 HOUSING FFC RCPT DR 100CL	2-88637-1	Product Drawing 3D PDF	38	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
040 HOUSING FFC RCPT DR 100CL	2-88637-3	Product Drawing 3D PDF	40	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
040 HOUSING FFC RCPT DR 100CL Buy on te.com	2-88637-4	Product Drawing 3D PDF	40	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
044 HOUSING FFC RCPT DR 100CL	2-88637-5	Product Drawing 3D PDF	44	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
044 HOUSING FFC RCPT DR 100CL	2-88637-6	Product Drawing 3D PDF	44	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
050 HOUSING FFC RCPT DR 100CL	2-88637-7	Product Drawing 3D PDF	50	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
058 HOUSING FFC RCPT DR 100CL	2-88637-9	Product Drawing 3D PDF	58	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
058 HOUSING FFC RCPT DR 100CL	3-88637-0	Product Drawing 3D PDF	58	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
060 HOUSING FFC RCPT DR 100CL	3-88637-1	Product Drawing 3D PDF	60	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
060 HOUSING FFC RCPT DR 100CL Buy on te.com	3-88637-2	Product Drawing 3D PDF	60	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
066 HOUSING FFC RCPT DR 100CL	3-88637-3	Product Drawing 3D PDF	66	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
070 HOUSING FFC RCPT DR 100CL	3-88637-5	Product Drawing 3D PDF	70	2	Socket	Package	With	Normal	With	Straight	With	Black	-	-65 – 105 °C	-
006 HOUSING FFC RCPT SR 100CL Buy on te.com	88859-1	Product Drawing 3D PDF	6	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
008 HOUSING FFC RCPT SR 100CL Buy on te.com	88859-2	Product Drawing 3D PDF	8	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
010 HOUSING FFC RCPT SR 100CL	88859-3	Product Drawing 3D PDF	10	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
012 HOUSING FFC RCPT SR 100CL	88859-4	Product Drawing 3D PDF	12	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
013 HOUSING FFC RCPT SR 100CL Buy on te.com	88859-5	Product Drawing 3D PDF	13	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-
015 HOUSING FFC RCPT SR 100CL	88859-6	Product Drawing 3D PDF	15	1	Socket	Package	With	Normal	With	Straight	Without	Black	-	-65 – 105 °C	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector & Housing Type Plug | Receptacle
Connector & Contact Terminates To Wire & Cable
FFC Connector Product Type Housing
Connector System Wire-to-Board
Insertion Force Type Normal | Zero Insertion Force (ZIF)

Configuration Features

Number of Positions 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 24 | 25 | 26 | 28 | 29 | 30 | 32 | 34 | 35 | 36 | 38 | 40 | 44 | 50 | 58 | 60 | 66 | 70
Number of Rows 1 | 2

Electrical Characteristics

Insulation Resistance (MΩ) 5000
Dielectric Withstanding Voltage (Max) (VAC) 720
Operating Voltage (VAC) 300

Body Features

Primary Product Color Black | Blue

Contact Features

Contact Type Pin | Socket
Contact Current Rating (Max) (A) 2

Mechanical Attachment

Mating Alignment Type Polarization
Mating Retention Type Detent | Detent Window | Latch
Panel Mount Feature Type Mounting Ears
Mating Retention With | Without
Mating Alignment With | Without
Panel Mount Feature With | Without
Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material Nylon | Nylon GF | PBT GF | Polyamide | Thermoplastic
Centerline (Pitch) 2.54 mm [ .1 in ]
FFC Cable Entry Straight | Vertical

Dimensions

Row-to-Row Spacing 2.54 mm [ .1 in ]

Usage Conditions

Operating Temperature Range (°C) -65 – 105 | -55 – 105 | -40 – 105
Operating Temperature Range (°F) -85 – 221 | -67 – 221 | -40 – 221

Operation/Application

Circuit Application Signal

Industry Standards

UL Flammability Rating UL 94V-0

Packaging Features

Packaging Quantity 1 | 100 | 250 | 300 | 400 | 500 | 600 | 750 | 800 | 1000
Packaging Method Bag | Box | Carton | Kit | Package

Reference Number

TE Internal Number CAT-F439-R2435254

Related Materials

No documentation available.
