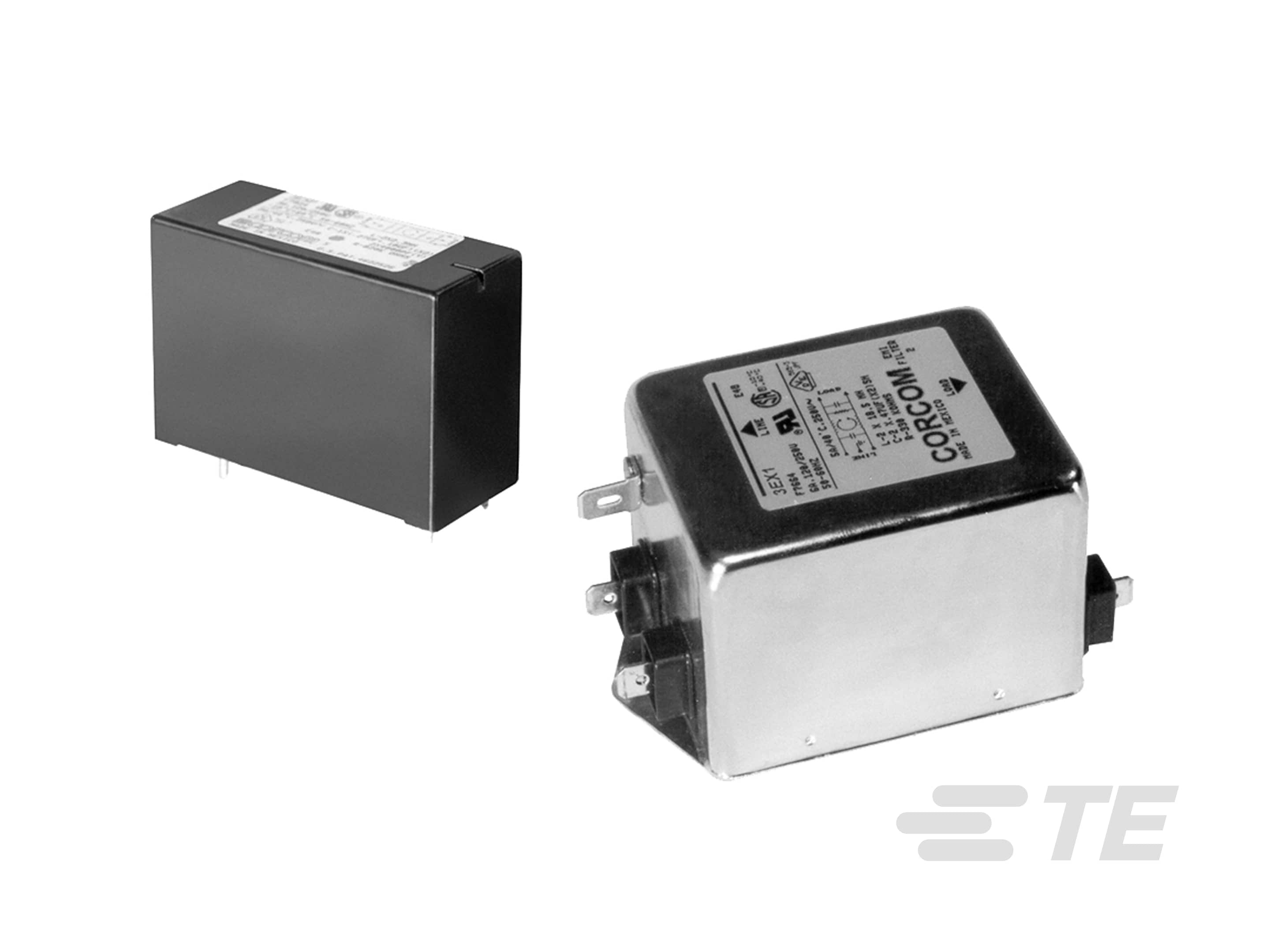

Single Phase Filters, Corcom Z Series

Single Phase Filters, Corcom Z Series-CAT-C8114-Z1
  • Corcom
|
  • Corcom Z
Chassis or PC board mountable power line filters for emission control. Designed to bring most digital equipment (including those with switching power supplies) into compliance with EN55022, Level B and FCC Part 15J, Class B conducted emission limits.
More Less

Product Features

  • Current Rating (A): 1, 2, 3

  • Input Termination Type : FASTON, PCB Pin

  • Output Termination Type : .250" FASTON, PCB Pins .065" Diagonal

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .3

  • Leakage Current (Max) (250VAC, 50Hz) (mA): .5

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  FASTON, PCB Pin

  • Output Termination Type  .250" FASTON, PCB Pins .065" Diagonal

Electrical Characteristics

  • Current Rating (A) 1, 2, 3

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .3

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .5

  • Operating Voltage (VAC) 250

Mechanical Attachment

  • Product Mount Type  Board Mount

  • Panel Mount Feature Type  Flange

Reference Number

  • TE Internal Number CAT-C8114-Z1
