CORCOM L SERIES MULTI-FUNCTION INLET FIL

CORCOM L SERIES MULTI-FUNCTION INLET FIL-CAT-C8114-L1

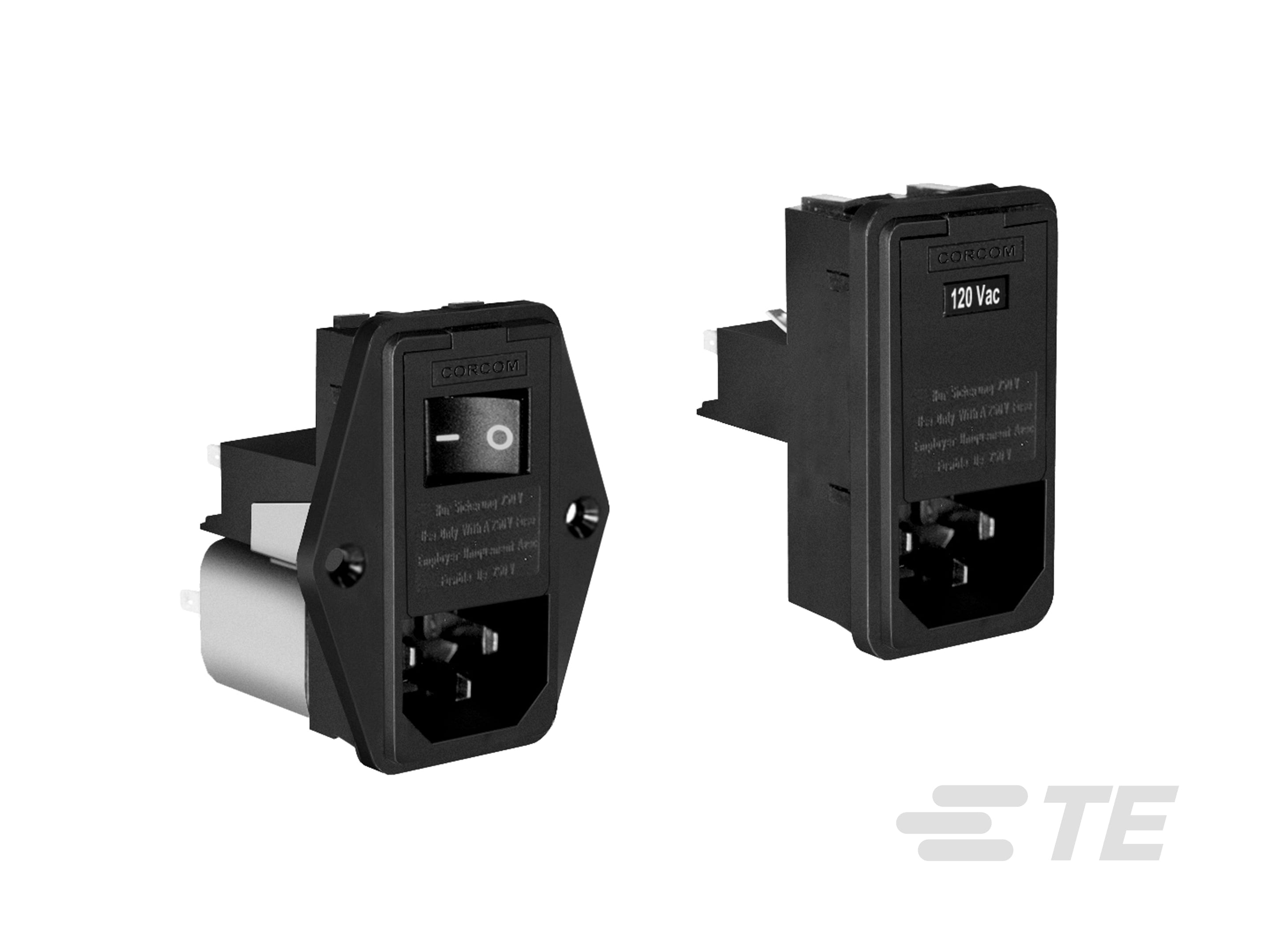

Dual configuration power entry module with switch or fuse.
More Less

Product Features

  • Filter Type : Power Entry Module

  • Input Voltage Selection : Quad AC | Single AC

  • Filter Switch Type : DPST | No Switch

  • Filter Shield Type : Complete Can | Filter Shield

  • Product Orientation : Vertical

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Choke Option  No

  • Filter Type  Power Entry Module

  • Filter Switch Type  DPST | No Switch

  • Output Termination Type  .110" FASTON

  • Filtering Requirements  Filtered | Unfiltered

  • Filter Connector Type  IEC 320/C-14

Configuration Features

  • Fuse Options  Dual | Single

Electrical Characteristics

  • Input Voltage Selection  Quad AC | Single AC

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 2 | 250

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 5 | 500

  • Current Rating (A) 2 | 4 | 6

  • Operating Voltage (VAC) 100 | 120 | 230 | 240

Body Features

  • Filter Shield Type  Complete Can | Filter Shield

  • Product Orientation  Vertical

Mechanical Attachment

  • Panel Mount Feature Type  Flange | Snap-In

Reference Number

  • TE Internal Number CAT-C8114-L1
