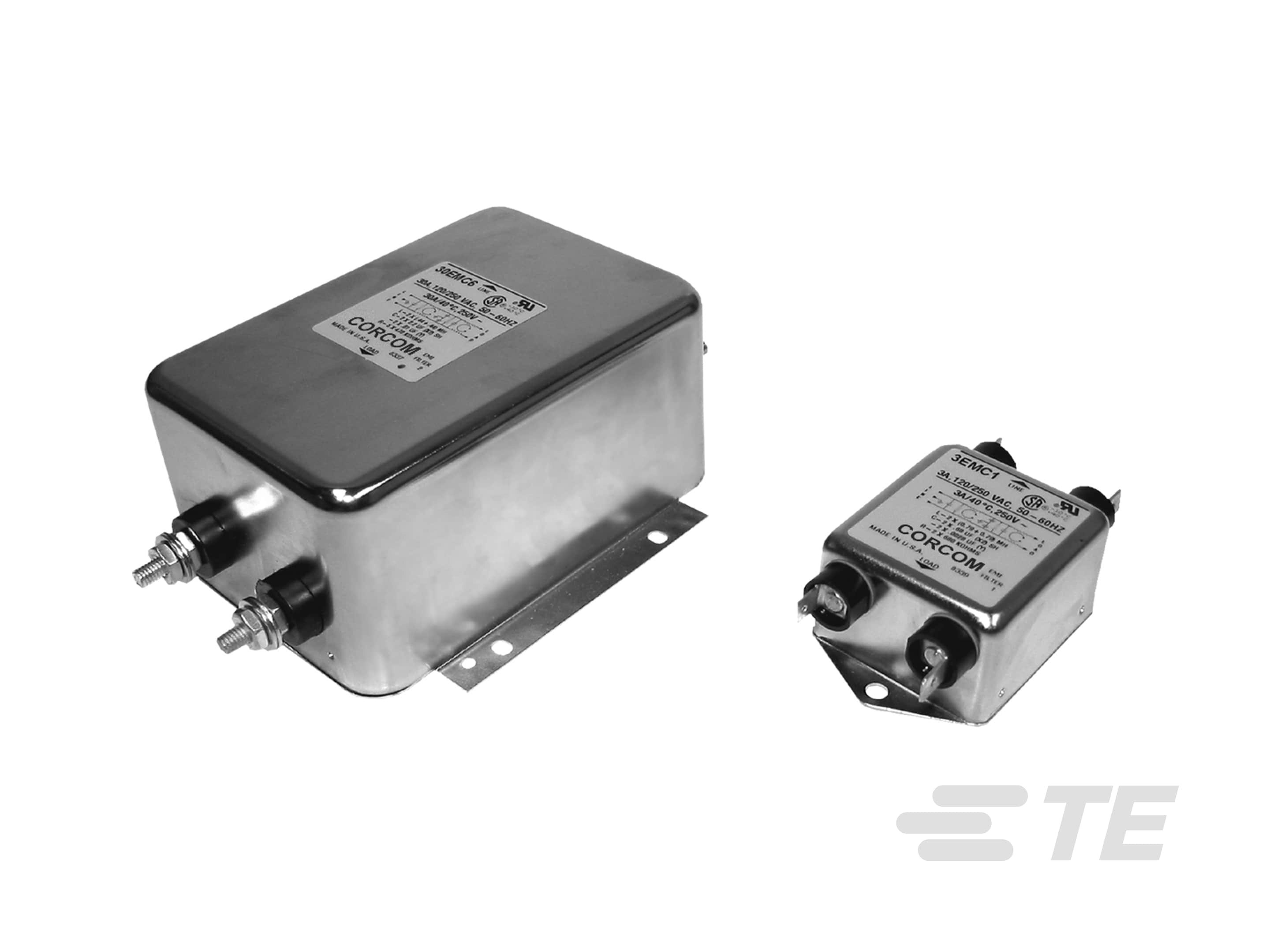

Single Phase Filters, Corcom EMC Series

Single Phase Filters, Corcom EMC Series-CAT-C8114-EM21
  • Corcom
|
  • Corcom EMC
Compact and Cost-effective Dual Stage RFI Power Line Filters. Compact dual stage filter series.
More Less

Product Features

  • Current Rating (A): 3 | 6 | 10 | 15 | 20 | 30

  • Input Termination Type : 10-32 Stud | 8-32 Stud | FASTON | Wire Lead

  • Output Termination Type : .250" FASTON | 10-32 Stud | 8-32 Stud | Wire Lead

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .21 | .73

  • Leakage Current (Max) (250VAC, 50Hz) (mA): .36 | 1.27

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  10-32 Stud | 8-32 Stud | FASTON | Wire Lead

  • Output Termination Type  .250" FASTON | 10-32 Stud | 8-32 Stud | Wire Lead

Electrical Characteristics

  • Current Rating (A) 3 | 6 | 10 | 15 | 20 | 30

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .21 | .73

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .36 | 1.27

  • Operating Voltage (VAC) 250

Mechanical Attachment

  • Panel Mount Feature Type  Flange

Reference Number

  • TE Internal Number CAT-C8114-EM21
