Resistor High Value / High Voltage HVR20

Resistor High Value / High Voltage HVR20-CAT-C339-H99A
  • CGS
|
  • CGS HVR

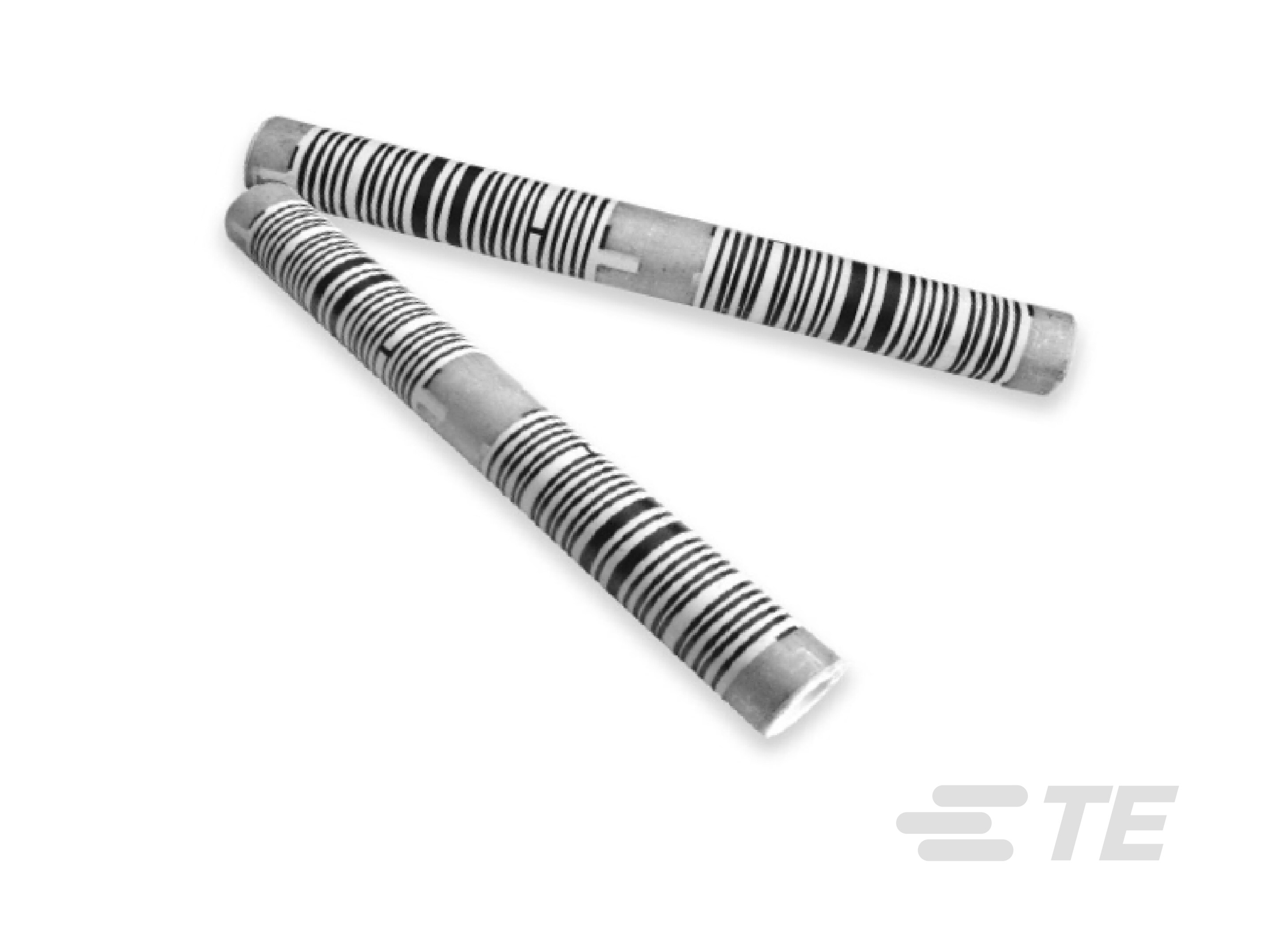

High Value / High Voltage Resistor Thick Film 15W at 20°C 10W at 70°C in Free Air 30W at 20°C in Oil 3 Terminal Style Options.
More Less

Product Features

  • Resistor Type : High Value/High Voltage Resistors

  • Number of Terminations : 2

  • Packaging Method : Loose Piece - Box

  • Passive Component Tolerance (%): 1, 5

  • Element Type : Thick Film

Available from

LADD Inc

Build and price the product now

Overview

High Value / High Voltage Resistor Thick Film 15W at 20°C 10W at 70°C in Free Air 30W at 20°C in Oil 3 Terminal Style Options.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Resistor Type  High Value/High Voltage Resistors

  • Element Type  Thick Film

Configuration Features

  • Number of Resistors  1

Electrical Characteristics

  • Operating Voltage (V) 20000

  • Passive Component Tolerance (%) 1, 5

  • Resistance Class  1kΩ – 1MΩ, 1MΩ – 1GΩ

  • Resistance Value (Ω) 11M, 470K

  • Power Rating (W) 15, 30

Termination Features

  • Number of Terminations  2

  • Chassis Mount Resistor Termination Type  Silver Ferrule, Tapped Brass Ferrule

Usage Conditions

  • Temperature Coefficient (ppm/°C) ±300

Packaging Features

  • Packaging Method  Loose Piece - Box

Reference Number

  • TE Internal Number CAT-C339-H99A
