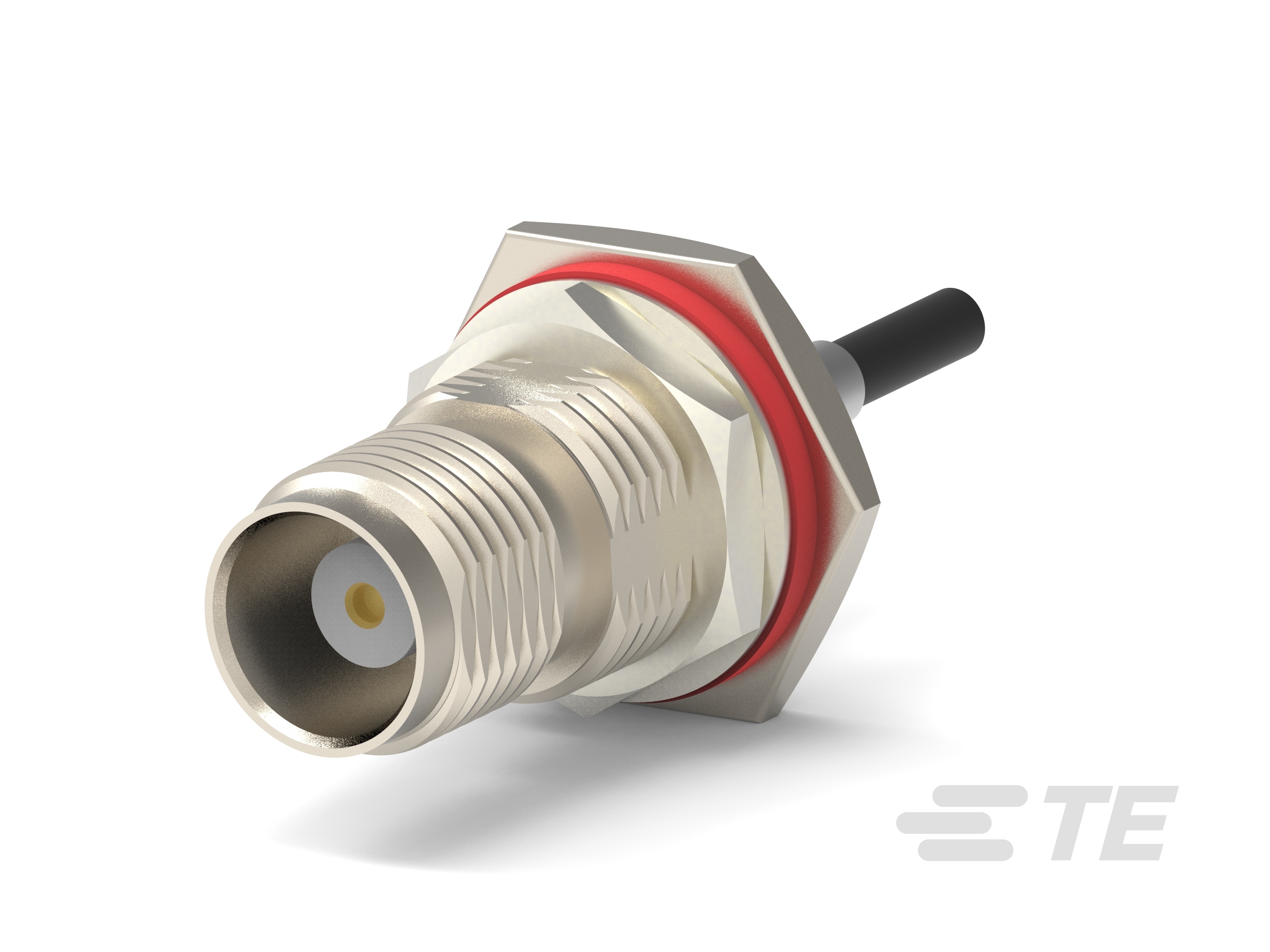

TNC Connector: Jack, 50 Ohm

Please review product documents or contact us for the latest agency approval information.

• Connector Seal & Plug Type  Gasket

• Connector Shape  Circular

• RF Interface  TNC

• RF Connector Style  Jack

• Compatible With RF Cable Type  RG 141, RG 141A, RG 174, RG 188, RG 316, RG 58, RG 58A, RG 58B, RG 58C

• Connector System  Cable-to-Board, Cable-to-Cable, Cable-to-Panel

• Sealable  No, Yes

• Connector & Contact Terminates To  Wire & Cable

• Number of Positions  1

• Number of Coaxial Contacts  1

• Impedance (Ω) 50

• Cable Connector Orientation  Straight

• Body Material  Brass, Die Cast Zinc, Zinc

• Body Plating Material  Nickel

• Crimp Type  Dual

• RF Connector Center Contact Plating Material  Gold

• RF Connector Center Contact Material  Beryllium Copper

• RF Connector Center Contact Underplating Material  Nickel

• Termination Method to Wire & Cable  Crimp

• PCB Mount Retention  Without

• RF Connector Coupling Mechanism  Screw, Threaded

• Connector Mounting Type  Panel Mount

• RF Contact Captivation Method  Mechanical

• Detent  With, Without

• RF Connector Mated Outer Diameter (Approximate)  16.26 mm [ .64 in ]

• Panel Thickness (Recommended)  6.35 mm [ .25 in ]

• Operating Temperature Range  -55 – 85 °C [ -67 – 185 °F ]

• Operating Frequency (GHz) 4, 11

• Packaging Method  Carton

• Grade  Commercial

• Dielectric Material  Polymethylpentene
