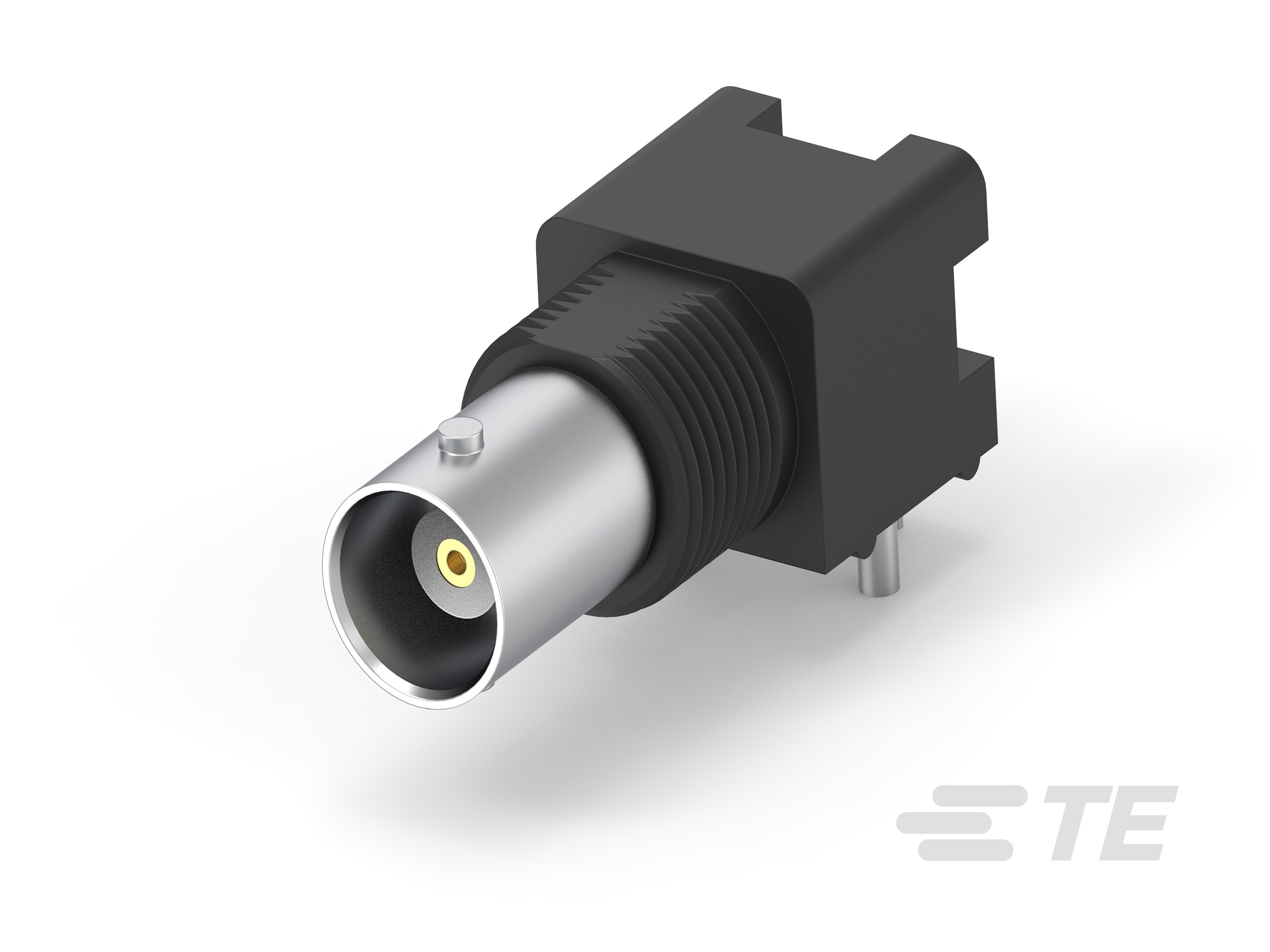

BNC RF Connector: Male (Jack), Right Angle

BNC Right Angle Male (Jack) RF Connector, 50 Ohm, 14.53mm Mated Outer Diameter, Bayonet Coupling Mechanism

Product Features

RF Interface: BNC
RF Connector Style: Jack
RF Connector Mated Outer Diameter (Approximate)(mm): 14.53
Impedance(Ω): 50
RF Connector Coupling Mechanism: Bayonet

Available from

Product	TE Part #	Documents	Compatible With RF Cable Type	Connector System	Connector Mounting Type	Termination Method to Wire & Cable	Cable Connector Orientation	Body Material	Body Material Finish	Body Plating Material	RF Contact Captivation Method	RF Connector Center Contact Plating Material	Dielectric Material	RF Connector Center Contact Material	Packaging Method	Detent
RTANG JACK,BNC PCB Buy on te.com	5226990-3	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Polyester, PBT	-	Polyester	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	5227161-1	3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JACK W/MTG PINS,BNC PCB Buy on te.com	5227161-9	3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JACK W/MTG PINS,BNC PCB Buy on te.com	1-5227161-7	3D PDF	-	Cable-to-Board	Panel Mount	-	-	Polyester, PBT	-	-	Solder	Gold	Polymethylpentene	Phosphor Bronze	Package	With
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	5227161-3	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
JACK,RTANG, PCB,50 OHM, BNC Buy on te.com	5413631-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Beryllium Copper	Package	With
PCB-BNC RT ANGLE JACK W/O POST Buy on te.com	5226990-6	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Polyester, PBT	-	Polyester	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JACK, BNC PCB Buy on te.com	5226990-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Polyester, PBT	-	Polyester	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
JACK ASSY,RTANG,BNC Buy on te.com	5413879-1	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB RT ANG JACK W/POST Buy on te.com	5227677-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB RT ANGLE Buy on te.com	5227661-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tray	With
RTANG JACK W/MTG PINS, BNC PCB Buy on te.com	5227161-7	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Gold	Polymethylpentene	Phosphor Bronze	Box & Tube, Tube	With
JACK, RTANG, PCB, 50 OHM, BNC Buy on te.com	5415025-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	Crimp	-	Zinc	-	Tin	Mechanical	Gold	Polymethylpentene, PTFE	Phosphor Bronze	Tray	With
JACK ASSY,RTANG,BNC Buy on te.com	5413879-2	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
RTANG JACK W/MTG PINS,BNC PCB Buy on te.com	1-5227161-6	3D PDF	-	Cable-to-Board	Panel Mount	-	-	Polyester, PBT	-	-	Solder	Gold	Polymethylpentene	Phosphor Bronze	Package	With
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	227161-1	3D PDF	-	Cable-to-Board, Cable-to-Panel	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	227161-2	3D PDF	-	Cable-to-Board, Cable-to-Panel	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	227161-6	3D PDF	-	Cable-to-Board, Cable-to-Panel	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
BNC PCB RT ANG JACK W/POST Buy on te.com	227677-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JK W/FLANGES, BNC PCB Buy on te.com	5226978-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	Straight	VALOX	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	Without
RTANG JK W/FLANGES, BNC PCB Buy on te.com	5226978-3	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	Straight	VALOX	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	Without
RTANG JK W/MTG PINS, BNC PCB Buy on te.com	5227161-2	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB RT ANGLE JACK Buy on te.com	5227676-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB RT ANGLE JACK Buy on te.com	227676-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
JACK, R/A, 50 OHM, BNC, PCB Buy on te.com	5415218-5	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
JACK,PCB,50 OHM,BNC Buy on te.com	414373-1	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
RTANG JACK, BNC PCB	226990-1	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	VALOX	-	Zinc	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
JACK, RTANG, PCB, 50 OHM, BNC	5415025-2	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	Crimp	-	Zinc	-	Tin	Mechanical	Gold	PTFE	Phosphor Bronze	Tray	With
RTANG JK W/MTG PINS, BNC PCB	5227161-6	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
JACK,PCB,50 OHM,BNC	5414373-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
RTANG JACK W/MTG PINS,BNC PCB	1-5227161-8	3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Solder	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB JACK R/A 50 OHM	1274668-1	Product Drawing 3D PDF	RG 58C/U	Cable-to-Board	Panel Mount	-	-	Die Cast Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	Without
RTANG JK W/FLANGES, BNC PCB	226978-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JK W/FLANGES, BNC PCB	226978-3	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JACK,BNC PCB	226990-3	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	VALOX	-	Zinc	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
PCB-BNC RT ANGLE JACK W/O POST	226990-6	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	VALOX	-	Zinc	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
RTANG JACK W/MTG PINS, BNC PCB	227161-7	3D PDF	-	Cable-to-Board, Cable-to-Panel	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Box & Tube, Tube	With
RTANG JACK W/MTG PINS,BNC PCB	227161-9	3D PDF	-	Cable-to-Board, Cable-to-Panel	Panel Mount	-	-	VALOX	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
BNC PCB RT ANGLE	227661-1	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	-	Nickel	Mechanical	Tin	Polymethylpentene	Phosphor Bronze	Tray	With
JACK ASSY,RTANG,BNC	413879-1	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	Die Cast Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tube	With
JACK ASSY,RTANG,BNC	413879-2	Product Drawing 3D PDF	-	Cable-to-Board	Board Mount, Panel Mount	-	-	Die Cast Zinc	-	Nickel	Mechanical	Gold	Polymethylpentene	Phosphor Bronze	Tray	With
BNC PCB RT ANGLE, LEAD FREE PL	9-227661-0	Product Drawing 3D PDF	-	Cable-to-Board	Panel Mount	-	-	Zinc	Plated	Nickel	-	Tin	Polymethylpentene	Phosphor Bronze	Tray	With

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Product Type Connector Kit
Connector Shape Circular
RF Interface BNC
RF Connector Style Jack
Compatible With RF Cable Type RG 58C/U
Connector System Cable-to-Board, Cable-to-Panel
Sealable No
Connector & Contact Terminates To Printed Circuit Board

Configuration Features

PCB Mount Orientation Right Angle
Number of Positions 1
Number of Coaxial Contacts 1

Electrical Characteristics

Impedance (Ω) 50
EMI & RFI Protection & Suppression Type Isolated Ground, PCB Ground

Body Features

Cable Connector Orientation Straight
Body Material Die Cast Zinc, Polyester, Polyester, PBT, VALOX, Zinc
Body Material Finish Plated
Body Plating Material Nickel, Polyester, Tin, Zinc

Contact Features

RF Connector Center Contact Plating Material Gold, Tin
RF Connector Center Contact Material Beryllium Copper, Phosphor Bronze
RF Connector Center Contact Plating Thickness (µin) 102, 1080, 1270, 30, 50, 5080, 889
RF Connector Center Contact Underplating Material Copper, Nickel

Termination Features

Termination Method to Printed Circuit Board Through Hole - Solder
Termination Post & Tail Length (mm) 2.79, 3.3, 3.43, 4.1, 4.11, 4.34
Termination Post & Tail Length (in) .109, .13, .135, .162, .17
Termination Method to Wire & Cable Crimp

Mechanical Attachment

Panel Attachment Style Rear Mount
Panel Mount Feature Type Lockwasher and Nut
PCB Mount Retention With, Without
RF Connector Coupling Mechanism Bayonet
Connector Mounting Type Board Mount, Panel Mount
RF Contact Captivation Method Mechanical, Solder
Detent With, Without

Housing Features

Housing Color Black, White

Dimensions

Profile Height from PCB (mm) 8.64, 10.97, 11.68, 12.7, 13.18, 15.88
Profile Height from PCB (in) .34, .432, .46, .5, .519, .625
RF Connector Mated Outer Diameter (Approximate) 14.53 mm [ .572 in ]
Mounting Post Length (mm) 2.79, 3.48, 4.01, 4.11, 4.34
Mounting Post Length (in) .11, .137, .158, .162, .171

Usage Conditions

Insulation Option Uninsulated
Operating Temperature Range -55 – 85 °C [ -67 – 185 °F ]

Operation/Application

Operating Frequency (GHz) 4

Packaging Features

Packaging Quantity 35
Packaging Method Box & Tube, Carton, Package, Tray, Tube

Other

Grade Commercial
Dielectric Material Polymethylpentene, PTFE
Additional Features Hardware Included
Coupling Nut Base Material Brass
Lockwasher Material Phosphor Bronze

Reference Number

TE Internal Number CAT-076-BNCRABAY

Related Materials

Product Specifications

CONNECTOR, SMB SERIES, 50 OHM, COAXIAL, PRINTED CIRCUIT BOARD MOUNTED pdf English
