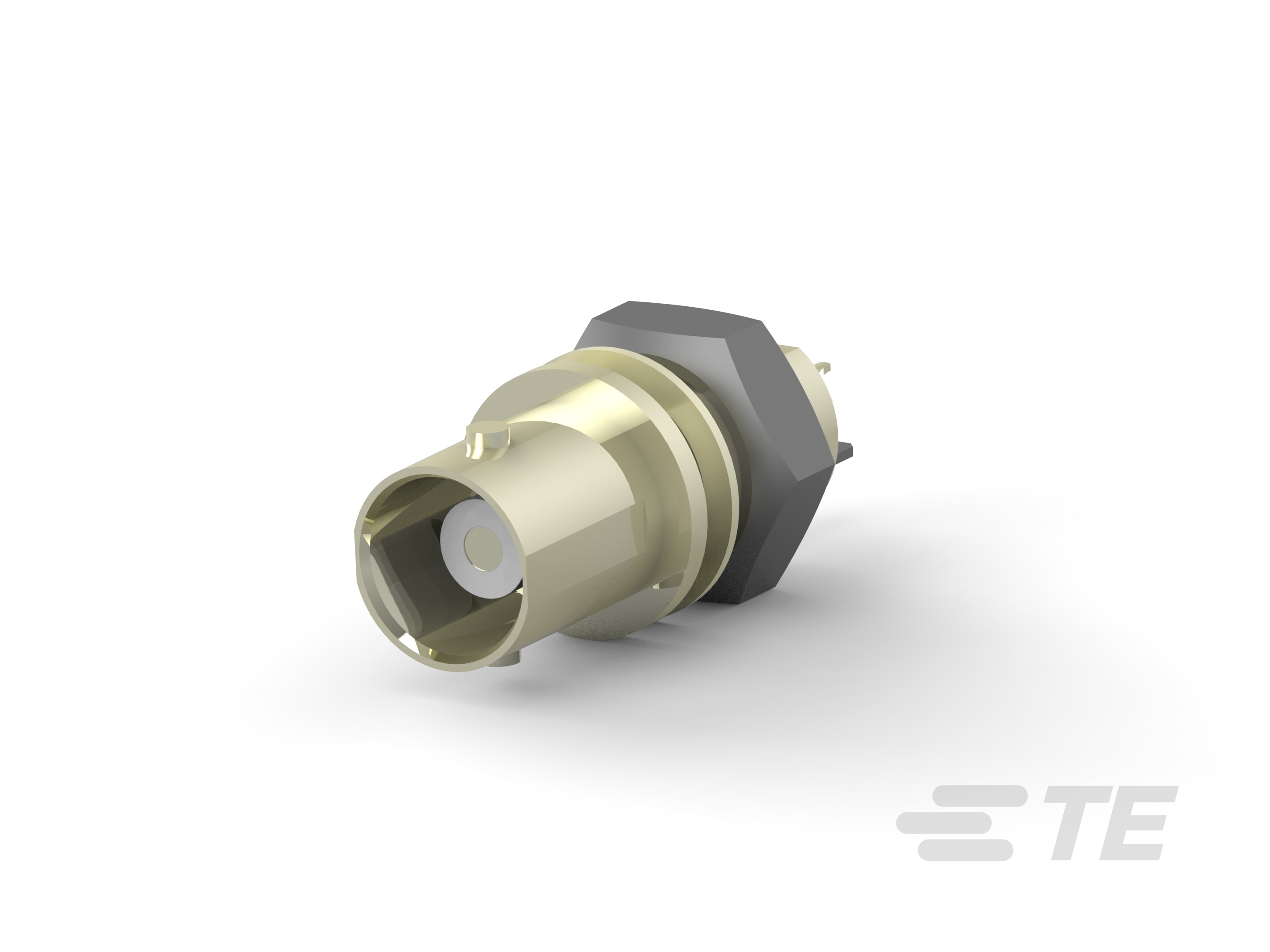

BNC RF Connector: Jack Assembly, Isolated Ground Protection, 50 Ohm

BNC RF Connector: Jack Assembly, Isolated Ground Protection, 50 Ohm-CAT-076-BNCJKISG50
The BNC RF connector jack assembly has an impedance of 50 Ohms and isolated ground EMI & RFI protection. Straight cable connector orientation and solder termination method to wire and cable.
More Less

Product Features

  • RF Interface: BNC

  • RF Connector Style: Jack

  • RF Connector Mated Outer Diameter (Approximate)(mm): 14.53

  • Impedance(Ω): 50

  • RF Connector Coupling Mechanism: Bayonet

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • RF Interface  BNC

  • RF Connector Style  Jack

  • Connector System  Cable-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  1

  • Number of Coaxial Contacts  1

Electrical Characteristics

Body Features

  • Cable Connector Orientation  Straight

  • Body Material  Zinc

  • Body Plating Material  Nickel

Contact Features

  • RF Connector Center Contact Plating Material  Gold, Silver, Tin

  • RF Connector Center Contact Material  Phosphor Bronze

  • RF Connector Center Contact Plating Thickness (µin) 30, 5080

  • RF Connector Center Contact Underplating Material  Copper, Nickel

Termination Features

  • Termination Method to Wire & Cable  Solder

Mechanical Attachment

  • Panel Attachment Style  Front Mount

  • RF Connector Coupling Mechanism  Bayonet

  • Connector Mounting Type  Panel Mount

  • RF Contact Captivation Method  Mechanical

  • Detent  With

Housing Features

  • Housing Color  White

Dimensions

  • RF Connector Mated Outer Diameter (Approximate)  14.53 mm [ .572 in ]

Usage Conditions

  • Insulation Option  Uninsulated

  • Operating Temperature Range  -55 – 85 °C [ -67 – 185 °F ]

Operation/Application

  • Operating Frequency (GHz) 4

Packaging Features

  • Packaging Method  Carton

Other

  • Grade  Commercial

  • Dielectric Material  VALOX

Reference Number

  • TE Internal Number CAT-076-BNCJKISG50
