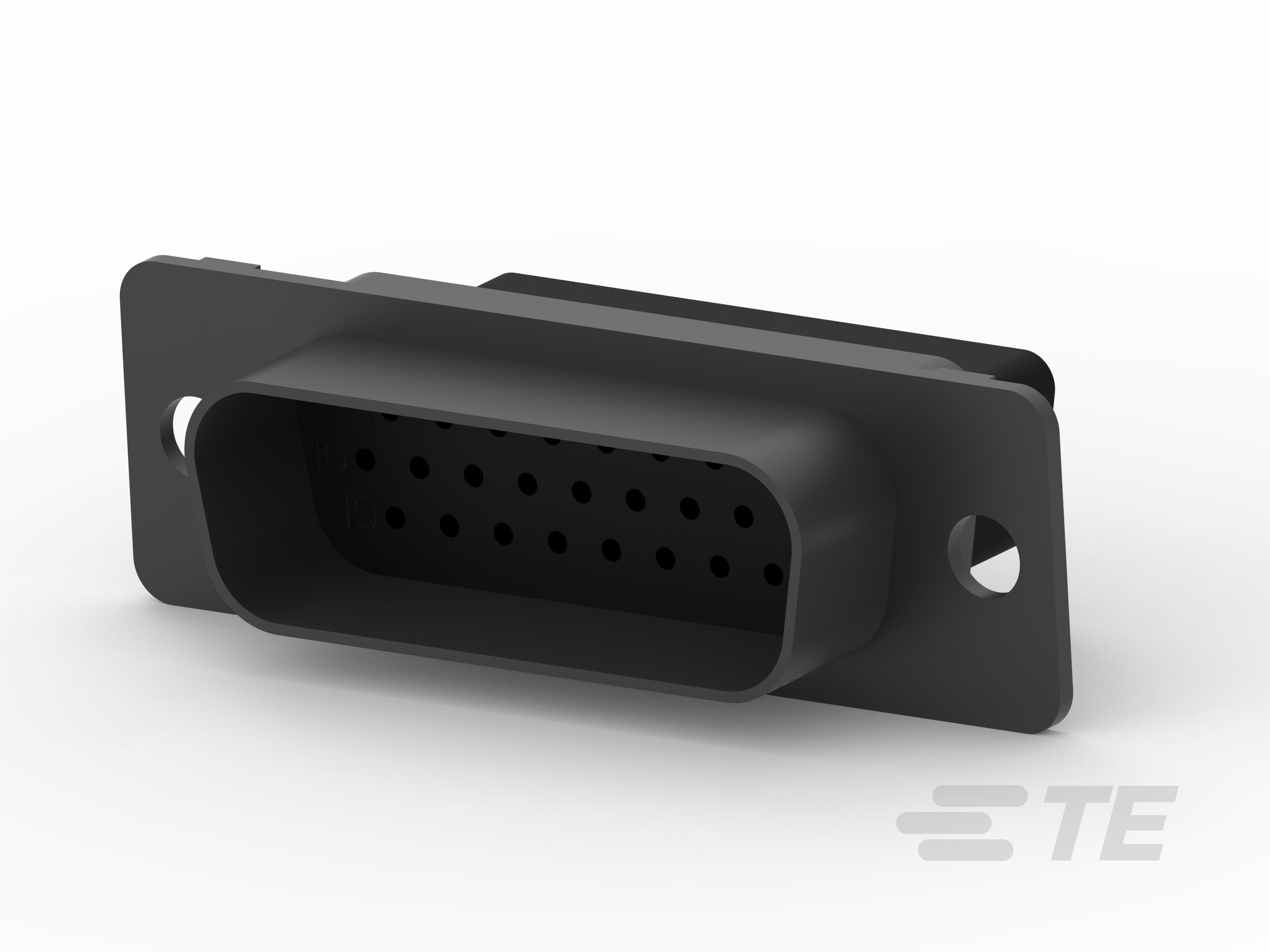

D-Sub Crimp: Plug, Signal, 26 Posn, Pin Size 22, Shell Size 2

D-Sub Crimp: Plug, Signal, 26 Posn, Pin Size 22, Shell Size 2-CAT-038-DCPPS222
D-Sub crimp plug connectors with shell size 2 accepts pin contacts of size 22, intended for cable to cable application and available in 26 positions. Used for signal circuit application and has an operating temperature of -55 – 105 DEGC.
More Less
Connect with Us

Product Features

  • Number of Positions : 26

  • Connector & Housing Type : Plug

  • Connector System : Cable-to-Cable

  • Connector Mounting Type : Panel Mount

  • Connector Shell Size : 2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Feature Type  Grounding Indents

  • Shell Material Configuration  Front Metal Shell | Full Metal Shell

  • Connector & Housing Type  Plug

  • Connector System  Cable-to-Cable

  • Connector Shell Size  2

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  26

Body Features

  • Mating Retention Feature Material  Zinc Alloy

  • Shield Material  Steel

  • Insert Material  Glass-Filled Nylon | Thermoplastic

  • Shell Plating Material  Tin

  • Shield Plating Material  Tin

Contact Features

  • Contact Size  Size 22

  • Contact Options  Order Separately

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Connector Mounting Type  Panel Mount

  • Mating Retention  With

  • Mating Retention Type  Clinch Nut, 4-40 UNC | Jackscrew | Mounting Holes

Housing Features

  • Shell Material  Steel

  • Centerline (Pitch)  2.29 mm [ .09 in ]

Dimensions

  • Compatible Insulation Diameter Range (mm) 4.19 – 11.56 | 4.83 – 8.38

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  Yes

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Carton | Kit | Package

  • Packaging Quantity  1 | 400

Reference Number

  • TE Internal Number CAT-038-DCPPS222
