FN7612-16-M4

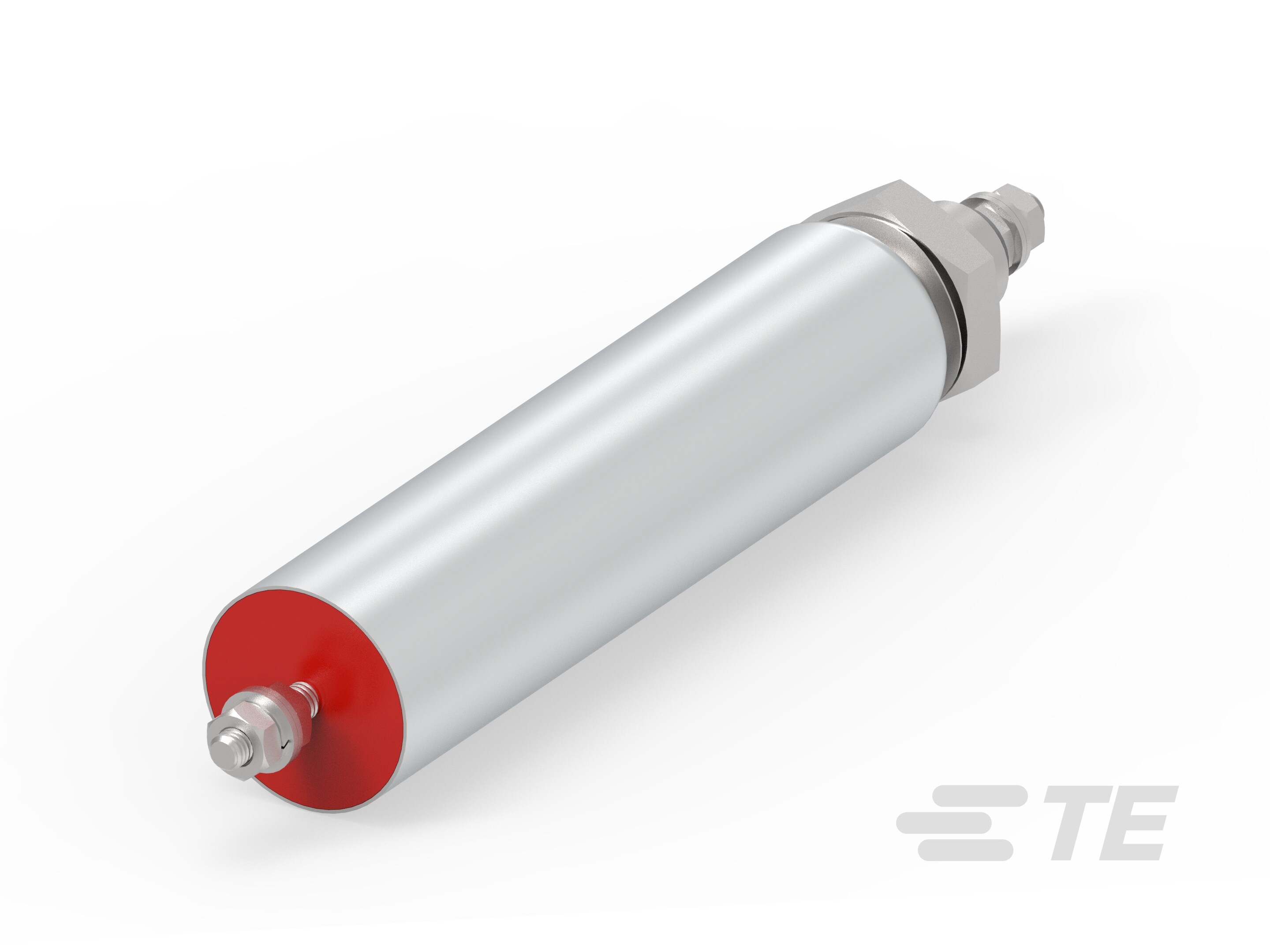

1000 VDC, 16 A, Threaded Stud, 18.85 mA Leakage Current @ 250VAC, 50Hz, IP00, UL 94V-0, Schaffner FN761X, Feedthrough EMC Filters
FN7612-16-M4
1000 VDC, 16 A, Threaded Stud, 18.85 mA Leakage Current @ 250VAC, 50Hz, IP00, UL 94V-0, Schaffner FN761X, Feedthrough EMC Filters
-
- Schaffner
- Schaffner FN761X
- TE Internal #: 801866-SF
- TE Internal Description: FN7612-16-M4
- All FN761 (7)
-
Operating Voltage (Max) (VDC): 1000
-
Current Rating (Max) (A): 16
-
Input Termination Type : Threaded Stud
-
Output Termination Type : Threaded Stud
-
Leakage Current (Max) (250VAC, 50Hz) (mA): 18.85
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_801866-SF_A.pdf 3D
- Customer View Model ENG_CVM_CVM_801866-SF_A.3d_igs.zip English
- ENG_CVM_CVM_801866-SF_A.3d_stp.zip English
- ENG_CVM_CVM_801866-SF_A.2d_dxf.zip English
Datasheets & Catalog Pages
- Feedthrough Filters FN761X ENG_DS_FN761X_A.pdf English
