6-1423008-4

Active

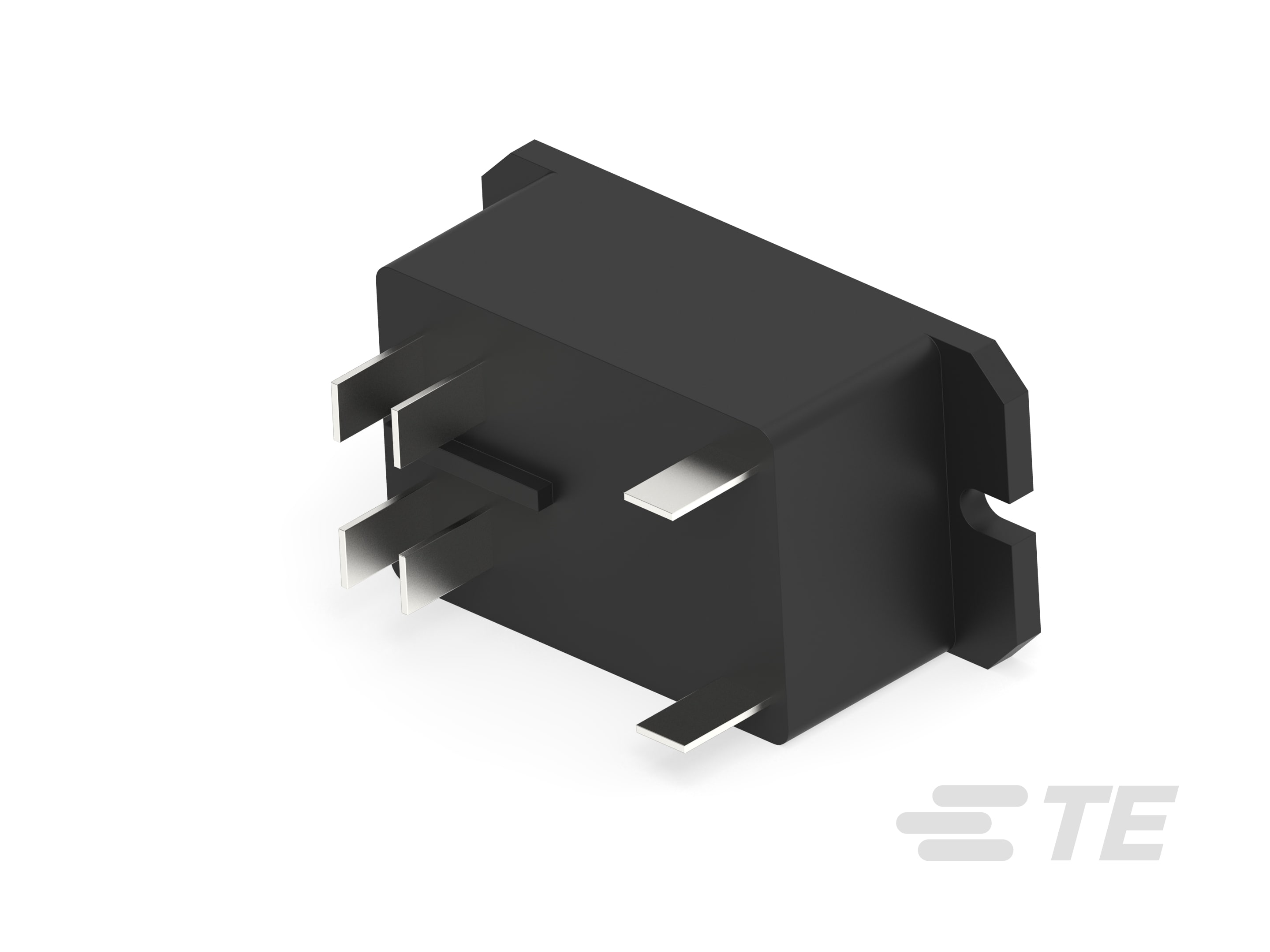

General Purpose Power Relay, AC, Monostable, 2 Form A DPST-NO, 30 A Contact Rating, 240 VAC Coil Voltage, Potter & Brumfield T92

6-1423008-4

Active

General Purpose Power Relay, AC, Monostable, 2 Form A DPST-NO, 30 A Contact Rating, 240 VAC Coil Voltage, Potter & Brumfield T92

- Potter & Brumfield
- Potter & Brumfield T92

TE Internal #: 6-1423008-4
TE Internal Description: T92S7A2X-240-99

Relay & Contactor Type : General Purpose Power Relay
Current Type : AC
Coil Magnetic System : Monostable
Contact Arrangement : 2 Form A DPST-NO
Contact Current Rating (A): 30

See All Features

More Less

Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_6-1423008-4_B.pdf 3D
Customer View Model ENG_CVM_CVM_6-1423008-4_B.3d_igs.zip English
ENG_CVM_CVM_6-1423008-4_B.3d_stp.zip English
ENG_CVM_CVM_6-1423008-4_B.2d_dxf.zip English

Datasheets & Catalog Pages

T92 Two-Pole, 30 Amp, PC Board or Panel Mount Relay ENG_DS_1308242_T92_A2.pdf English

Product Specifications

Definitions General Purpose Relays ENG_SS_Definitions_Relays_2.pdf English

Agency Approvals

CQC_CERT_16002142753_C1 ENG_AAD_CQC_CERT_16002142753_C1_4.pdf English

UL ENG_AAD_UL_CERT_E22575_19930709_C1_4.pdf English

TUV Certificate ENG_AAD_TUV_CERT_R50083843_C1_5.pdf English

CCC Certificate ENG_AAD_CCC_CERT_2020012304357387_C1_3.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Relay & Contactor Type : General Purpose Power Relay

Configuration Features

Coil Special Features : UL Coil Insulation Class F
Contact Number of Poles : 2
Contact Arrangement : 2 Form A DPST-NO

Electrical Characteristics

Insulation Initial Resistance (MΩ): 1000
Coil Power Rating AC (VA): 4
Coil Resistance (Ω): 3800
Contact Switching Load (Min) : 500mA @ 12V
Contact Switching Voltage (Max) (VAC): 600
Coil Current (A): .017
Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 1500
Insulation Initial Dielectric Between Open Contacts (Vrms): 1500
Contact Limiting Breaking Current (A): 40
Contact Limiting Continuous Current (A): 40
Contact Limiting Making Current (A): 40
Contact Current Rating (A): 30
Coil Voltage Rating (VAC): 240
Contact Voltage Rating (VAC): 277
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000

Body Features

Product Weight (g): 86
Enclosure Type : Flux Resistant Automatic Soldering

Contact Features

Contact Material : Silver Alloy

Termination Features

Main Termination & Connection Type : Quick Connect Terminals
Coil Termination & Connection Type : Quick Connect Terminals

Mechanical Attachment

Product Mounting Feature Type : Flange with Mounting Slots
Product Mount Type : Panel Mount

Dimensions

Product Height : 26.42 mm [ 1.04 in ]
Product Length : 68.58 mm [ 2.7 in ]
Product Width : 34.54 mm [ 1.36 in ]
Insulation Creepage Between Contact & Coil : 8 mm [ .315 in ]
Insulation Clearance Between Contact & Coil : 8 mm [ .315 in ]

Usage Conditions

Environmental Category of Protection : RTII
Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]
Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

Operation/Application

Current Type : AC
Coil Magnetic System : Monostable

Packaging Features

Packaging Method : Box & Tray, Bundle

Other

Environmental Ambient Temperature Class (°C): 70 – 85
Contact Current Class (A): 30 – 50
