2MM-R-D20-VT-01-F-TRP

Active

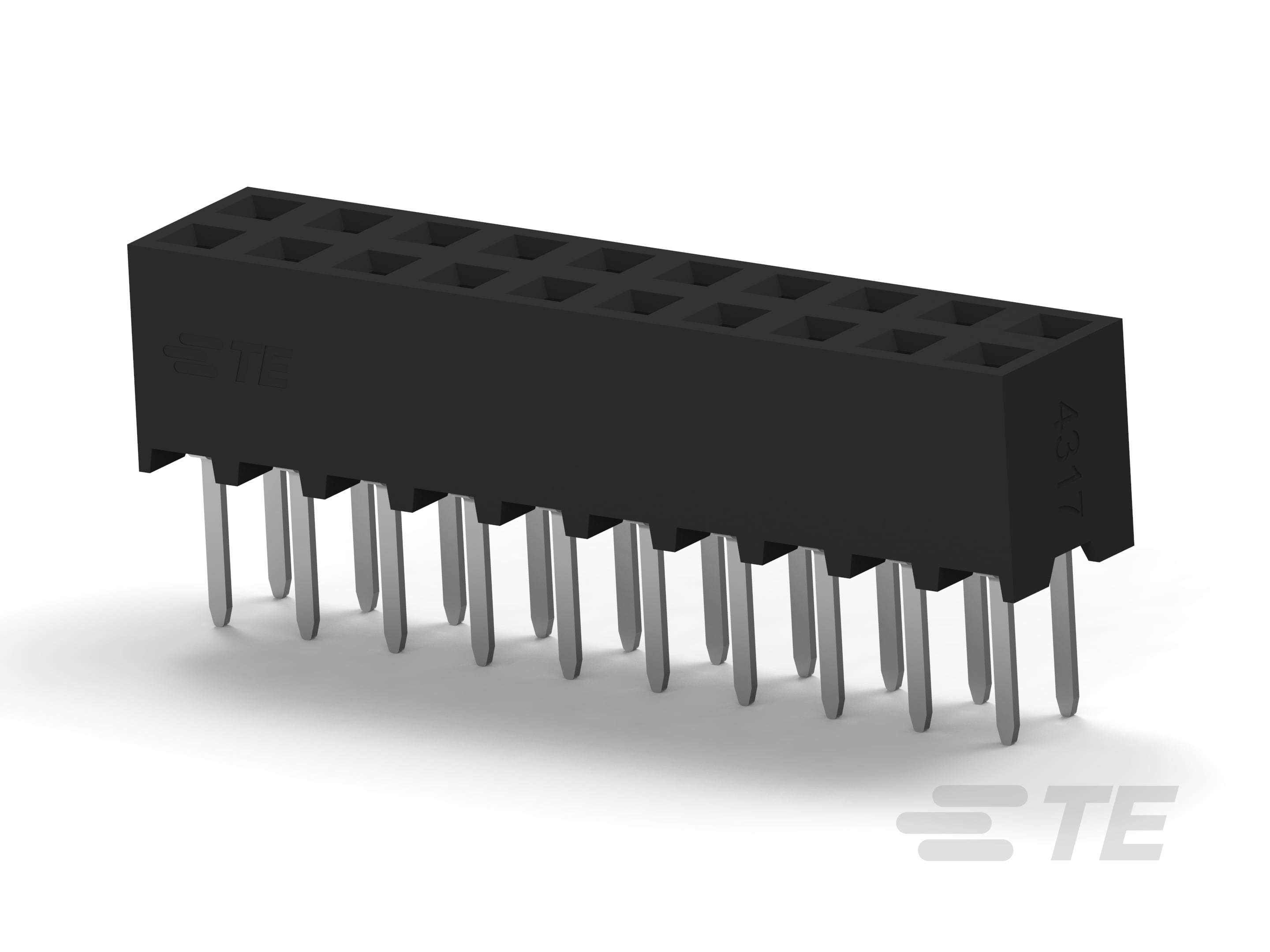

PCB Mount Receptacle, Vertical, Board-to-Board, 40 Position, 2 mm [.079 in] Centerline, Gold Flash, Through Hole - Solder, Signal, Black, AMPMODU 2 mm

40P,2MM,B-B,REC,DRVT,2.0,0.1AU,TR,W/CAP-4-2307779-0

2MM-R-D20-VT-01-F-TRP

Active

PCB Mount Receptacle, Vertical, Board-to-Board, 40 Position, 2 mm [.079 in] Centerline, Gold Flash, Through Hole - Solder, Signal, Black, AMPMODU 2 mm

- AMPMODU
- AMPMODU 2 mm

TE Internal #: 4-2307779-0
TE Internal Description: 40P,2MM,B-B,REC,DRVT,2.0,0.1AU,TR,W/CAP

PCB Connector Type : PCB Mount Receptacle
PCB Mount Orientation : Vertical
Connector System : Board-to-Board
Number of Positions : 40
Number of Rows : 2

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

AMPMODU 2mm BtB DRVT TOP ENTRY TH/THR ENG_CD_2307776_A2.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_4-2307779-0_A.pdf 3D
PCB Design Download symbol & footprint (SnapEDA)
Customer View Model ENG_CVM_CVM_4-2307779-0_A.2d_dxf.zip English
ENG_CVM_CVM_4-2307779-0_A.3d_igs.zip English
ENG_CVM_CVM_4-2307779-0_A.3d_stp.zip English

Datasheets & Catalog Pages

AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES ENG_DS_1-1773968-2-1909_1912.pdf English
AMPMODU 2mm interconnection system QRG ENG_DS_ampmodu-2mm-qrg_2309.pdf English

Product Specifications

Application Specification ENG_SS_114-32186_A.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

PCB Connector Type : PCB Mount Receptacle
Connector System : Board-to-Board
Connector & Contact Terminates To : Printed Circuit Board
Connector Product Type : Connector Assembly

Configuration Features

Number of Loaded Positions : 40
PCB Mount Orientation : Vertical
Number of Positions : 40
Number of Rows : 2

Electrical Characteristics

Dielectric Withstanding Voltage (Max) (VAC): 650
Operating Voltage (VAC): 125

Body Features

Connector Profile : Standard
Primary Product Color : Black

Contact Features

Contact Mating Area Plating Material Finish : Matte
PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Phosphor Bronze
Contact Layout : Inline
PCB Contact Termination Area Plating Material Thickness : 3 – 5 µm [ 118.11 – 196.85 µin ]
Mating Square Post Dimension : .5 mm [ .02 in ]
Contact Mating Area Plating Material Thickness : .1 µm [ 3.94 µin ]
PCB Contact Termination Area Plating Material Finish : Matte
Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]
Contact Underplating Material : Nickel
Contact Mating Area Plating Material : Gold Flash
Contact Type : Socket
Contact Current Rating (Max) (A): 2

Termination Features

Termination Post & Tail Length : 2 mm [ .079 in ]
Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]
Rectangular Termination Post & Tail Width : .4 mm [ .016 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Retention : Without
PCB Mount Alignment : Without
Connector Mounting Type : Board Mount
Mating Alignment : Without

Housing Features

Housing Material : LCP
Centerline (Pitch) : 2 mm [ .079 in ]

Dimensions

Connector Length : 40 mm [ 1.575 in ]
Connector Height : 4.5 mm [ .18 in ]
PCB Thickness (Recommended) : 1.6 mm [ .063 in ]
Connector Width : 4 mm [ .157 in ]
Row-to-Row Spacing : 2 mm [ .079 in ]

Usage Conditions

Housing Temperature Rating : High
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Assembly Process Feature : Pick and Place Cover
Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tape & Reel
