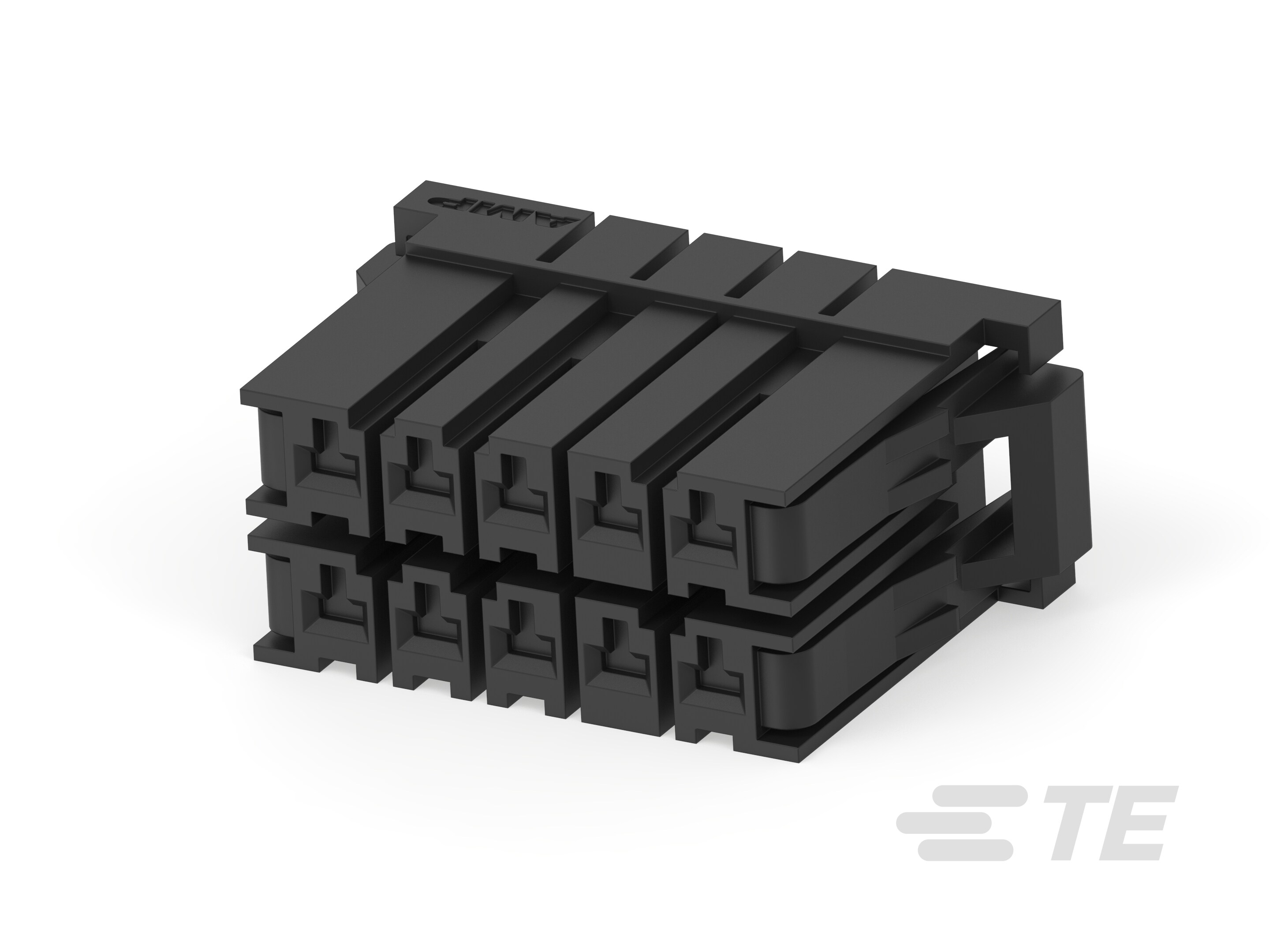

Housing, Receptacle, Crimp, Wire-to-Board, 10 Position, Dynamic 3000 Series, Rectangular Wire & Cable Connectors & Housings
3-917659-5
Housing, Receptacle, Crimp, Wire-to-Board, 10 Position, Dynamic 3000 Series, Rectangular Wire & Cable Connectors & Housings
-
- Dynamic Series
- Dynamic 3000 Series
- TE Internal #: 3-917659-5
- TE Internal Description: DYNAMIC 3200 D/ROW REC HSG 10P
- All Receptacle and Tab Housing: 5.08 mm Pitch, 250-600V (64)
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Mating Retention : With
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Board
Documents
Product Drawings
- DYNAMIC D3200 REC HSG (DOUBLE ROW) ENG_CD_917659_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-917659-5_N.pdf 3D
- Customer View Model ENG_CVM_CVM_3-917659-5_N.2d_dxf.zip English
- ENG_CVM_CVM_3-917659-5_N.3d_igs.zip English
- ENG_CVM_CVM_3-917659-5_N.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-5349_J10.pdf English
Agency Approvals
- TUV Certificate ENG_AAD_TUV_CERT_R09151488_C1_B.pdf English
