2842506-5

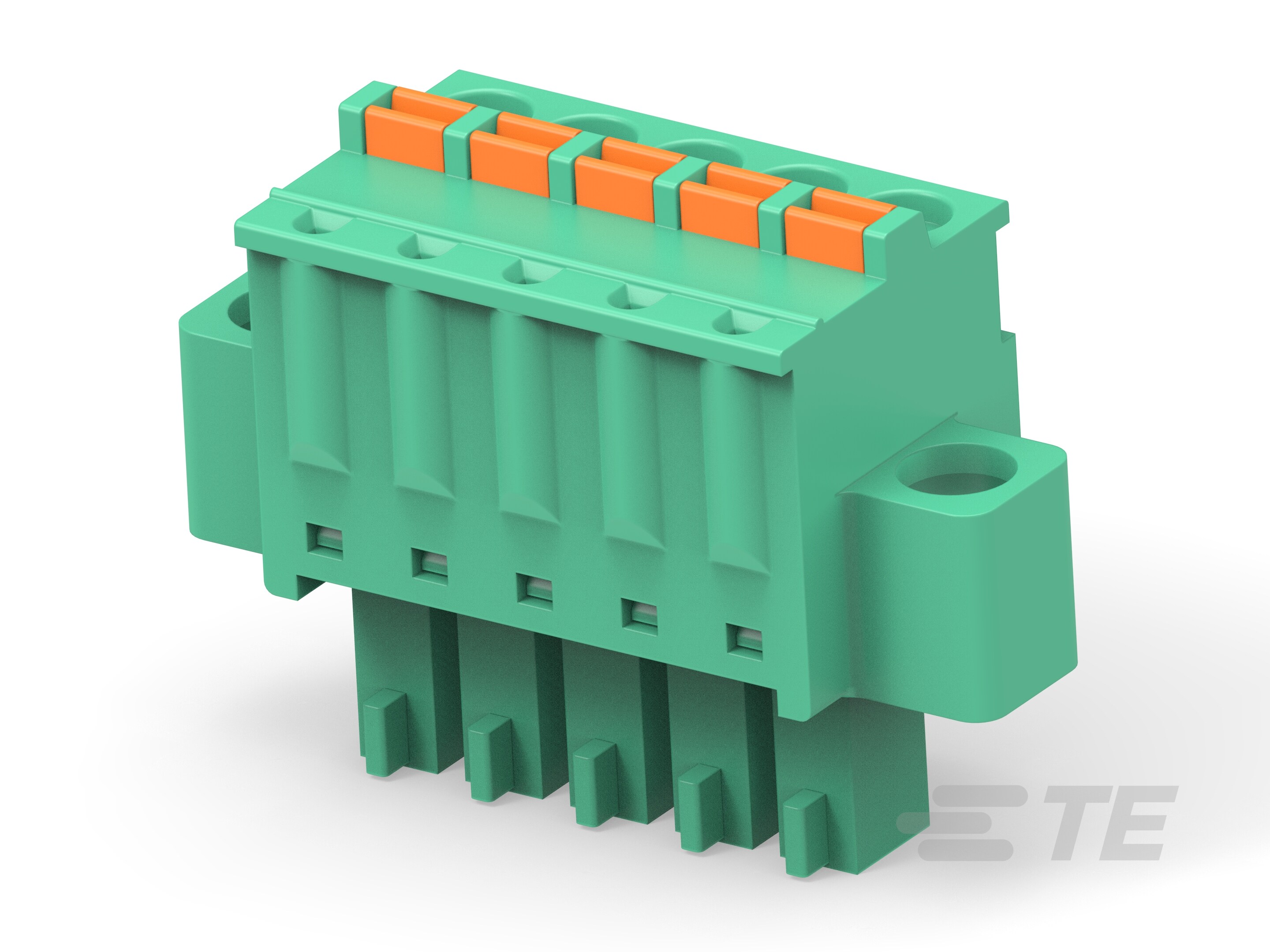

5 Position PCB Terminal Block, Plug, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 180° Wire Entry Angle, 28 – 16 AWG, .08 – 1.3 mm² Wire
2842506-5
5 Position PCB Terminal Block, Plug, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 180° Wire Entry Angle, 28 – 16 AWG, .08 – 1.3 mm² Wire
- TE Internal #: 2842506-5
- TE Internal Description: 5P Spring TB Plug w/ Flg 3.81, GN
- All Push-In PCB Terminal Blocks: Time Saving Connectors (333)
-
Number of Positions : 5
-
Terminal Block Connector Type : Plug
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3.81 mm [ .15 in ]
-
Number of Rows : 1
Documents
Product Drawings
- SPRING TYPE TERMINAL BLOCK, PLUG, SR, 3.81mm PITCH, WITH FLANGE, GREEN ENG_CD_2842506_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2842506-5_1.pdf 3D
- Customer View Model ENG_CVM_CVM_2842506-5_1.3d_stp.zip English
- ENG_CVM_CVM_2842506-5_1.3d_igs.zip English
- ENG_CVM_CVM_2842506-5_1.2d_dxf.zip English
Datasheets & Catalog Pages
- PUsh-In PCB Terminal Block Connectors ENG_DS_push-in-pcb-terminal-block-connectors_2502.pdf English
Product Specifications
- Application Specification ENG_SS_114-160803_A.pdf English
- Product Specification ENG_SS_108-161183_A1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E63810_20240419_C1_2.pdf English
