2479976-6

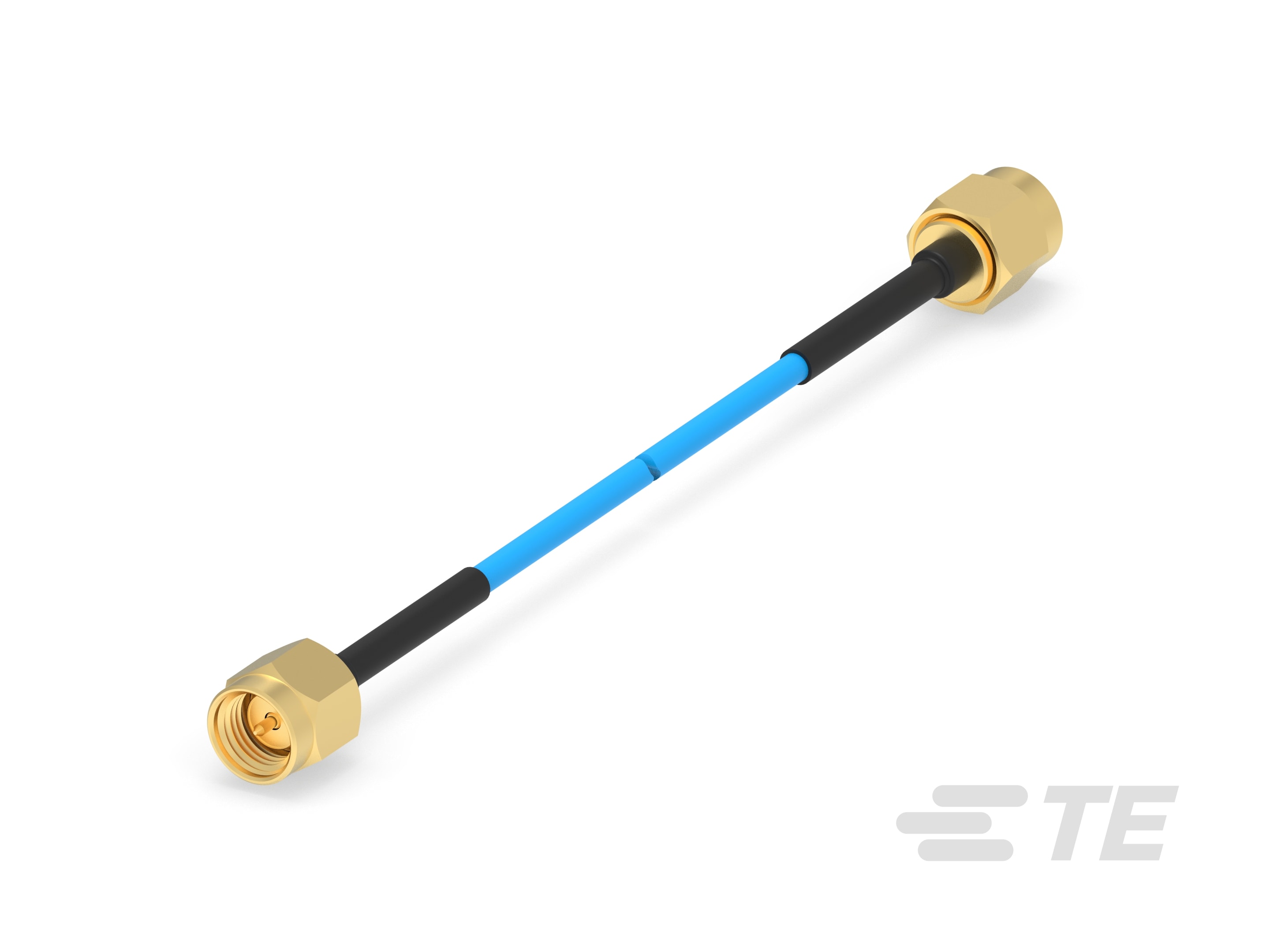

SMA Cable Assembly, 1.8288 m [6 ft], Blue Cable, 0 – 18 GHz, 50 ohm, FEP Jacket, 2.64 mm [.104 in] Diameter, SMA Plug End A, SMA Plug End B
2479976-6
SMA Cable Assembly, 1.8288 m [6 ft], Blue Cable, 0 – 18 GHz, 50 ohm, FEP Jacket, 2.64 mm [.104 in] Diameter, SMA Plug End A, SMA Plug End B
- TE Internal #: 2479976-6
- TE Internal Description: SMA M to SMA M Str 18G Flexible.086 72"
-
Cable Assembly Type : SMA
-
Cable Assembly Length : 1.8288 m [ 6 ft ]
-
Cable Color : Blue
-
Operating Frequency (GHz): 0 – 18
-
Impedance (Ω): 50
Documents
Product Drawings
- SMA CABLE ASSEMBLY,MALE TO MALE, FLEXIBLE 086 CABLE,DC-18GHZ ENG_CD_2479976_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2479976-6_1.pdf 3D
- Customer View Model ENG_CVM_CVM_2479976-6_1.3d_igs.zip English
- ENG_CVM_CVM_2479976-6_1.2d_dxf.zip English
- ENG_CVM_CVM_2479976-6_1.3d_stp.zip English
Datasheets & Catalog Pages
- dnd-fly-RF-cable-assemblies-product-expansion ENG_DS_RF-cable-assemblies-product-expansion_2411.pdf English
Product Specifications
- Product Specification ENG_SS_108-161270_1.pdf English
