2446053-1

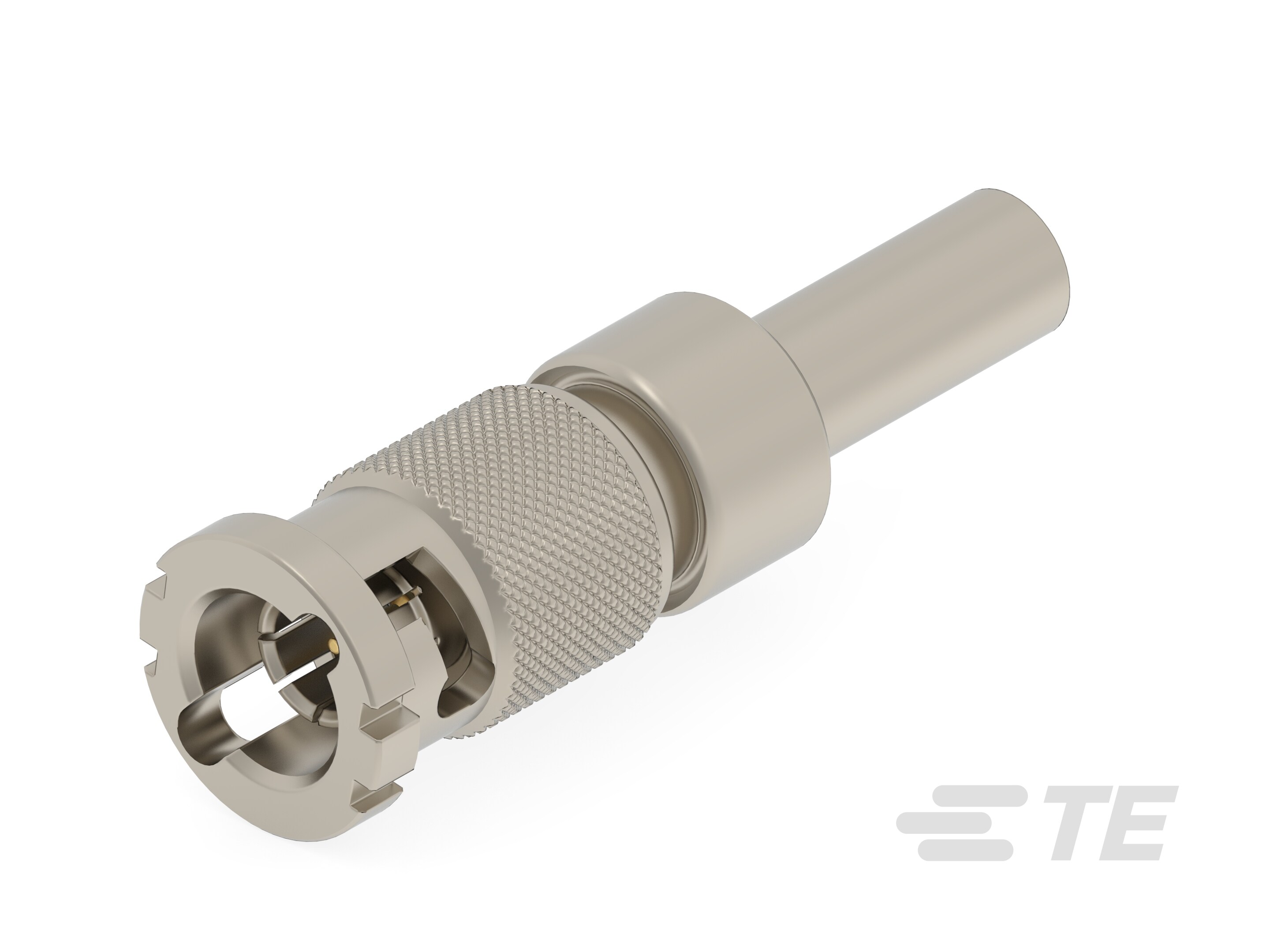

High Density BNC Connector, Plug, 75 ohm, Bayonet, 0 – 12 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging)
2446053-1
High Density BNC Connector, Plug, 75 ohm, Bayonet, 0 – 12 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging)
- TE Internal #: 2446053-1
- TE Internal Description: HIGH DENSITY BNC PL,CRIMP,RG179,12GHZ
-
RF Interface : High Density BNC
-
RF Connector Style : Plug
-
Impedance (Ω): 75
-
Compatible With RF Cable Type : RG 179
-
RF Connector Coupling Mechanism : Bayonet
