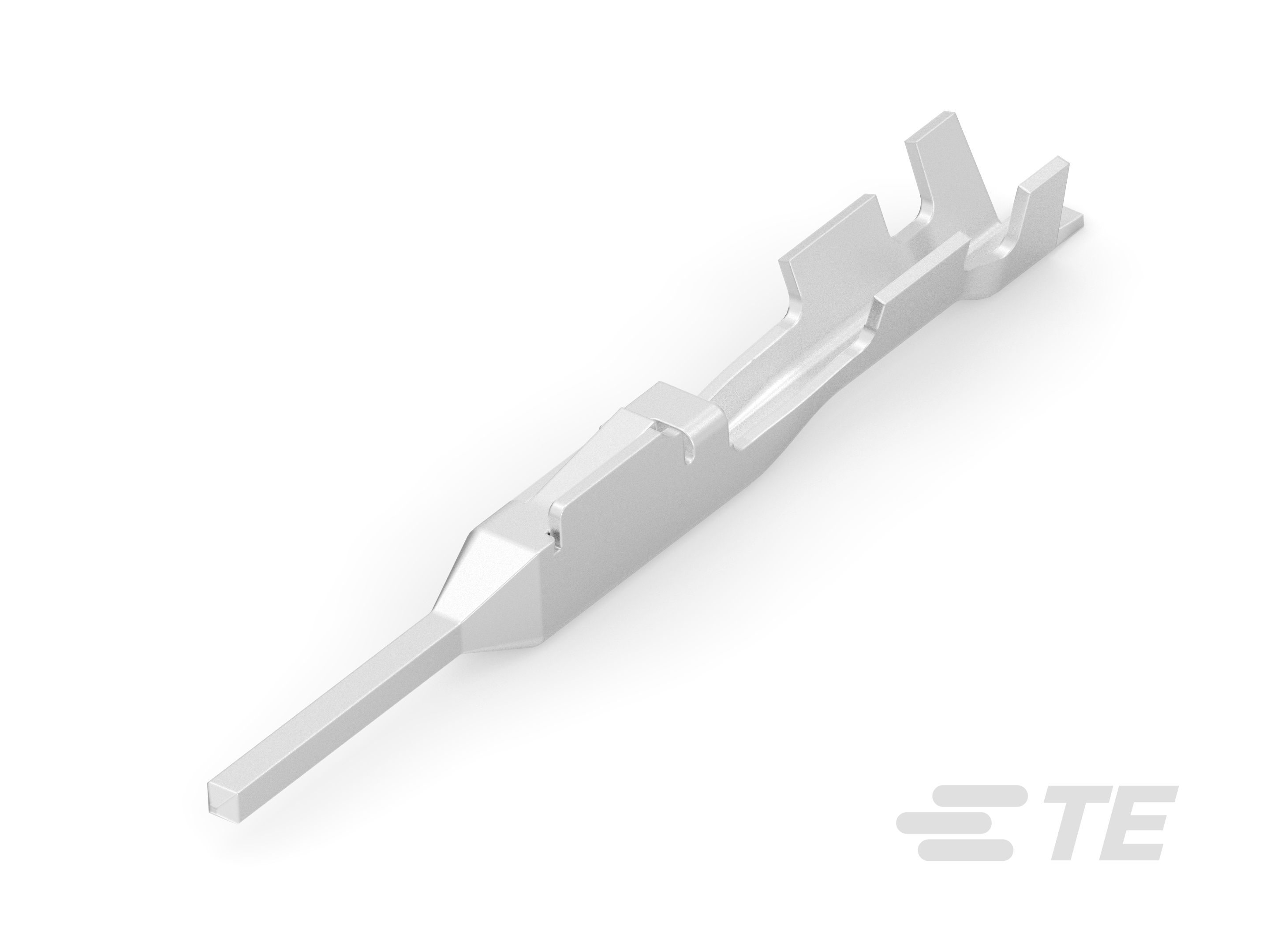

Tab Terminal, 22 – 20 AWG, .37 – .56 mm² Wire, .64 mm [.025 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Family Seal or Unsealed
2411042-1
Tab Terminal, 22 – 20 AWG, .37 – .56 mm² Wire, .64 mm [.025 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Family Seal or Unsealed
- TE Internal #: 2411042-1
- TE Internal Description: TAB0.64X0.64,TERMINAL,025 TAB CONTACT
-
Terminal Type : Tab
-
Wire Size (AWG): 22 – 20
-
Wire Size (mm²): .37 – .56
-
Mating Tab Width : .64 mm [ .025 in ]
-
Interface Plating : Tin (Sn)
