2392556-4

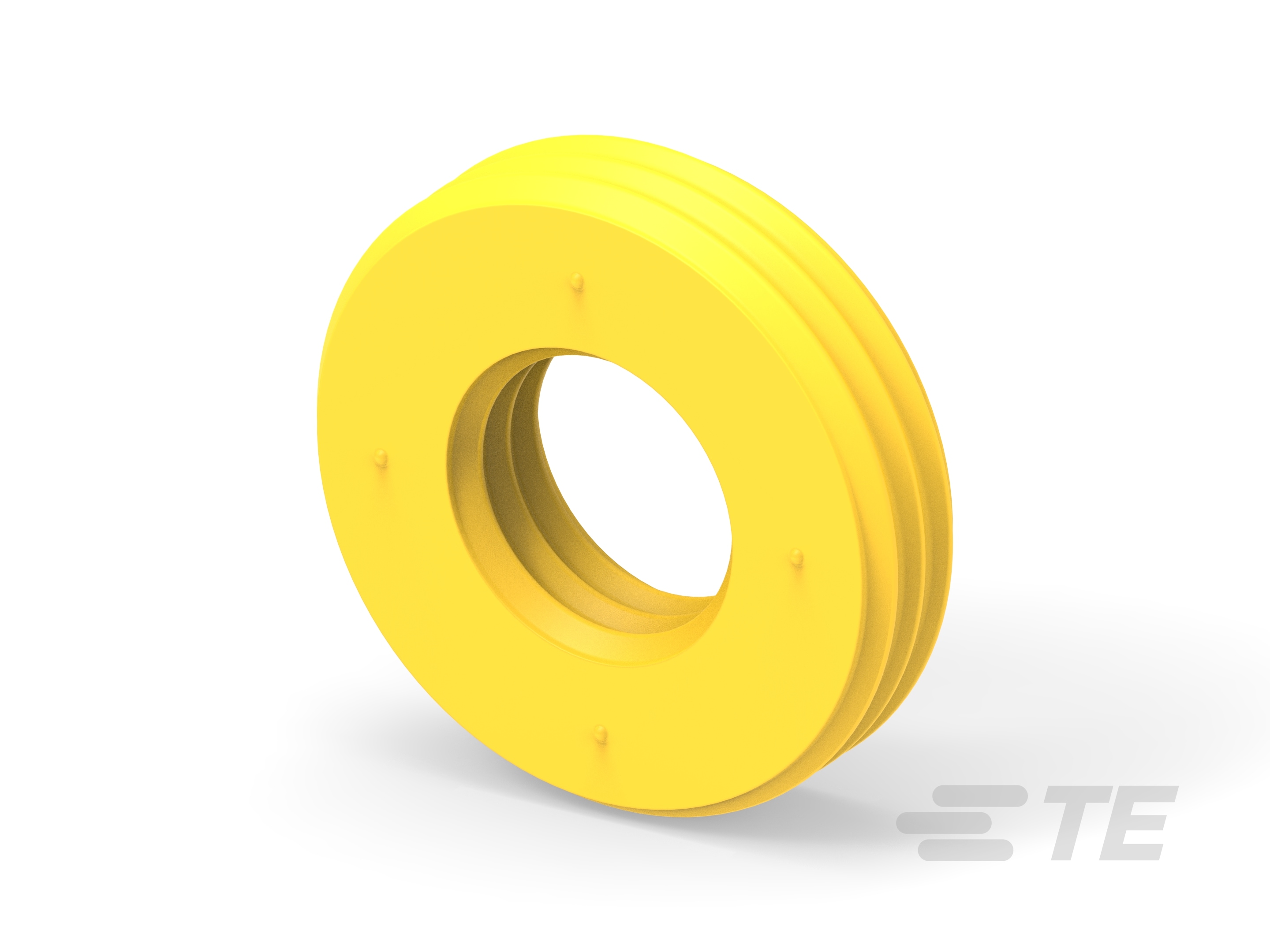

Single Wire Seal (SWS), 11 mm [.433 in] Cavity Diameter, -40 – 140 °C [-40 – 284 °F], Yellow, Silicone Rubber, HVA HD400
2392556-4
Single Wire Seal (SWS), 11 mm [.433 in] Cavity Diameter, -40 – 140 °C [-40 – 284 °F], Yellow, Silicone Rubber, HVA HD400
-
- HIVONEX
- HVA HD400
- TE Internal #: 2392556-4
- TE Internal Description: SWS,DIA 4MM,ICT CVE
-
Connector Seal & Plug Type : Single Wire Seal (SWS)
-
Cavity Diameter : 11 mm [ .433 in ]
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Yellow
-
Primary Product Material : Silicone Rubber
Documents
Product Drawings
- SINGLE WIRE SEAL HVA-HD400 MULTI CORE PLUG ENG_CD_2392556_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2392556-4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2392556-4_A.3d_igs.zip English
- ENG_CVM_CVM_2392556-4_A.3d_stp.zip English
- ENG_CVM_CVM_2392556-4_A.2d_dxf.zip English
Datasheets & Catalog Pages
- HIVONEX CONNECTORS & CHARGING SOLUTIONS ENG_CS_3-1773983-4_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-160337_A4.pdf English
- Product Specification ENG_SS_108-160599_A1.pdf English
