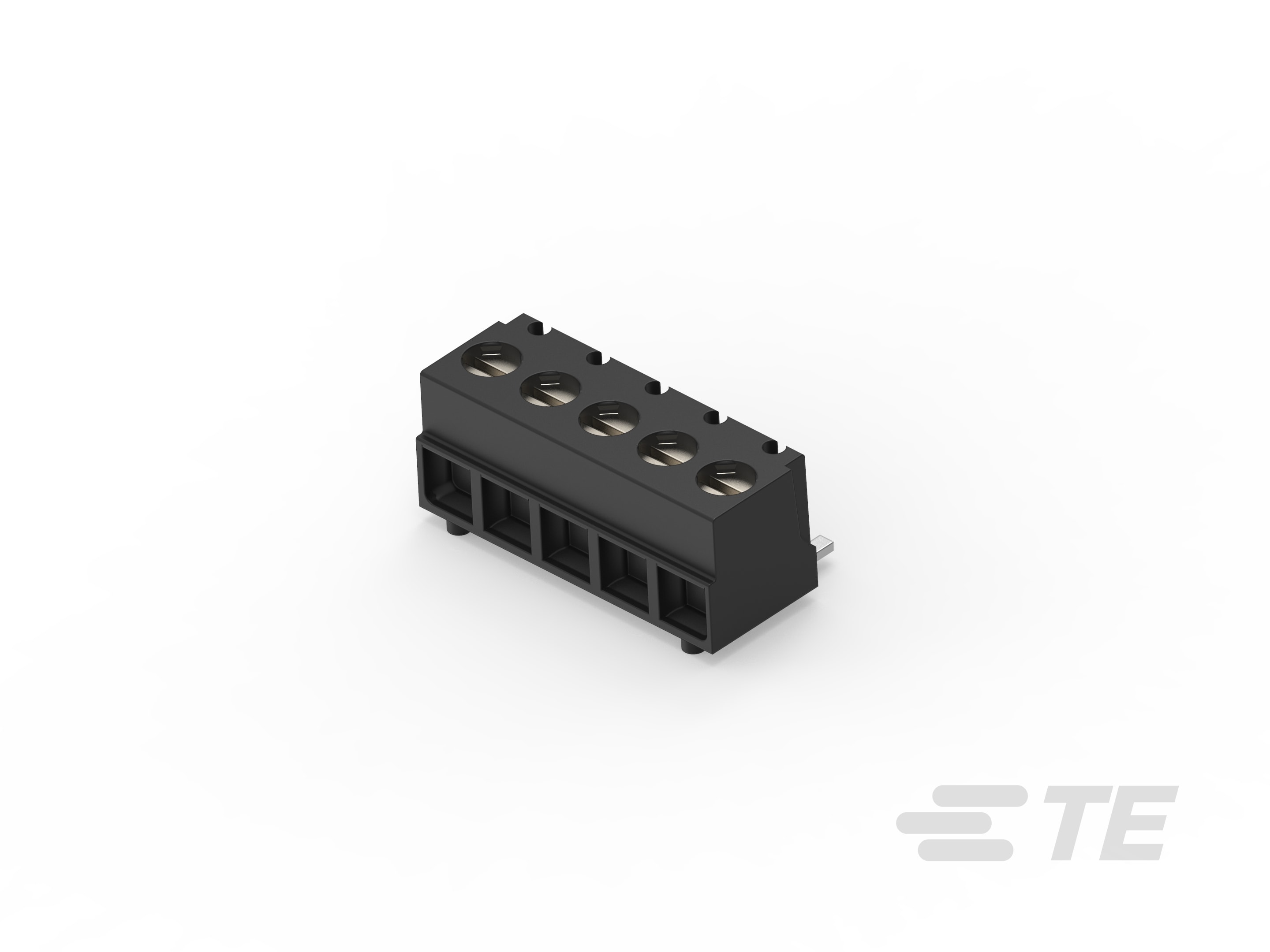

5 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 18 AWG, .08 – .82 mm² Wire
2383941-5
5 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 18 AWG, .08 – .82 mm² Wire
- TE Internal #: 2383941-5
- TE Internal Description: TERMI-BLOK SMD MOUNT 180_5P_3.81 MM 7A
-
Number of Positions : 5
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3.81 mm [ .15 in ]
-
Number of Rows : 1
Documents
Product Drawings
- TERMINAL BLOCK, SMD MOUNT, 180 DEGREE, 3.81 MM PITCH 7A ENG_CD_2383941_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2383941-5_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2383941-5_A.2d_dxf.zip English
- ENG_CVM_CVM_2383941-5_A.3d_igs.zip English
- ENG_CVM_CVM_2383941-5_A.3d_stp.zip English
Datasheets & Catalog Pages
- Board Mount Reflow Terminal Block ENG_DS_pcb_boardmount_terminalblocks_2108.pdf English
Product Specifications
- Application Specification ENG_SS_114-160151_1.pdf English
- Product Specification ENG_SS_108-160231_1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
