2373376-8

Active

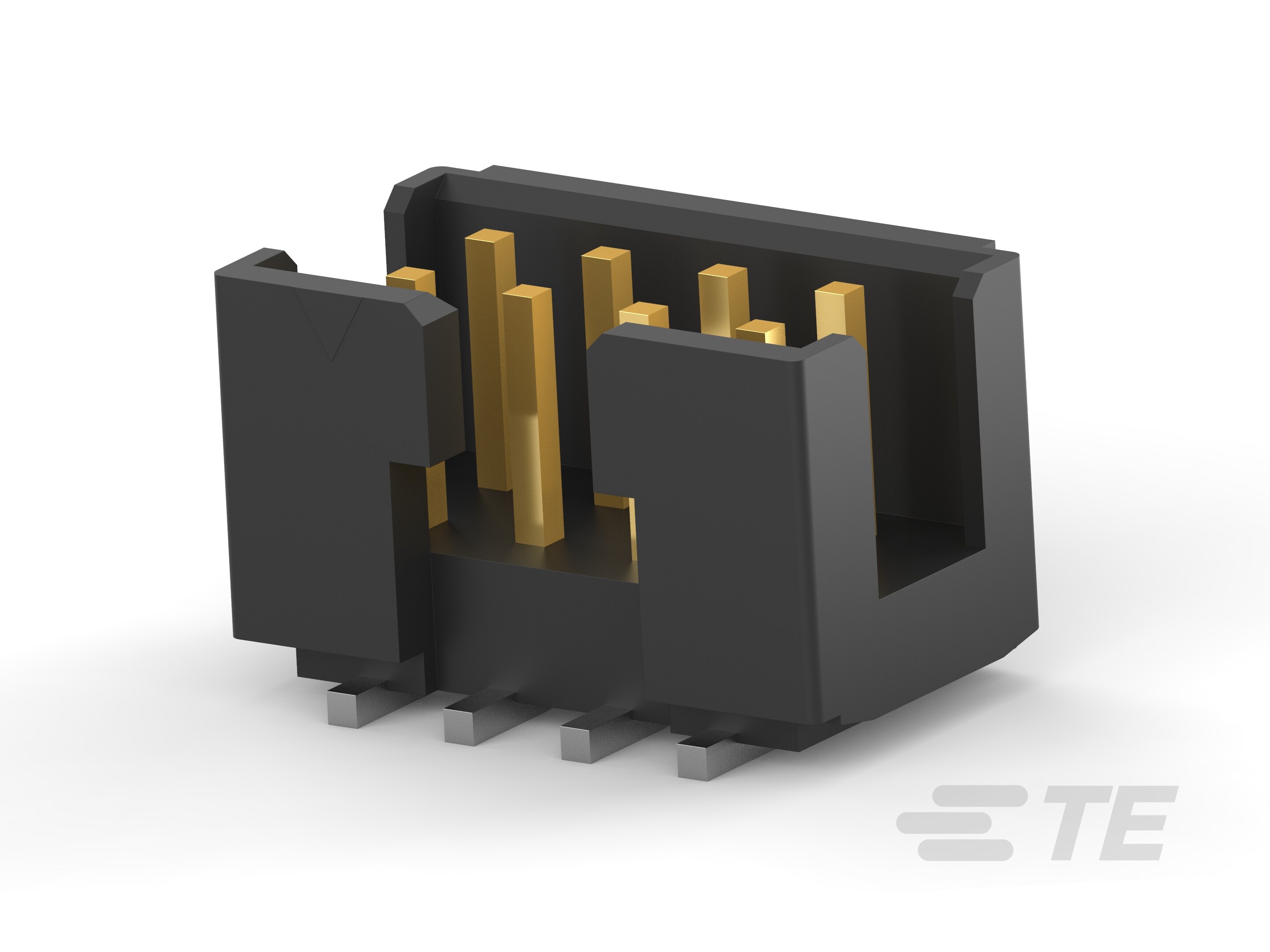

PCB Mount Header, Vertical, Board-to-Board, 8 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Gold (Au), Surface Mount, Signal, AMPMODU 2 mm

2373376-8

Active

PCB Mount Header, Vertical, Board-to-Board, 8 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Gold (Au), Surface Mount, Signal, AMPMODU 2 mm

- AMPMODU
- AMPMODU 2 mm

TE Internal #: 2373376-8
TE Internal Description: 8P,2MM,SHRD HDR,DRVT,SMD,0.1AU,TB

PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Vertical
Connector System : Board-to-Board
Number of Positions : 8
Number of Rows : 2

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

AMPMODU 2mm SHROUDED HEADER DUAL ROW, VERTICAL SMD, 0.1 Au, TUBE ENG_CD_2373376_A.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_2373376-8_A.pdf 3D
Customer View Model ENG_CVM_CVM_2373376-8_A.2d_dxf.zip English
ENG_CVM_CVM_2373376-8_A.3d_igs.zip English
ENG_CVM_CVM_2373376-8_A.3d_stp.zip English

Product Specifications

Application Specification ENG_SS_114-32259_A1.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

PCB Connector Type : PCB Mount Header
Connector System : Board-to-Board
Header Type : Partially Shrouded
Connector & Contact Terminates To : Printed Circuit Board
Connector Product Type : Connector Assembly

Configuration Features

Stackable : No
Connector Contact Load Condition : Fully Loaded
Number of Signal Positions : 8
PCB Mount Orientation : Vertical
Number of Positions : 8
Number of Rows : 2

Electrical Characteristics

Dielectric Withstanding Voltage (Max) (VAC): 500
Operating Voltage (VAC): 125

Body Features

Connector Profile : Standard
Primary Product Color : Black

Contact Features

PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Brass
Contact Mating Area Length : 3.7 mm [ .145 in ]
Contact Layout : Inline
Contact Shape & Form : Square
PCB Contact Termination Area Plating Material Thickness : 2 µm [ 78.74 µin ]
Mating Square Post Dimension : .5 mm [ .02 in ]
Contact Mating Area Plating Material Thickness : .1 µm [ 3.94 µin ]
PCB Contact Termination Area Plating Material Finish : Bright
Contact Underplating Material Thickness : .5 µm [ 19.69 µin ]
Contact Underplating Material : Nickel
Contact Mating Area Plating Material : Gold (Au)
Contact Type : Pin
Contact Current Rating (Max) (A): 2

Termination Features

Square Termination Post & Tail Dimension : .5 mm [ .02 in ]
Termination Method to PCB : Surface Mount

Mechanical Attachment

Connector Mounting Type : Board Mount

Housing Features

Housing Material : PA9T GF
Centerline (Pitch) : 2 mm [ .079 in ]

Dimensions

Connector Length : 10.1 mm [ .398 in ]
Connector Height : 6.05 mm [ .238 in ]
Connector Width : 6.1 mm [ .24 in ]
Row-to-Row Spacing : 2 mm [ .079 in ]

Usage Conditions

Housing Temperature Rating : High
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Assembly Process Feature : Without Pick and Place Cover
Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : UL E28476
UL Rating : Recognized
Compatible With Agency/Standards Products : UL
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
