2271871-1
6 Position D-Shaped Connector, Plug, Cable-to-Panel, Cable Mount (Free-Hanging), Wire & Cable, Power, Signal & High Speed Data
2271871-1
6 Position D-Shaped Connector, Plug, Cable-to-Panel, Cable Mount (Free-Hanging), Wire & Cable, Power, Signal & High Speed Data
-
- AMP
- TE Internal #: 2271871-1

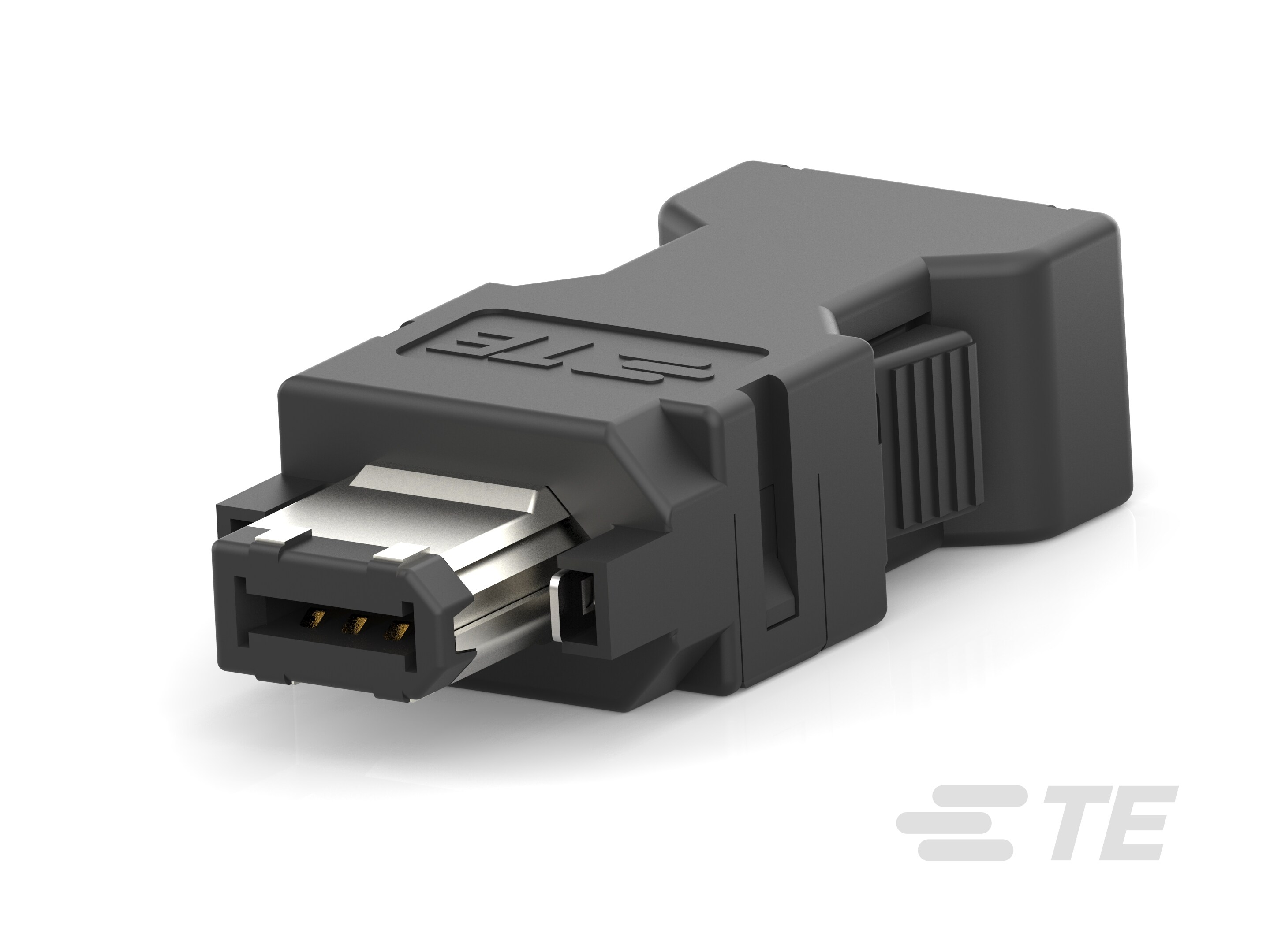

- TE Internal Description: INDUSTRIAL 1394 6T PLUG CONNECTOR
-
Number of Positions : 6
-
Connector & Housing Type : Plug
-
Connector System : Cable-to-Panel
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Connector & Contact Terminates To : Wire & Cable
Documents
Product Drawings
- INDUSTRIAL 1394 6T PLUG CONNECTOR ENG_CD_2271871_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2271871-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2271871-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2271871-1_A.3d_igs.zip English
- ENG_CVM_CVM_2271871-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-137374_A.pdf English
- Product Specification ENG_SS_108-106127_A_108-106127.pdf English
Product And Material Test Reports
- Industrial 1394 series connector ENG_PMTR_501-106127_A_501-106127.pdf English
