BMC2AY0300AG

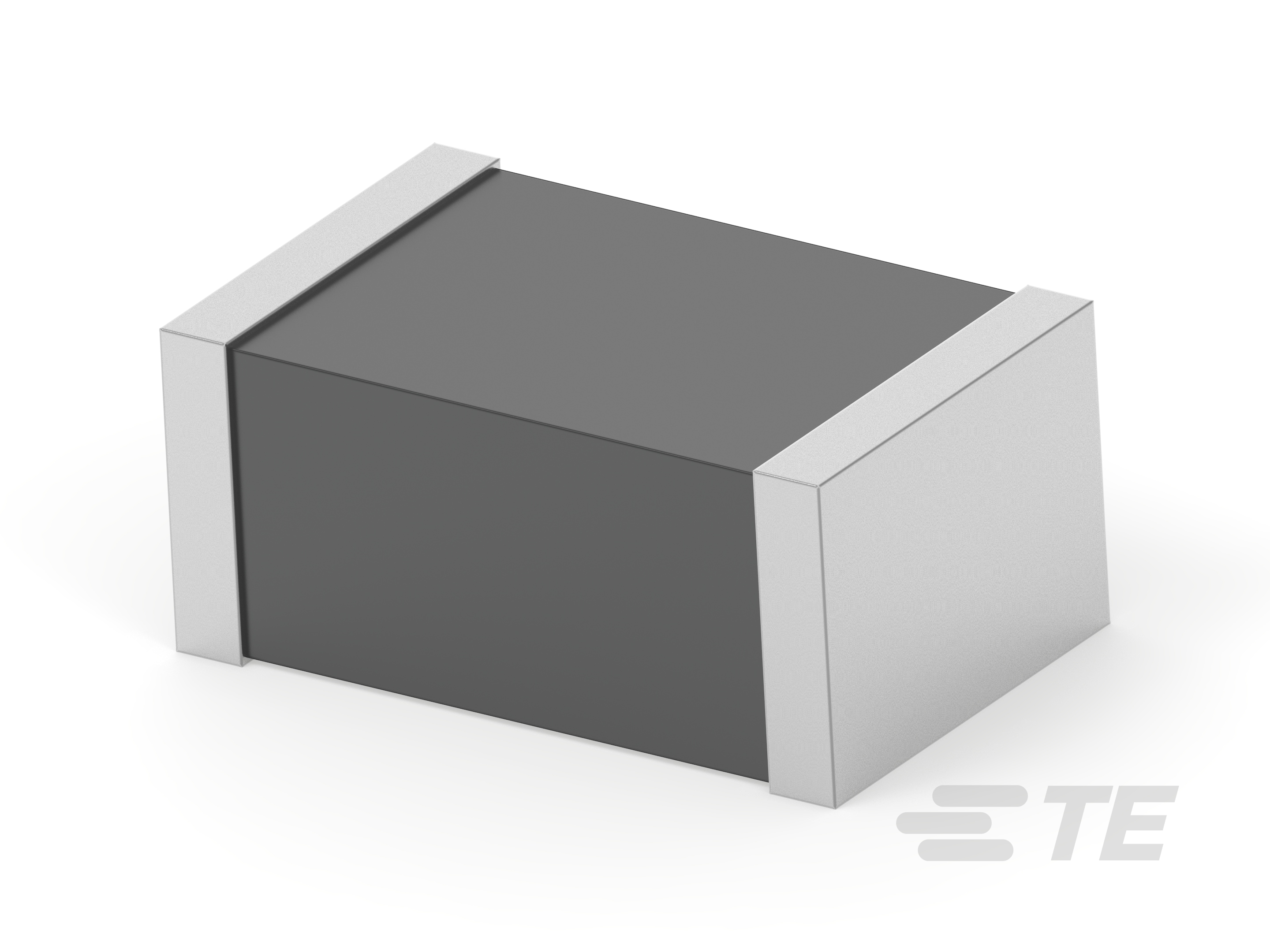

300 ohm Multilayer Ferrite Bead, 3000 mA, .05 ohm DC Resistance, 0805, 2 mm [.078 in] Length, 1.25 mm [.049 in] Width, Sigma BMC
BMC2AY0300AG
300 ohm Multilayer Ferrite Bead, 3000 mA, .05 ohm DC Resistance, 0805, 2 mm [.078 in] Length, 1.25 mm [.049 in] Width, Sigma BMC
-
- Sigma
- Sigma BMC
- TE Internal #: 2176487-1
- TE Internal Description: BMC 0805 300R 25% A Med C
- All Multilayer Ferrite Bead: DCR<1.5Ω, Current<800mA BMC Series (96)
-
Impedance (Ω): 300
-
Current Rating (Max) (mA): 3000
-
DC Resistance (Ω): .05
-
Package Size Code : 0805
-
Product Length : 2 mm [ .078 in ]
Documents
Product Drawings
- Multilayer Ferrite Beads Type BMC0805 AG configuration ENG_CD_2176487_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2176487-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2176487-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2176487-1_A.3d_igs.zip English
- ENG_CVM_CVM_2176487-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- Multilayer Ferrite Beads - Type BMC Series - Frequency Graphs ENG_DS_1773178-2_A.pdf English
- Multilayer Ferrite Beads - Type BMC Series ENG_DS_1773178-1_B.pdf English
- BMC Series Multilayer Ferrite Beads ENG_DS_cs-bmc-multilayer-ferrite-beads_2204.pdf English
