Please review product documents or contact us for the latest agency approval information.

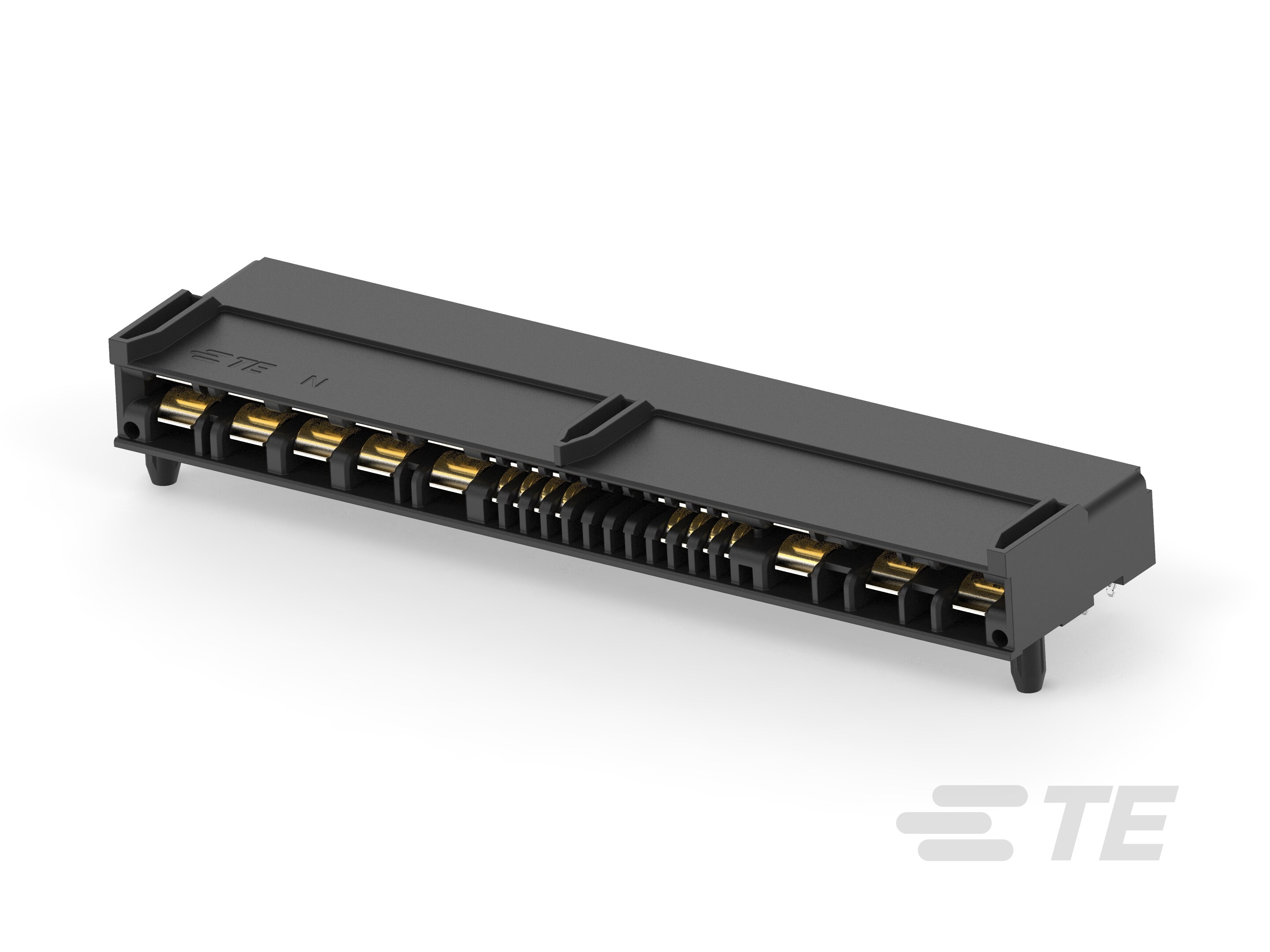

• Connector & Housing Type : Receptacle

• Connector & Contact Terminates To : Printed Circuit Board

• Connector System : Board-to-Board

• Number of Positions : 32

• Number of Power Positions : 16

• Number of Signal Positions : 16

• Operating Voltage (VAC): 300

• Operating Voltage (VDC): 60

• Operating Voltage (V): 300

• Primary Product Color : Black

• Contact Mating Area Plating Material Thickness : .05 µm [ 1.96 µin ]

• Contact Type : Socket

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 60

• Contact Mating Area Plating Material : Gold (Au)

• Termination Method to PCB : Through Hole - Press-Fit

• PCB Mount Retention : With

• Connector Mounting Type : Board Mount

• Housing Material : Thermoplastic Glass Reinforced

• Centerline (Pitch) (mm): 2, 6.84, 8.24

• Centerline (Pitch) (in): .118, .27, .324

• Power Contact Centerline : 8.24 mm [ .32 in ]
