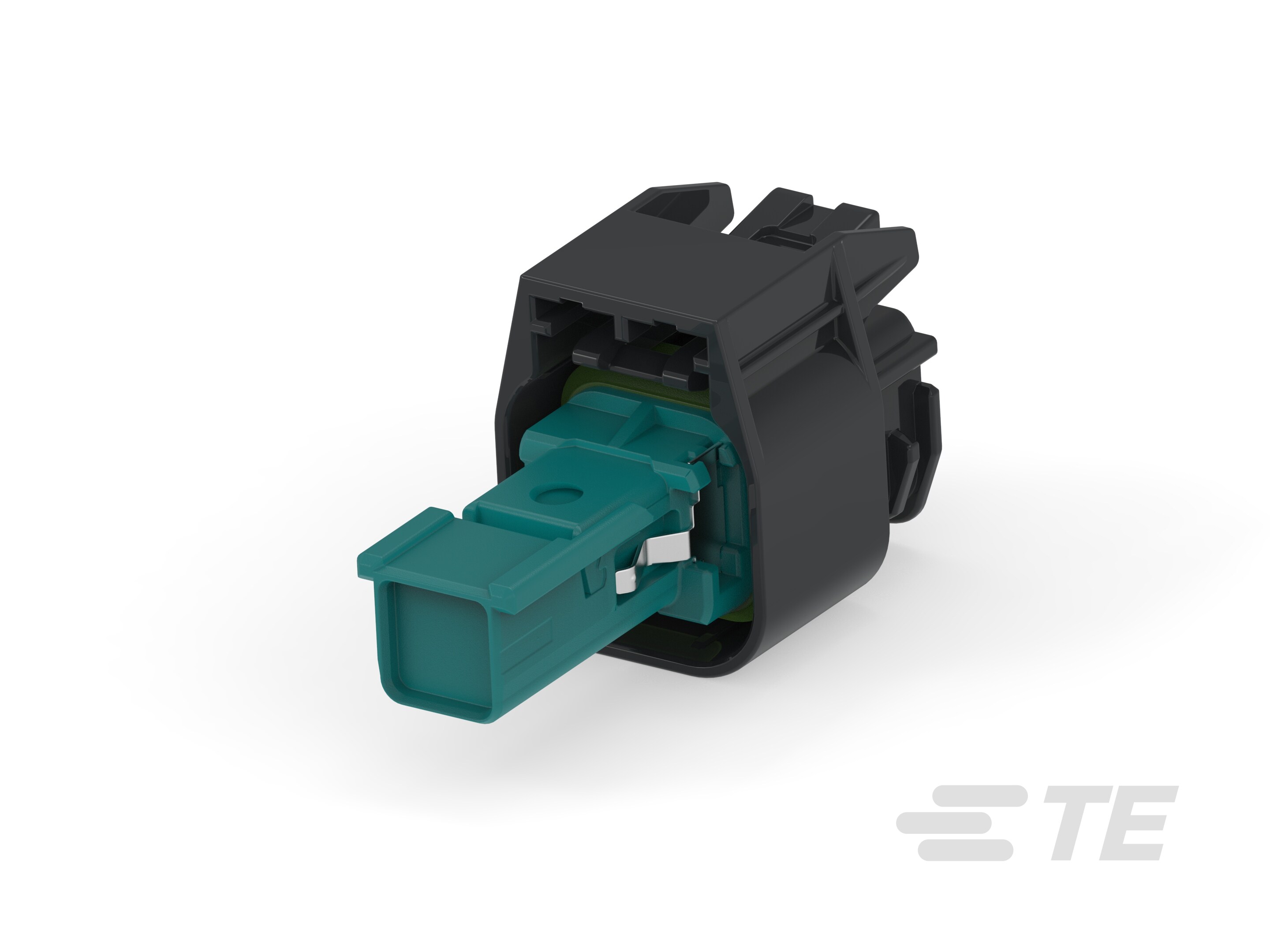

Name: 1PORT,MATENET,REC HSG,SLD,COD Z,STP,ASSY
Brand: MATEnet

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Mixed & Hybrid Connector : No
Connector & Contact Terminates To : Wire & Cable
Connector System : Cable-to-Board, Cable-to-Cable
Sealable : Yes
Connector & Housing Type : Housing for Female Terminals

Configuration Features

Snap-Lock : With
Number of Positions : 1

Electrical Characteristics

Impedance (Ω): 100

Signal Characteristics

Operating Frequency Range (MHz): 0 – 600

Body Features

Ferrule : Without
Cable Exit Angle : 180°
Connector & Keying Code : Z

Contact Features

Mating Tab Width : .5 mm [ .02 in ]
Mating Tab Thickness : .4 mm [ .016 in ]

Termination Features

Termination Method to Wire & Cable : Crimp

Mechanical Attachment

Mating Retention : Without
Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features

Housing Color : Blue
Centerline (Pitch) : 1.8 mm [ .071 in ]

Dimensions

Connector Height : 11.4 mm [ .45 in ]
Product Length : 17.45 mm [ .687 in ]

Usage Conditions

Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105
Operating Temperature (Max) (°F): 221
Cable Type : STP
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

Shielded : No
Circuit Application : Signal

Packaging Features

Packaging Method : Bag & Box

1802113-9

Cable-to-Board / Cable-to-Cable, Sealable, 180° Cable Exit, 1 Position, Z Code, Housing for Female Terminals, Data Connectivity Housings

1802113-9

Cable-to-Board / Cable-to-Cable, Sealable, 180° Cable Exit, 1 Position, Z Code, Housing for Female Terminals, Data Connectivity Housings

Connector System : Cable-to-Board, Cable-to-Cable

Sealable : Yes

Cable Exit Angle : 180°

Number of Positions : 1

Connector & Keying Code : Z
