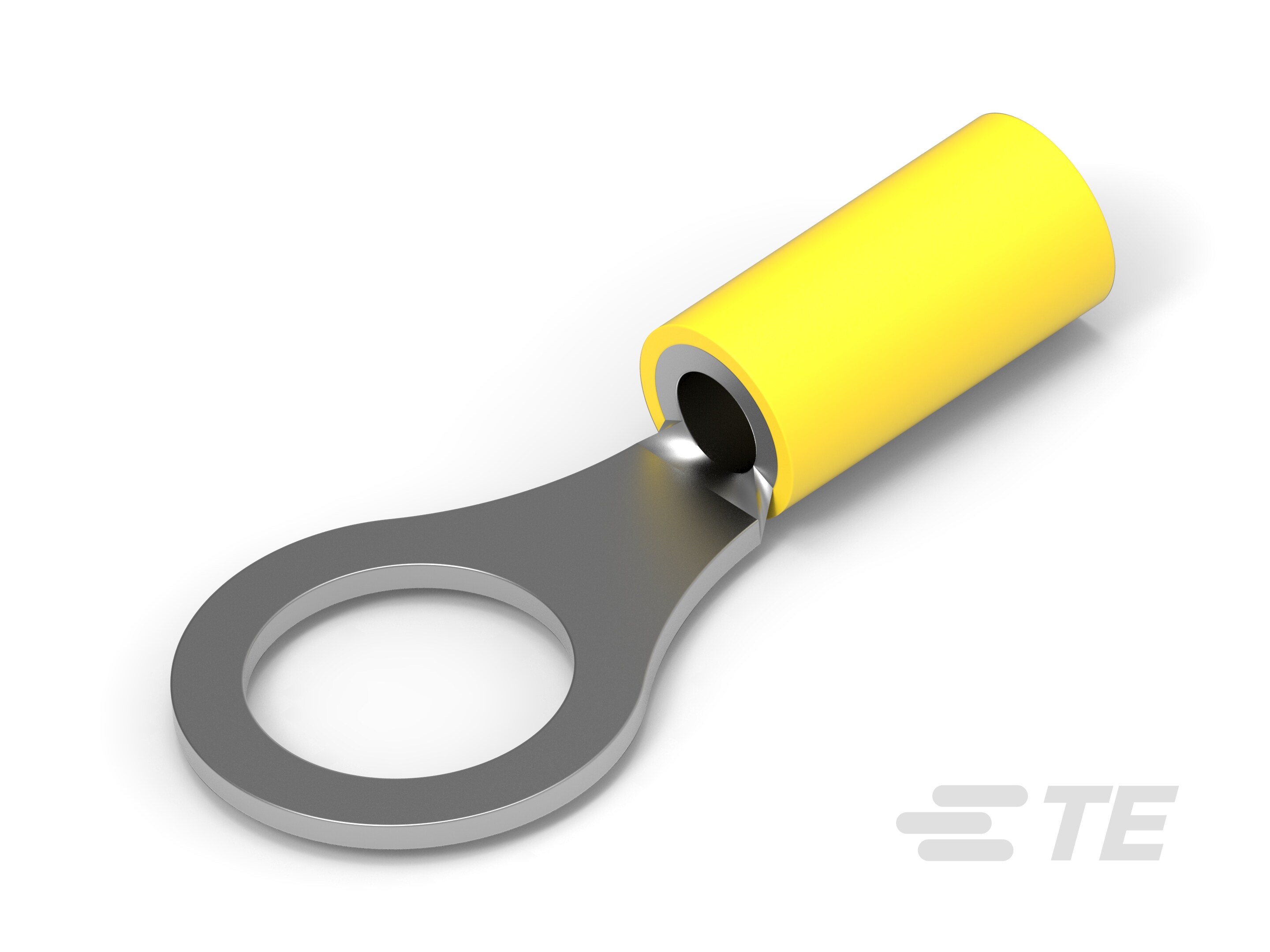

Closed Ring Tongue Terminal, 12 – 10 AWG, M10 Stud, 10.4 mm [.409 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
160300
Closed Ring Tongue Terminal, 12 – 10 AWG, M10 Stud, 10.4 mm [.409 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 160300
- TE Internal Description: PLASTI-GRIP 12-10 RING M10
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 3 – 6
-
Wire Size (CMA): 5180 – 13100
-
Stud Size : M10
