Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

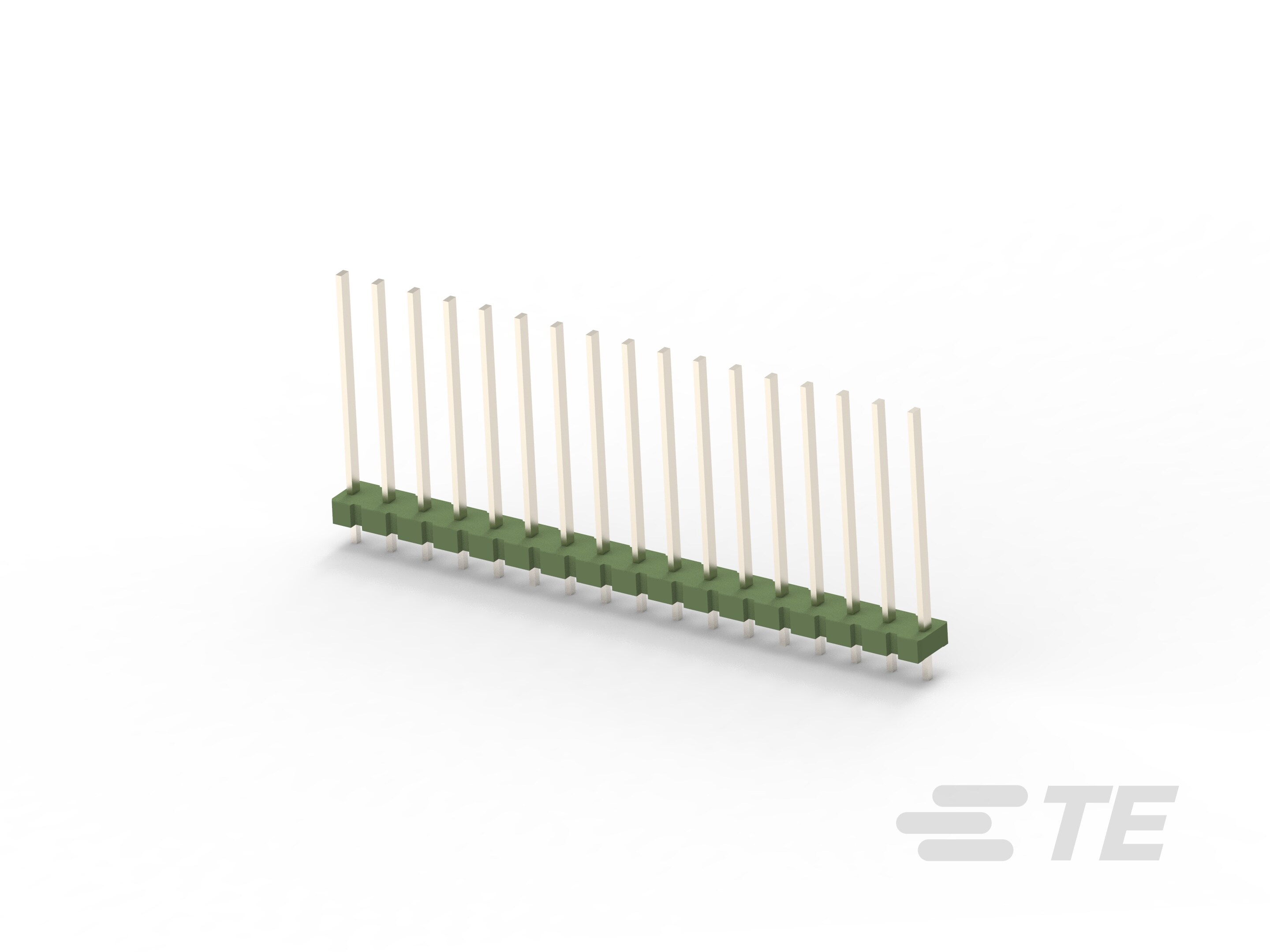

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Header Type : Unshrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Parallel

• PCB Mount Orientation : Vertical

• Number of Positions : 17

• Number of Rows : 1

• Contact Mating Area Plating Material Thickness : 2.5 – 5 µm [ 98.65 – 196.85 µin ]

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 5

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : PBTP GV

• Centerline (Pitch) : 5.08 mm [ .2 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94V-0
